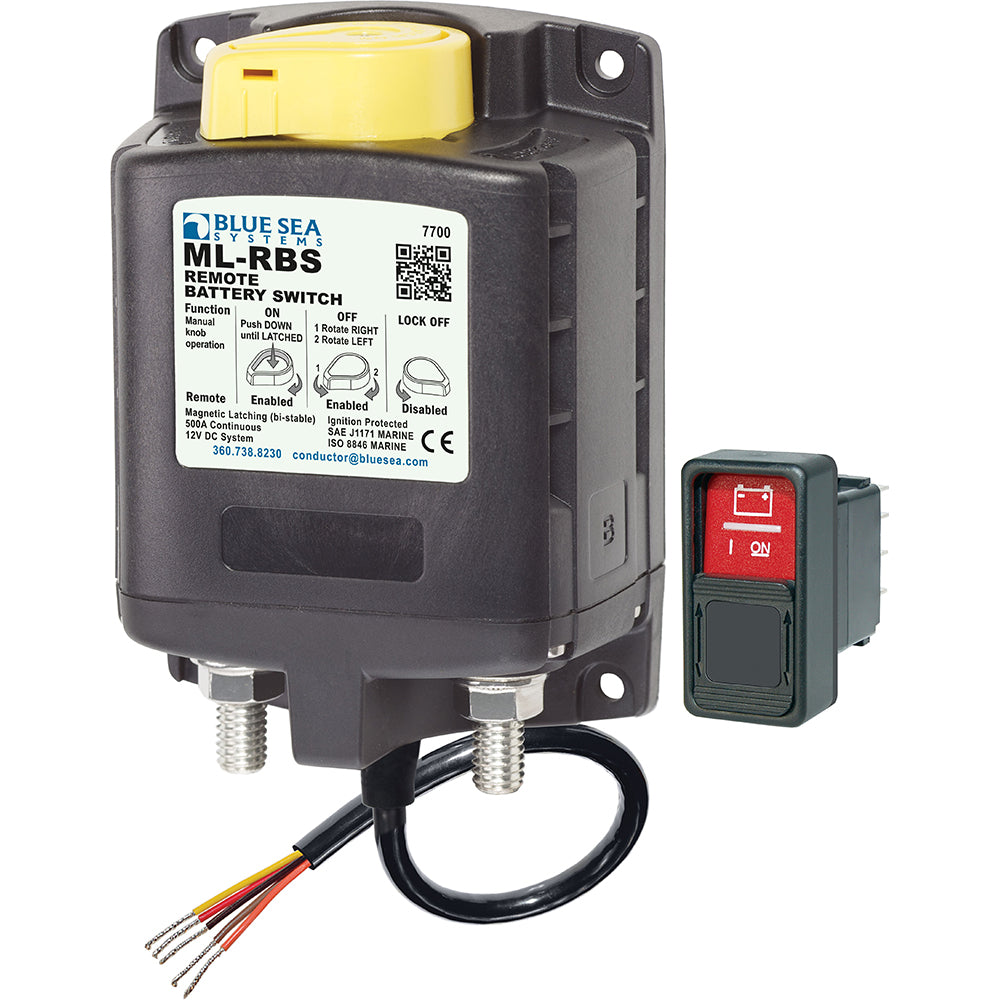

Blue Sea 7700 ML-Series Remote Battery Switch w/Manual Control 12VDC

500 Ampere magnetic latching switch provides high amperage switching under load, manually or from remote locations.

Blue Sea 7700BSS Attributes

• Type: Push/ Pull
• Activation Type: Manual
• Continuous Ampere Rating (A): 500 Amp
• Surge Ampere Rating (A): 700 Amp
• Installation Type: Bolt-On

Blue Sea 7700BSS Features & Benefits

• Manual Override Knob Provides An Added Level Of Safety Allowing Control With Or Without Power And Offering LOCKED OFF Capability For Servicing
• LED Output To Remotely Indicate Switch State
• 3/8 Inch -16 Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• 7/8 Inch Stud Length Accepts Multiple Cable Terminals
• Label Recesses For Circuit Identification
• Silver Alloy Contacts Provide High Reliability For Switching Live Loads
• No Supplier Warranty

Blue Sea 7700BSS Installation Instructions

• 990180170-006.pdf

7700

• Includes ML-Series Remote Control Contura Switch 2145

• Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing

• 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine

• Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch

• Silver alloy contacts provides high reliability for switching live loads

• 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance

• 7/8" (22mm) stud length accepts multiple cable terminals

• Label recesses for circuit identification


WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The manual control switch provides a higher level of safety, allows control in the case of power-on or power-off, and provides a "lock" function for maintenance. 500 Ampere continuous rating...
SKU: NVN-32564
MPN: 7700-BSS
UPC: 632085077006
