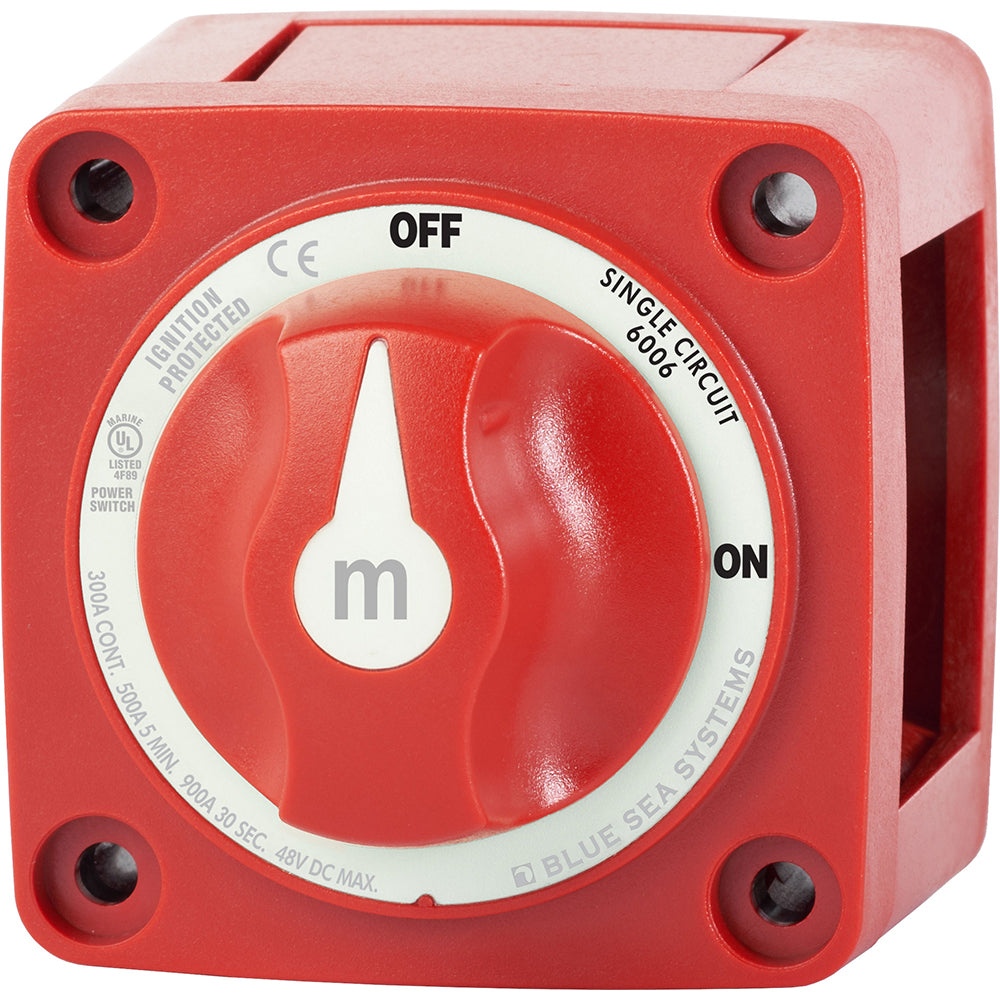

Blue Sea 6006 m-Series (Mini) Battery Switch Single Circuit ON/OFF Red

Commonly used on small boats or vehicles where the batteries are located near the operator. Blue Sea create innovative, high quality electrical products to improve the safety, simplicity, and reliability of boating.

Blue Sea 6006BSS Attributes

• Type: Single Circuit ON-OFF
• Activation Type: Manual
• Continuous Ampere Rating (A): 300 Amp
• Surge Ampere Rating (A): 900 Amp At 30 Second
• Base Diameter (IN): 2-5/16 Inch
• Installation Type: Screw-On

Blue Sea 6006BSS Features & Benefits

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Isolating Cover Protects Rear Contacts
• Breakout Tabs Allow Wire Access In Any Direction
• No Supplier Warranty

Blue Sea 6006BSS Installation Instructions

• 6006_web_version.pdf

Blue Sea 6006BSS Technical Bulletins

• 6006_web_version.pdf
• M_Switch_Knob.pdf

6006
m-Series (Mini) Battery Switch

Single Circuit ON/OFF

• Switches a single battery to a single load group

• Multiple switches can be used to manage several isolated circuits including cross conntecting for emergency paralleling

• Ignition protected - Safe for installation aboard gasoline powered boats

• Case design allows surface, front panel, or rear panel mounting

• Isolating cover with snap-on sections protects rear contacts

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals

• 7/8" (22.22mm) stud length to accept multiple cable terminals

• Ideal for marine or RV applications

• All non-corrosive marine grade metals

• Molded in durable reinforced polycarbonate

• Tactile textures indicate knob position by feel only

• Label with international ON/OFF legends

• Removable key or knob remains positively retained

• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems m series mini single loop ON/OFF battery switch with detachable knob. Compact battery switch, providing a variety of installation options.
SKU: NVN-25104
MPN: 6006-BSS
UPC: 632085060060
