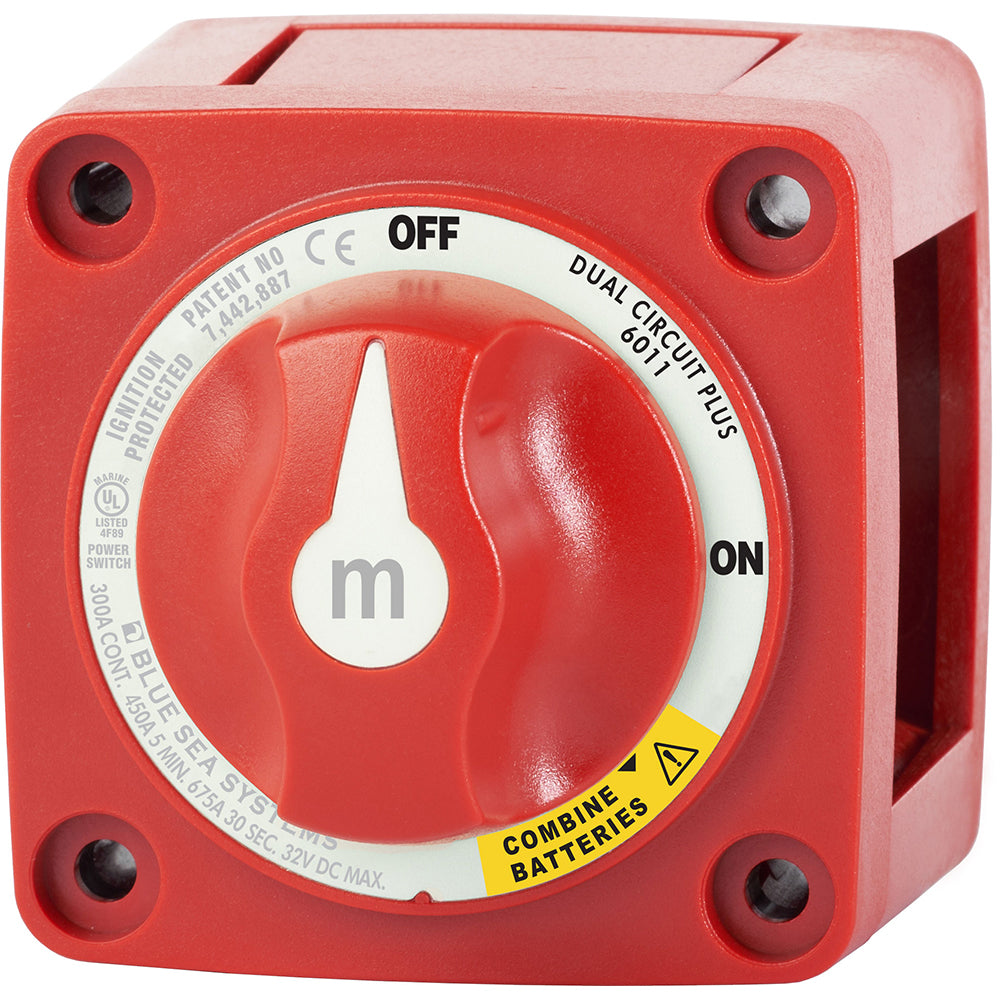

Blue Sea 6011 m-Series (Mini) Battery Switch Dual Circuit Plus

Switch Battery M DualCircPlus

Commonly used on small boats or vehicles where the batteries are located near the operator. Blue Sea create innovative, high quality electrical products to improve the safety, simplicity, and reliability of boating.

Blue Sea 6011BSS Attributes

• Used To: Simultaneously Switch Two Isolated Battery Banks/ To Combines Battery Banks To All Load
• Number Of Position: 3
• Battery Input: 2 Batteries
• Voltage Rating: 32 Volt
• Ampere Rating: 450 Amp Intermittent Rating And 300 Amp Continuous Rating
• Color: Red
• With Alternator Field Disconnect: No
• With Ignition Protection: No

Blue Sea 6011BSS Features & Benefits

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Isolating Cover Protects Rear Contacts
• Breakout Tabs Allow Wire Access In Any Direction
• No Supplier Warranty

Blue Sea 6011BSS Installation Instructions

• 6011_web_version.pdf

Blue Sea 6011BSS Technical Bulletins

• 6011_web_version.pdf
• M_Switch_Knob.pdf

6011
m-Series (Mini) Battery Switch

Dual Circuit Plus™

• Switches two battery banks simultaneously with one simple ON/OFF switch while maintaining battery bank isolation, minimizing the risk of a dead Start battery

• The "Combine Batteries" function offers the ability to combine the two battery banks in the event of a low Start battery

Features:

• Ignition protected - Safe for installation aboard gasoline powered boats

• Case design allows surface, front panel, or rear panel mounting

• Isolating cover with snap-on sections protects rear contacts

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals

• 7/8" (22.22mm) stud length to accept multiple cable terminals

• Ideal for marine or RV applications

• All non-corrosive marine grade metals

• Molded in durable reinforced polycarbonate

• Tactile textures indicate knob position by feel only

• Label with international ON/OFF legends

• Removable key or knob remains positively retained

• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"The waterproof m-Series Battery Switch is designed for switching between batteries on outboard and small inboard gasoline engines. The case features a luminous face plate and pointer and an easy-grip knob and allows surface, front panel or rear panel mounting. 3\/8\" 16 tin-plated copper studs offer maximum conductivity and corrosion-resistance. 7\/8\" stud length accepts multiple cable terminals. Ignition protected for safe installation aboard gas-powered boats. UL listed. CE marked. Waterproof to IP66. Comes with 6 ICON label sets for circuit identification. Simultaneously switches two isolated battery banks or combines battery banks to all loads. Make-before-break contact design allows switching between battery banks without power interruption."
SKU: NVN-20507
MPN: 6011-BSS
UPC: 632085060114
