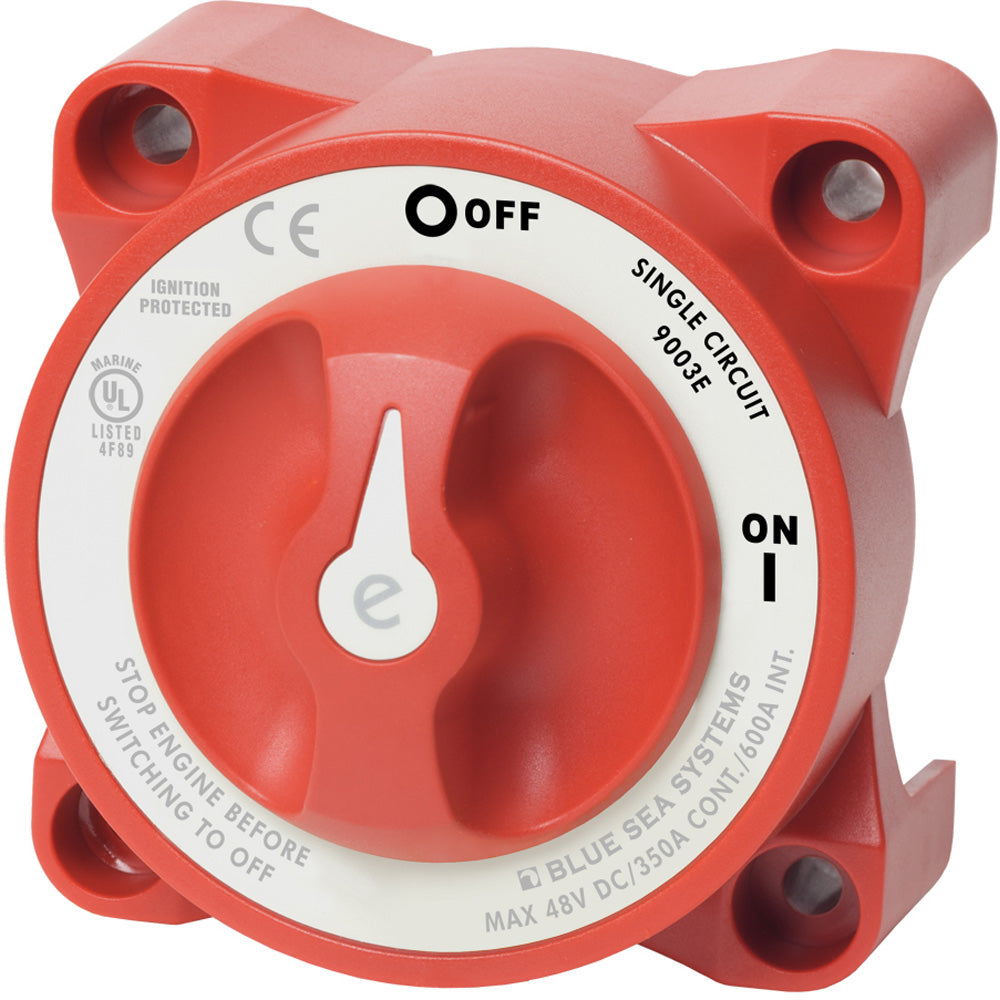

Blue Sea 9003e e-Series Battery Switch Single Circuit ON/OFF

Commonly used on small boats or vehicles where the batteries are located near the operator. Blue Sea create innovative, high quality electrical products to improve the safety, simplicity, and reliability of boating.

Blue Sea 9003EBSS Attributes

• Type: Single Circuit ON-OFF
• Activation Type: Manual
• Continuous Ampere Rating (A): 350 Ampere
• Surge Ampere Rating (A): 1200 Ampere At 30 Second
• Installation Type: Bolt-On

Blue Sea 9003EBSS Features & Benefits

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Fits Most Standard Perko And Guest Battery Switch Hole Patterns
• Tactile Indicator Conveys Knob Position By Feel
• No Supplier Warranty

Blue Sea 9003EBSS Installation Instructions

• 9003e_web_version.pdf

9003e e-Series Battery Switch Single Circuit ON/OFF

Features:

• CE Marked
• Ignition protected - Safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
• 7/8" (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems' E series single-circuit 2-position red battery switch (9003E) can switch the isolated battery pack to all loads or combine the battery pack to all loads. What can...
SKU: NVN-16088
MPN: 9003E-BSS
UPC: 632085900359
