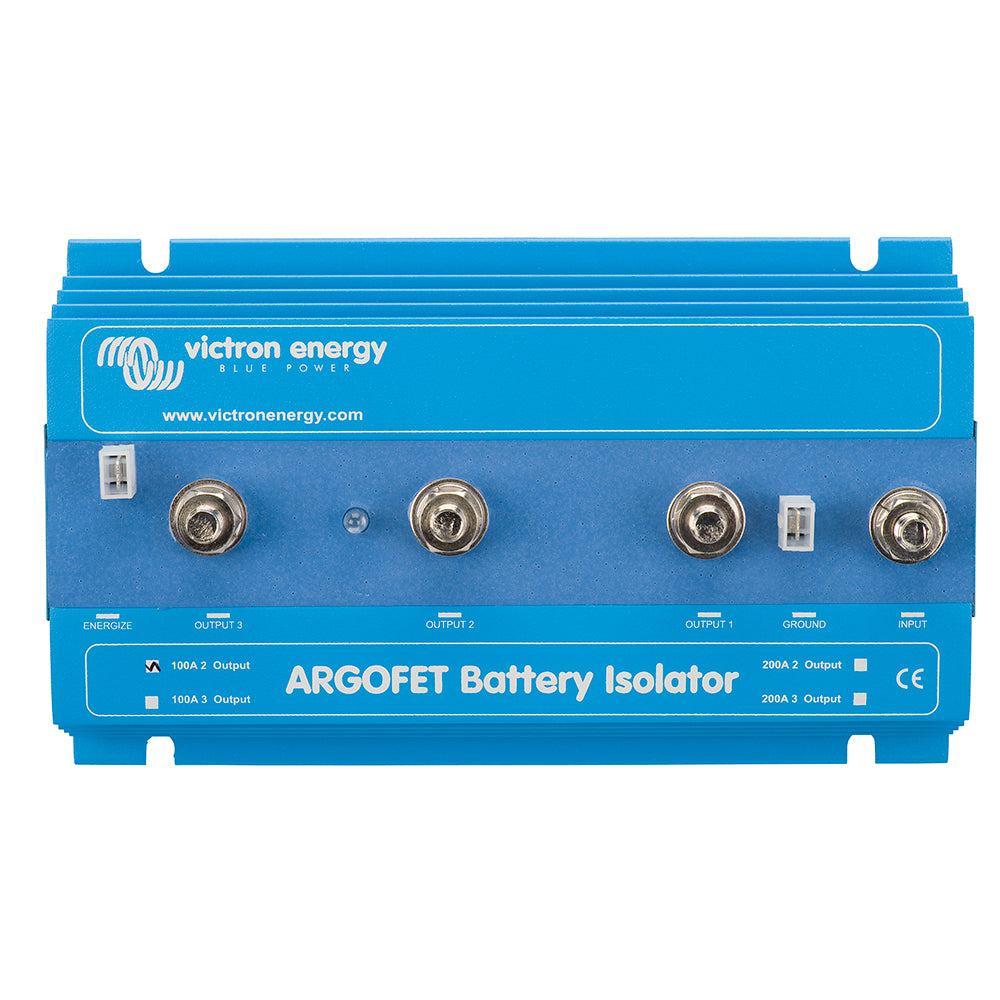

Victron Argo FET Battery Isolator - 100AMP - 2 Batteries
Victron Argo FET Battery Isolator - 100AMP - 2 Batteries — Product description
Low loss FET based battery isolator with one input and two outputs 100 Amp max rating.
Like diode battery isolators, FET isolators allow simultaneous charging of two or more batteries from one alternator without connecting the batteries together. So discharging the accessory battery will not result in also discharging the starter battery. This isolator allows simultaneous charging of three battery banks. In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents. When using ARGO FET Battery Isolators, there is no need to also increase the output voltage of the alternator. Some alternators require a B+ voltage at a terminal in order to start charging and this isolator has a special dedicated connection for that purpose. Battery isolators may not be the best way to go if you are designing a new system, but if you want to upgrade an existing system and don't wish to do a total rewiring job then using this Argofet low loss isolator is a practical and economical way to go
Argo FET Battery Isolator - 100AMP - 2 Batteries
Similarly to diode battery isolators, FET isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents.
Please contact your dealer for any returns, repairs or support issues related to this product.Argo FET battery isolator-100AMP-2 batteries are similar to diode battery isolator, FET isolator allows two or more batteries to be charged simultaneously from one alternator (...
- For 12 or 24 Volt systems
- Maximum charge current 100 Amps
- Two independent outputs for two battery banks
- Dimensions 2.6" x 4.7" x 7.9"
- Five year manufacturer's warranty
SKU: NVN-82890
MPN: ARG100201020
UPC: 8719076019022
Technical specifications
| Brand | Victron Energy |
| Model | Victron Argo FET Battery Isolator - 100AMP - 2 Batteries |
| SKU / MFR# | 82890 |
Set product metafields under specs.* to populate this table.
