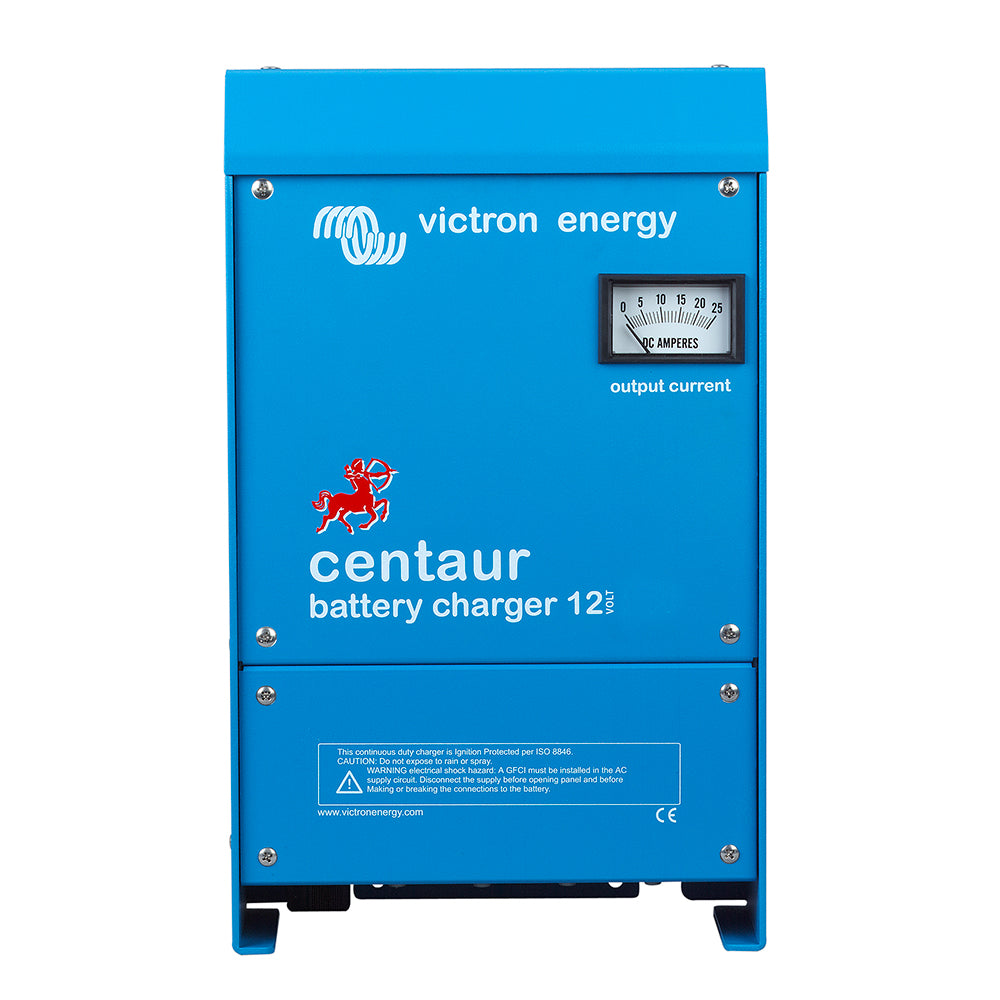

Victron Centaur Charger - 12 VDC - 80AMP - 3-Bank Marine Battery Charger
Professional-Grade Multi-Bank Charging for Serious Marine Applications
The Victron Centaur CCH012080000 delivers uncompromising performance for marine electrical systems demanding reliable, multi-bank battery charging. This professional-grade 80-amp charger simultaneously charges three separate 12V battery banks while withstanding the harshest marine environments through robust aluminum construction and advanced corrosion protection.
Engineered for worldwide compatibility with auto-ranging 90-265VAC input, this charger maintains full output power across the entire voltage range - a critical advantage over competitors that compromise performance at voltage extremes. Whether powering house batteries, engine start banks, or bow thruster systems, the Centaur ensures optimal charging performance in any configuration.
Marine-Engineered Features
Triple-Bank Independent Charging
Three completely isolated outputs each capable of delivering the full 80-amp capacity. Simultaneously charge house batteries, start battery, and auxiliary systems without cross-interference or voltage drop between banks.
Professional Three-Stage Charging
Advanced bulk-absorption-float charging algorithm with automatic temperature compensation (-2mV/°C per cell) ensures complete charging cycles. DIP switch selection optimizes charge profiles for flooded lead-acid, AGM, or gel batteries.
Marine Environment Protection
Aluminum epoxy powder-coated housing with integrated drip shield and stainless steel mounting hardware. Acrylic-coated circuit boards provide maximum corrosion resistance against salt air and humidity.
Universal Input Compatibility
Auto-ranging 90-265VAC input (50/60Hz) maintains full power output worldwide. Also accepts 90-400VDC input for diesel-electric vessel applications or DC-to-DC charging scenarios.
Technical Specifications
| Model Number: | CCH012080000 |
| Output Voltage: | 12V DC |
| Output Current: | 80 Amps (per bank) |
| Charging Banks: | 3 Isolated Outputs |
| AC Input Range: | 90-265V AC, 50/60Hz |
| DC Input Range: | 90-400V DC |
| UPC Code: | 8719076021520 |
| Manufacturer: | Victron Energy |
Advanced Charging Technology
Intelligent Three-Stage Process
- Bulk Stage: Maximum current delivery until batteries reach 70% charge acceptance
- Absorption Stage: Four-hour timer ensures complete charging without overcharge
- Float Stage: Maintains batteries at optimal voltage for long-term storage
Temperature Compensation
Internal temperature sensor automatically adjusts charging voltage at -2mV/°C (-1mV/°F) per cell, preventing overcharging in hot conditions and ensuring adequate charging in cold environments.
Battery Chemistry Optimization
Selectable charge profiles via DIP switch accommodate flooded lead-acid, AGM, and gel batteries with manufacturer-recommended voltage settings for maximum battery life.
Installation & Compatibility
Mounting Requirements
- Marine-grade aluminum construction with stainless steel mounting hardware
- Integrated drip shield protects against moisture ingress
- Requires adequate ventilation for thermal management
- Temperature sensors prevent overheating with automatic current reduction
System Integration
- Compatible with all 12V marine battery systems
- Ideal for house/start/thruster battery configurations
- Analog output current meter for monitoring charge status
- Works as AC-DC or DC-DC converter in diesel-electric systems
Compliance & Certifications
- CE Marking: Compliant for European marine applications
- UL Listed: Approved for United States installations
- ISO 9001: Quality management system certification
- Russian River Boat Register: Commercial vessel approval
- RoHS Compliant: Environmentally responsible manufacturing
Marine Applications
- Cruising sailboats with house/start battery separation
- Motor yachts requiring multiple battery bank management
- Commercial vessels with bow thruster systems
- Diesel-electric propulsion system DC-DC conversion
- Marina dock-side battery maintenance and conditioning
- Emergency backup power system charging
Warranty & Support
Backed by Victron Energy's comprehensive 5-year limited warranty, the Centaur Charger represents a long-term investment in reliable marine power management. Professional installation recommended for optimal performance and warranty compliance.
Important: Contact your authorized Victron dealer for returns, repairs, or technical support. Professional marine electrician installation ensures compliance with ABYC standards and optimal system performance.
Frequently Asked Questions
Can this charger handle different battery types on separate banks?
No, the DIP switch settings apply to all three banks simultaneously. All connected batteries should be the same chemistry (flooded, AGM, or gel) for optimal performance. For mixed battery types, consider separate single-bank chargers.
What size batteries can this 80-amp charger handle?
The 80-amp output is suitable for battery banks from 200Ah to 800Ah capacity. For optimal charging, battery bank capacity should be 2.5 to 10 times the charger output rating. Larger banks will charge more slowly but safely.
Is this charger suitable for lithium batteries?
The Centaur is designed for lead-acid chemistry batteries (flooded, AGM, gel). For lithium battery applications, consider Victron's Phoenix Smart or Blue Smart chargers specifically engineered for lithium charging profiles.
Can I use this charger with solar panels or wind generators?
The Centaur works alongside other charging sources. However, ensure proper isolation to prevent interference between charging systems. Consider a Victron Battery Monitor to track total system performance with multiple charging sources.
What maintenance does this charger require?
Minimal maintenance required. Periodically inspect mounting hardware for corrosion, ensure adequate ventilation around the unit, and verify connection tightness. The acrylic-coated circuit boards resist corrosion in marine environments.
