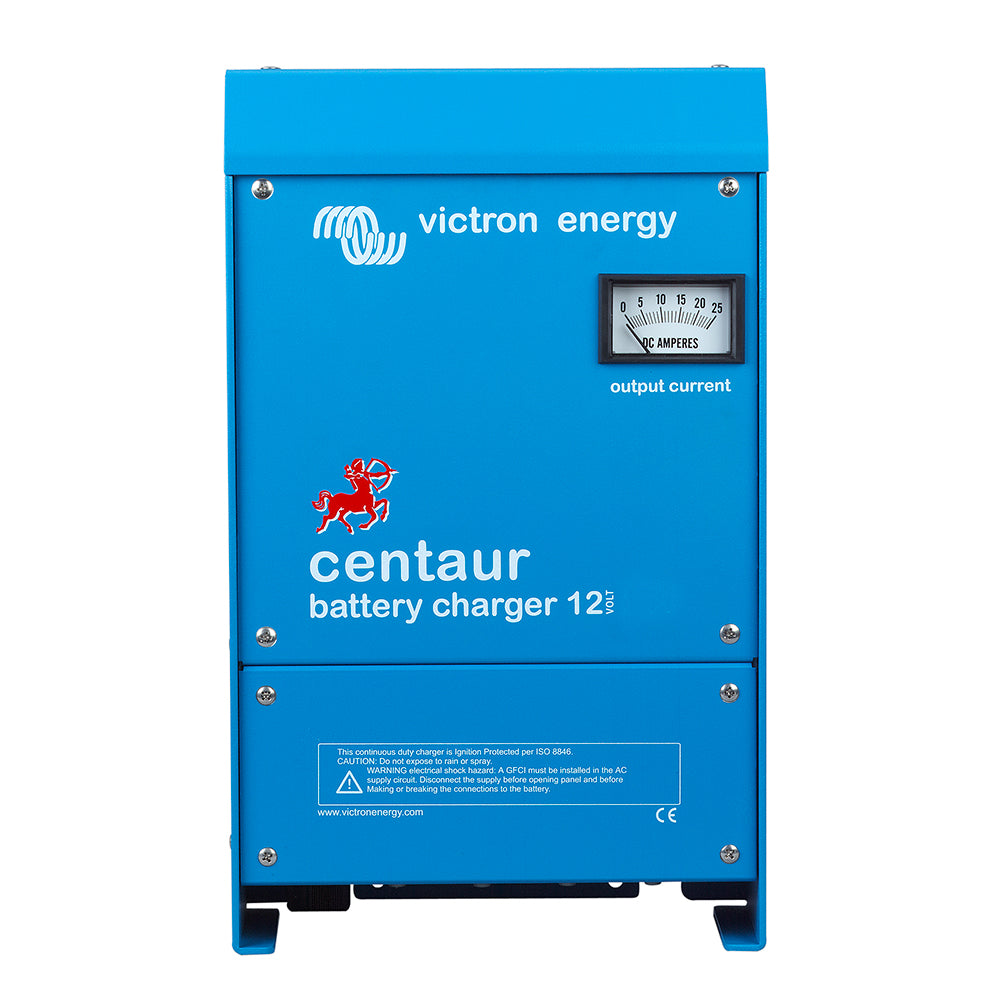

Victron Centaur Marine Battery Charger - 12V 60A 3-Bank Universal Input

Professional-Grade Multi-Bank Charging System for Serious Boaters

Transform your vessel's electrical system with the Victron Centaur CCH012060000 - a robust 60-amp, 3-bank marine battery charger engineered for demanding marine environments. This professional-grade charger delivers intelligent, simultaneous charging to three separate battery banks while adapting to worldwide power standards, making it the ultimate charging solution for cruisers, commercial vessels, and serious recreational boaters.

Built to Victron Energy's legendary quality standards, this charger combines universal voltage compatibility, advanced temperature compensation, and marine-grade construction to ensure reliable power management in the harshest marine conditions.

Why Choose the Victron Centaur 3-Bank Charger?

🔋 Triple-Bank Power Distribution

Simultaneously charge three separate battery banks with full 60-amp capacity available to each bank. Perfect for house batteries, engine starting batteries, and generator batteries - all charging independently with optimal profiles.

🌍 Universal Voltage Compatibility

Operates flawlessly on 90-265V AC (50/60Hz) or 90-400V DC input, maintaining full output power across the entire range. Cruise anywhere in the world without voltage concerns or power adapters.

🧠 Intelligent 3-Stage Charging

Advanced bulk-absorption-float charging algorithm with precision temperature compensation (-2mV/°C per cell) ensures optimal battery life and performance across all battery chemistries.

⚓ Marine-Grade Durability

Aluminum epoxy powder-coated housing with drip shield and stainless steel fixings withstands saltwater spray, humidity, and temperature extremes. PCBs feature acrylic coating for maximum corrosion resistance.

Technical Specifications

Electrical Specifications

• Output Voltage: 12V DC
• Output Current: 60 Amps total (full current available per bank)
• Charging Banks: 3 isolated outputs
• Input Voltage: 90-265V AC (50/60Hz) or 90-400V DC
• Power Factor: >0.98
• Efficiency: >85%

Charging Performance

• Charging Algorithm: 3-stage (Bulk-Absorption-Float)
• Temperature Compensation: -2mV/°C (-1mV/°F) per cell
• Battery Types: Flooded Lead-Acid, Gel, AGM (DIP switch selectable)
• Float Voltage: 13.2V (adjustable)
• Absorption Voltage: 14.4V (adjustable)

Construction & Environmental

• Housing: Aluminum epoxy powder coated
• Protection Rating: IP21 (drip shield included)
• Operating Temperature: -40°C to +60°C
• Humidity: Max 95% non-condensing
• Fixings: Stainless steel marine-grade hardware

Installation & Operational Features

Smart Monitoring & Control

• Analog output current gauge for real-time charging status
• Internal temperature sensor for automatic voltage adjustment
• DIP switches for battery type optimization
• LED status indicators for each charging bank
• Automatic current reduction under extreme conditions

Professional Installation Ready

• Compact design fits standard marine electrical panels
• Multiple mounting orientations supported
• Clear terminal labeling and wiring diagrams
• Isolated outputs prevent cross-contamination between banks
• Built-in thermal protection and current limiting

Ideal Applications

🛥️ Cruising Sailboats

House bank, engine battery, and windlass battery charging with shore power or generator input

🚤 Motor Yachts

Multiple engine banks, house systems, and bow thruster batteries

🎣 Commercial Fishing

Electronics, engine starting, and hydraulic system batteries

⚓ Marina Applications

Multi-slip charging stations and dock power systems

Battery Compatibility & Optimization

The Victron Centaur automatically adapts to your battery chemistry through precision DIP switch settings:

🔋 Flooded Lead-Acid

Optimized charging profile for traditional wet cell batteries with proper gassing voltage control

🔋 AGM Batteries

Precise voltage regulation prevents overcharging while ensuring complete capacity restoration

🔋 Gel Batteries

Lower voltage charging profile protects gel electrolyte while maximizing battery life

Safety & Compliance

• Marine Standards: Designed and tested for marine environments
• Temperature Protection: Automatic current reduction prevents overheating
• Reverse Polarity Protection: Built-in safeguards prevent connection errors
• Short Circuit Protection: Individual bank protection with automatic recovery
• EMC Compliance: Minimal electrical interference with navigation electronics
• Quality Assurance: Victron Energy's renowned European engineering standards

Warranty & Professional Support

Backed by Victron Energy's comprehensive 5-year limited warranty and global support network. This charger represents a long-term investment in reliable marine electrical systems, with proven durability in the world's most challenging marine environments.

Professional installation recommended for optimal performance and warranty coverage. Consult certified marine electrical technicians for complex multi-bank installations.

Frequently Asked Questions

Can this charger work with different battery types on separate banks?

Yes, while the DIP switches set the charging profile globally, each bank operates independently. However, for optimal performance with mixed battery chemistries, consider using separate chargers or Victron's smart charging systems that allow individual bank programming.

Will this charger work on both 120V and 240V shore power?

Absolutely. The universal input accepts 90-265V AC automatically, making it perfect for international cruising. No voltage selection switches needed - it adapts automatically while maintaining full 60-amp output.

How does the temperature compensation work?

The internal temperature sensor automatically adjusts charging voltage at -2mV/°C (-1mV/°F) per cell. This prevents overcharging in hot conditions and ensures adequate charging in cold weather, significantly extending battery life.

Can I use this as a DC-to-DC converter for engine alternator charging?

Yes, the 90-400V DC input capability allows operation as a DC-DC converter. This makes it excellent for charging house banks from engine alternators or generator DC output with proper electrical isolation.

What size batteries can this charger handle?

The 60-amp output is suitable for battery banks from 200Ah to 1200Ah depending on usage patterns. For optimal charging speed, size the charger at 10-20% of your total battery capacity (C/10 to C/5 charging rate).

Is professional installation required?

While not mandatory, professional installation by ABYC-certified marine electricians is strongly recommended for safety, proper grounding, and warranty coverage. High-current marine electrical work requires expertise in marine electrical standards and safety protocols.

Centaur Charger - 12 VDC - 60AMP - 3-Bank - 120-240 VAC

Features:

• Quality without compromise -  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
• The chargers also accept a 90-400 V DC supply.
• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Warranty Info

Please contact your dealer for any returns, repairs or support issues related to this product.

"Victron energyVictron Centaur battery chargers are available in power ratings from 16A to 100A at 24V. All chargers will handle up to three battery banks and can accept AC input power of any voltage and frequency found worldwide."
SKU: NVN-82831
MPN: CCH012060000
UPC: 8719076021513
