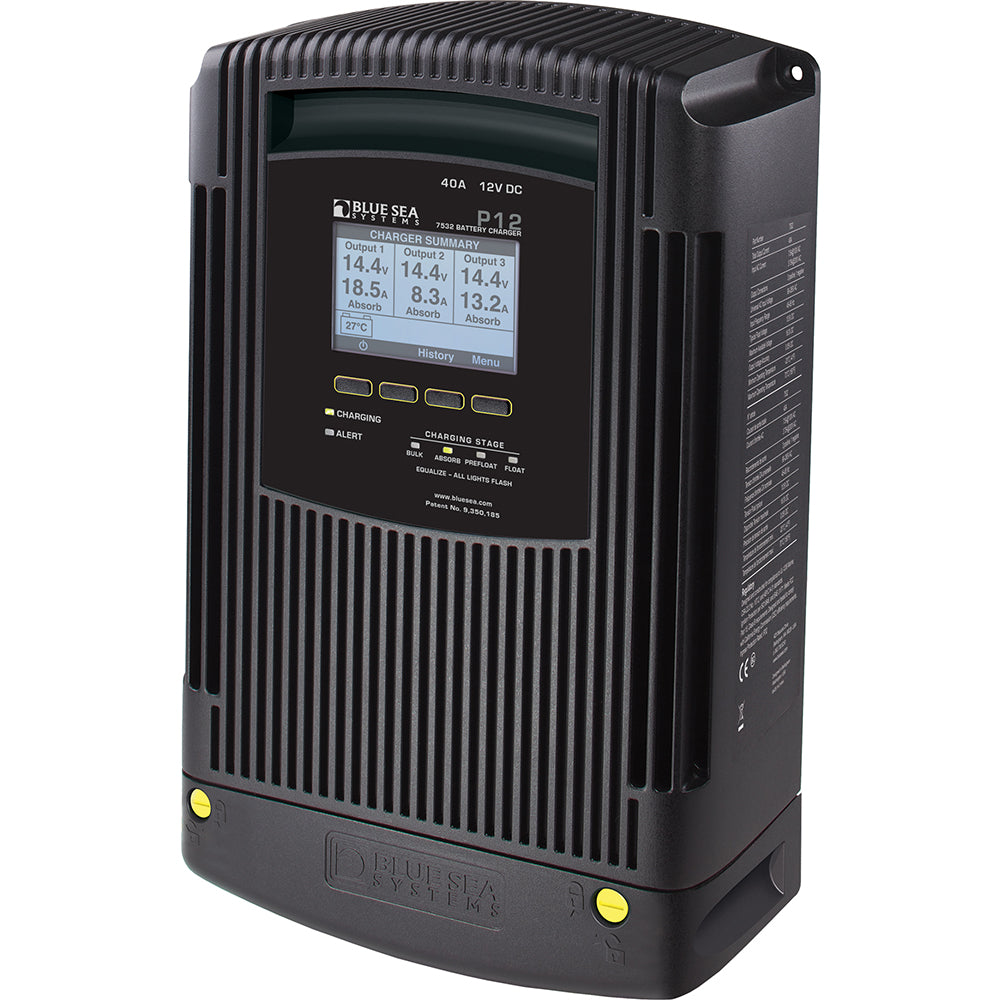

Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank

P12 Gen2 Battery Charger - 40A - 3-Bank

Features:

• Four stage, three output, dry mount design, for use in harsh environments.
• Rugged, finned aluminum case
• PreFloat™ stage prevents over charging
• Power factor corrected for efficient use of AC
• Intuitive diagnostic screens
• User defined charge profiles and customizable settings
• Provides charging for up to three battery banks
• Large, bright display
• Multi-language: English, French, German, Italian, Spanish
• Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
• Battery Temperature Compensation - adjusts charge voltage based on battery temperature
• AC over and under voltage shut down and automatic restart
• Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
• DC over voltage and reverse polarity protection
• Surge and short circuit protection

Specifications:

• Total Output Current: 40A
• Input AC Current: 7.5A @ 100V AC / 3.75A @ 200V AC
• Maximum Output Voltage: 16V DC
• Nominal Voltage: 12V DC
• Ignition Protected: Yes
• Number of Outputs: 1 negative / 3 positive
• Universal AC Input Voltage: 90-265V AC
• AC Input Frequency: 45-65Hz
• Output Voltage Accuracy: 0.05V
• Typical Float Voltage:13.5V DC
• Minimum Operating Temperature: -20° C
• Maximum Operating Temperature: 70° C
• Minimum Storage Temperature: -30° C
• Maximum Storage Temperature: 80° C
• Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)
• Recommended for Battery Bank Sizes: 440Ah Maximum Example: 4 x Group 31 / 60Ah Minimum Example: 2 x Group 31
• Warranty: 5 Year
• Height: 13.03" (330.96 mm)
• Width: 8.46" (214.88 mm)
• Depth: 3.66" (92.96 mm)
• Weight: 13.00lb (5.9 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The advanced 4-level battery charging function can charge up to 3 battery packs. Charging curves of overflow, gel, thin plate pure lead (TPPL) and absorption glass mat (AGM). Large and bright display with simple language words. Rugged aluminum case. The general line voltage is 90-265V AC. Directly replace the previous Type 7522. Four-level, three-output, dry installation design, used in harsh environments. Directly replace the previous Type 7522.
SKU: NVN-67227
MPN: 7532-BSS
UPC: 632085075323
