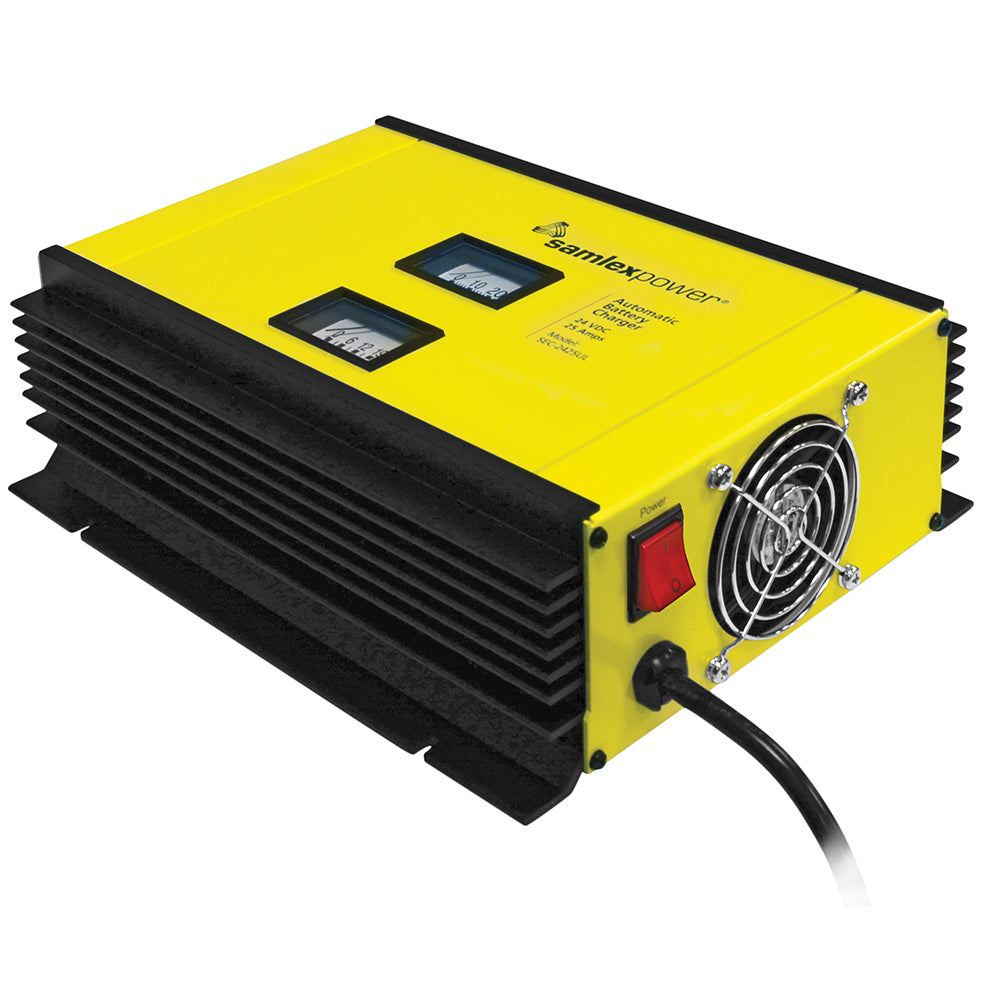

Samlex 25A Battery Charger - 24V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 25 Ampere battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 Volt, 60 Hertz or 230 Volt, 50 Hertz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit, reverse polarity and thermal overload protection. The unit allows charging of up-to 2 separate battery banks.

Samlex America SEC2425UL Attributes

• Number Of Banks: 2
• Application: 24 Volt AGM/ Flooded/ Gel Lead-Acid Batteries
• Output Voltage: 24 Volt
• Input Voltage: 120 To 230 Volt
• Ampere Rating: 25 Amp Charging
• Number Of Stages: 2/ 3 Stage
• Universality: Fully Universal
• Length (IN): 13.03 Inch
• Width (IN): 9.61 Inch
• Height (IN): 3.82 Inch

Samlex America SEC2425UL Features & Benefits

• Switch Mode Technology For High Efficiency, Lightweight And Quiet Operation
• Automatic Operation For ALL Lead Acid Batteries Flooded, AGM Or Gel Cell
• Can Charge 2 Banks Of Batteries Simultaneously, No Isolator Necessary
• Can Be Used As A Power Supply Or DC UPS When Used In Conjunction With A Battery
• Protections: Short Circuit, Overload, Reverse Battery Connection And Over Temperature
• Limited 2 Year Warranty

Samlex America SEC2425UL Installation Instructions

• 11001-SEC-1250-2425UL-0920_Hrez.pdf

Samlex America SEC2425UL Technical Bulletins

• 12001-SEC-2425UL-0920.pdf

25A Battery Charger - 24V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 25 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit, reverse polarity and thermal overload protection. The unit allows charging of up-to 2 separate battery banks.

Features:

• Switch mode technology for high efficiency, lightweight and quiet operation
• Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
• Can charge 2 banks of batteries simultaneously, no isolator necessary
• Can be used as a power supply or DC UPS when used in conjunction with a battery
• User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
• User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries
• “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
• Voltmeter and Ammeter for monitoring
• Fan cooled based on output current
• Protections: Short circuit, overload, reverse battery connection and over temperature
• Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively

Specifications:

• Input: 120 VAC or 230 VAC
• Output: 24 VDC
• Amps: 25
• Remote Control: 900-RC
• Weight: 9 (lbs)
• Weight: 4.1 (kg)
• Dimensions: 13.03 x 9.6 x 3.82 (in)
• Dimensions: 331 x 244 x 97 (mm)
• Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
• Warranty: 2 Year Limited

Applications:

• Test bench
• Automotive
• Marine
• Communications sites
• Battery back-up systems
• Hobby

Through the DIP switch setting, it can be converted to a two-stage algorithm to charge the battery connected to the DC load (DC Ups). The battery charger can be...
SKU: NVN-67192
MPN: SEC-2425UL
UPC: 622988083068
