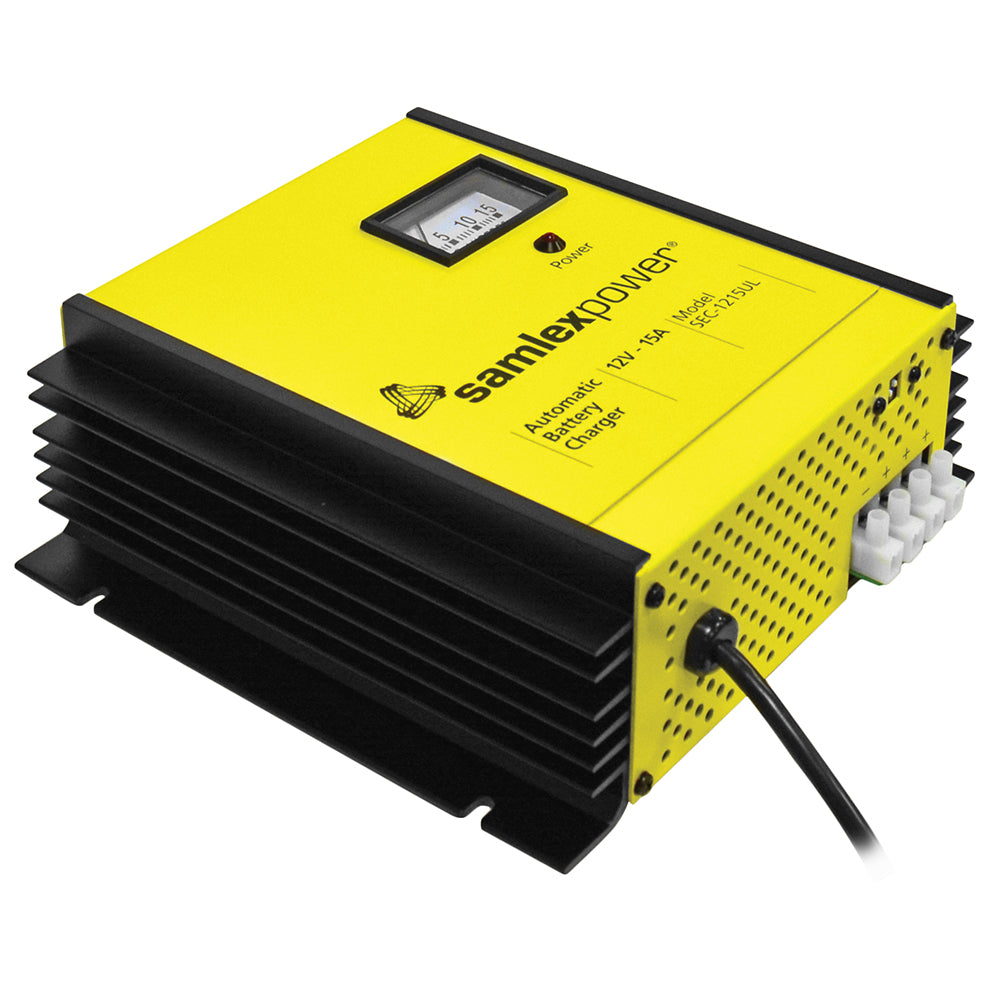

Samlex 15A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch & Lugs

15A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch & Lugs

This advanced fully automatic three-stage 15 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short-circuit protection. The unit allows charging of up-to 3 separate battery banks.

Features:

• High efficiency
• Commercial Grade
• Lightweight
• Quiet operation
• Industry Proven Design – 1000s of units in operation
• 2 or 3 stage charging (user selectable)
• 120 or 230 VAC, 50/60 Hz (user selectable)
• Voltage meter display – Ammeter and LED power status
• For all types of Lead Acid batteries
• Charge with a battery load or stand alone
• Use as a power supply or DC UPS
• UPC: Universal Protection Circuit – short circuit, overload, reverse battery polarity
• Charge 3 banks of batteries at once – no isolator necessary

Specifications:

• Input: 120 VAC 60 Hz or 230 VAC 50 Hz
• Output: 12 VDC
• Amps: 15 Amps
• Weight: 4.4 (lbs)
• Weight: 1.96 (kg)
• Dimensions: 8.5 x 8.5 x 3 (in)
• Dimensions: 21.6 x 21.6 x 7.6 (cm)
• Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
• Warranty: 2 Year Limited

Applications:

• Automotive
• Recreational vehicles
• Marine
• Communications sites
• Battery back-up systems

Through the DIP switch setting, it can be converted into a two-stage algorithm to charge the battery connected to the DC load (DC UPS). The device can also be used as a DC power supply...
SKU: NVN-67187
MPN: SEC-1215UL
UPC: 622988083013
