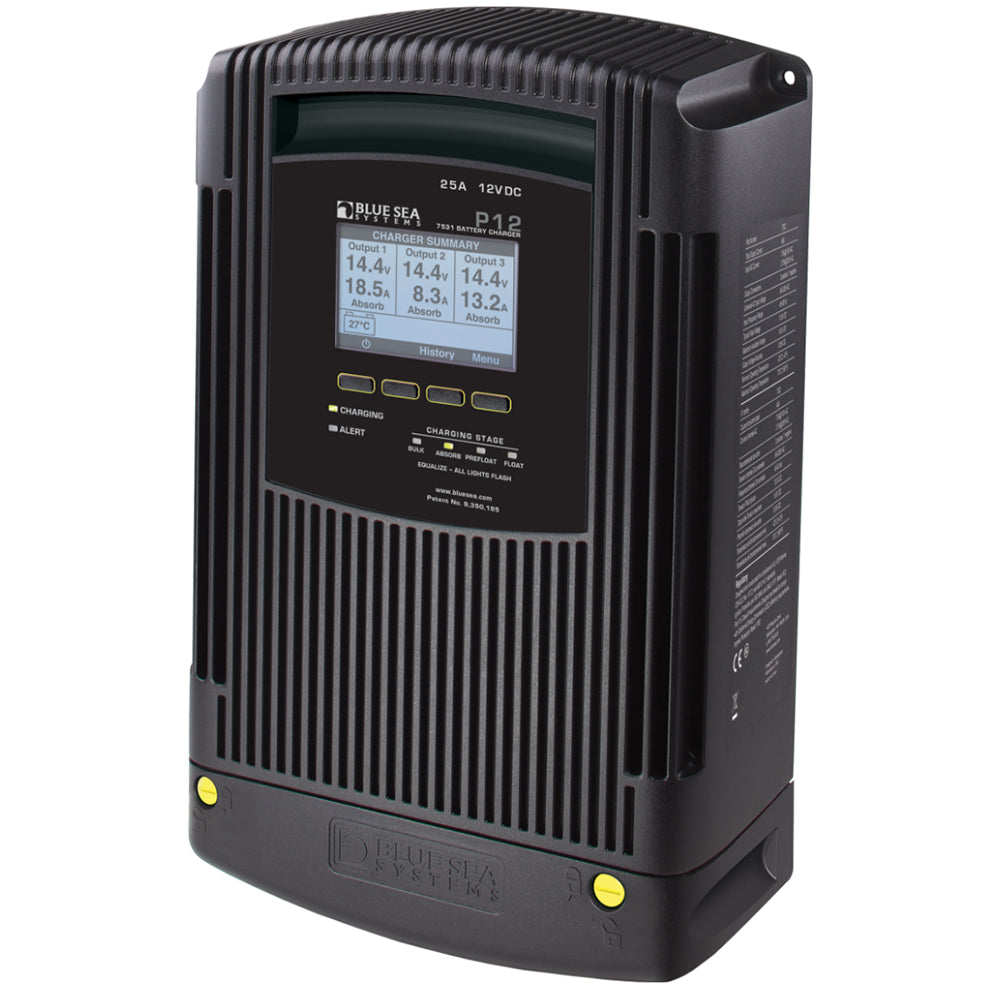

Blue Sea 7531 P12 Battery Charger - 12V DC 25A

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 7531BSS Attributes

• Number Of Banks: 1
• Application: 12 Volt AGM/ Flooded/ Gel/ TPPL Lead-Acid Batteries
• Output Voltage: 12 Volt
• Input Voltage: 115 To 230 Volt
• Ampere Rating: 25 Amp Charging
• Universality: Fully Universal
• Length (IN): 8.46 Inch
• Width (IN): 3.66 Inch
• Height (IN): 13.03 Inch

Blue Sea 7531BSS Features & Benefits

• Rugged, Finned Aluminum Case
• PreFloat™ Stage Prevents Over Charging
• Power Factor Corrected For Efficient Use Of AC
• Intuitive Diagnostic Screens
• User Defined Charge Profiles And Customizable Settings
• Provides Charging For Up To Three Battery Banks
• Large, Bright Display
• Multi-Language: English, French, German, Italian, Spanish
• Limited 5 Year Warranty

Blue Sea 7531BSS Installation Instructions

• 980016790.pdf
• 980025140.pdf

Blue Sea 7531BSS Technical Bulletins

• 7531.pdf
• 980013080.pdf

P12 Battery Charger - 12V DC 25A

Four stage, three output, dry mount design, for use in harsh environments.

Features:

• Rugged, finned aluminum case
• PreFloat™ stage prevents over charging
• Power factor corrected for efficient use of AC
• Intuitive diagnostic screens
• User defined charge profiles and customizable settings
• Provides charging for up to three battery banks
• Large, bright display
• Multi-language: English, French, German, Italian, Spanish
• Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
• Battery Temperature Compensation - adjusts charge voltage based on battery temperature
• AC over and under voltage shut down and automatic restart
• Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
• DC over voltage and reverse polarity protection
• Surge and short circuit protection

Specifications:

• Total Output Current: 25A
• Input AC Current: 4.5A @ 100V AC / 2.25A @ 200V AC
• Maximum Output Voltage: 16V DC
• Nominal Voltage: 12V DC
• Ignition Protected: Yes
• Number of Outputs: 1 negative / 3 positive
• Universal AC Input Voltage: 90-265V AC
• AC Input Frequency: 45-65Hz
• Output Voltage Accuracy: 0.05V
• Typical Float Voltage: 13.5V DC
• Minimum Operating Temperature: -20° C
• Maximum Operating Temperature: 70° C
• Minimum Storage Temperature: -30° C
• Maximum Storage Temperature: 80° C
• Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)
• Recommended for Battery Bank Sizes: 330Ah Maximum / 60Ah Minimum
• Warranty: 5 Year
• Height: 13.03" (330.96 mm)
• Width: 8.46" (214.88 mm)
• Depth: 3.66" (92.96 mm)
• Weight: 13.00lb (5.9 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

As long as you own the product, Blue Sea Systems will support its product. If defects in its materials or manufacturing are found, Blue Sea Systems will provide any replacement or credit for its products. The warranty period for the P12 battery charger and P12 remote display is five years from the date of first purchase. From the date of first purchase, the warranty period for digital instruments and marine system monitors is three years. Products that are not returned to Blue Sea Systems for analysis will not be compensated, nor will they be compensated for the labor required to replace any defective products.
SKU: NVN-66886
MPN: 7531-BSS
UPC: 632085075316
