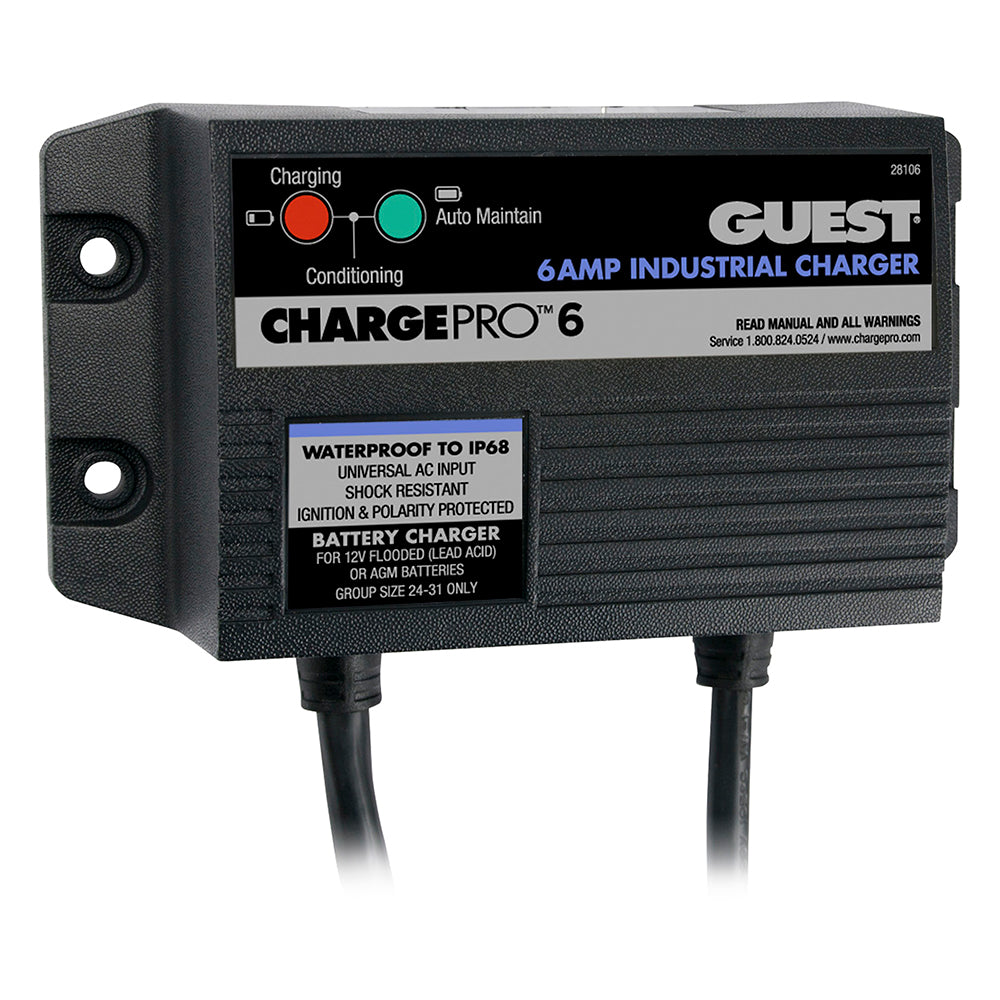

Guest 6A/12V 1 Bank 120V Input On-Board Battery Charger

Marinco waterproof battery chargers are designed and engineered to withstand the harshest freshwater and saltwater environments. Our selection chart will help you narrow your choices so you can pick the charger that’s right for you. Simply select the number of batteries, the type of batteries, and the charge speed that's right for you.

Marinco 28106 Attributes

• Number Of Banks: 1
• Application: AGM/ Flooded Batteries
• Output Voltage: 12 Volt
• Input Voltage: 120 To 230 Volt
• Ampere Rating: 6 Amp Charging
• Number Of Stages: Multi-Stage
• Universality: Fully Universal
• Length (IN): 8.9 Inch
• Width (IN): 6.4 Inch
• Height (IN): 2.4 Inch

Marinco 28106 Features & Benefits

• FAST 10 To 12 Hour Charge Time
• Multi-Stage Charge Profile Protects From Over Or Under Charging Batteries
• IP67 Protection
• Automatically Sends The Charge To The Batteries That Need It The Most
• Limited 2 Year Warranty

Marinco 28106 Installation Instructions

• MAR_TL_046.pdf

6A/12V 1 Bank 120V Input On-Board Battery Charger

ChargePro onboard chargers have the same housing and mounting dimensions as our traditional Charge Pro Guest chargers with a number of performance enhancements.

Features:

• Charge flooded and AGM batteries
• Microprocessor controlled for accurate charging
• Universal input 120/230V input for go-anywhere freedom
• Intuitive operation
• Isolated outputs
• Outputs can be put in series or parallel for higher voltage or current
• Completely sealed, epoxy filled
• IP68 waterproof
• Designed for harsh marine and industrial environments - moisture, salt, shock and vibration tested
• Non-corroding housing for ultimate reliability
• Meet global industry standards including UL, CE, CSA, ABYC, California efficiency regulations (CEC)
• Footprint same as former Charge Pro Guest Chargers
• ConnectCharge Plug for easy assembly to inlet (Item #150CCI) with no wiring

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Marinco has added many functions and technologies to provide excellent performance and prolong service life in the marine environment. Digital microprocessor control, Charge Pro...
SKU: NVN-51722
MPN: 28106
UPC: 093344058257
