Newmar PX-2 Junction Box Waterproof
Newmar PX-2 Junction Box Waterproof — Product description
Why Choose the Newmar PX-2 for Your Marine Wiring Needs?
When you're out on the water, reliable electrical connections are non-negotiable. The Newmar PX-2 waterproof junction box steps up as a go-to solution for boat owners and marine professionals tackling wiring setups above or below decks. Built to shrug off occasional spray and harsh marine conditions, this box uses tough, non-corrosive high-impact polypropylene that won't rust or degrade like metal alternatives. Its snap-on cover locks in a watertight seal, giving you peace of mind during those unexpected splashes or downpours.
What sets the PX-2 apart is its "universal" cut-to-fit cable entries. These graduated ports handle a broad range of cable diameters—from slim signal wires to chunkier power lines—without needing extra fittings. Inside, you'll find two pre-installed connector strips, each with six positions and captive screw terminals that meet ABYC standards for secure, vibration-resistant connections. Plus, multiple knockouts make adding conduit a breeze if your setup calls for it.
With an IEC IP54 rating, it withstands water jets from any angle without letting moisture sneak in—perfect for bilges, cockpits, or exposed helm stations. Whether you're retrofitting an older vessel or wiring a new build, the PX-2 keeps circuits protected and organized.
Key Advantages in Real-World Marine Applications
- Durable Material Choice: Polypropylene resists corrosion from saltwater, UV exposure, and impacts better than traditional plastic or metal boxes, extending service life in salty environments.
- Flexible Installation: Seven cable entry ports come fully installed, ready for immediate use, while knockouts allow seamless integration with rigid conduit systems common in larger yachts.
- ABYC Compliance: Captive screws prevent loosening from boat vibrations, ensuring terminals stay tight—critical for safety and reliability on rough seas.
- Space-Saver Design: Compact footprint (3.35 x 3.35 x 1.66 inches) fits tight spaces without sacrificing capacity for up to 12 wire terminations (two 6-position strips).
- Versatile for DIY or Pro: No special tools needed for basic installs; just cut entries to size, snap on the cover, and secure with screws.
PX-2 Detailed Specifications
| Specification | PX-1 | PX-2 | PX-3 |
|---|---|---|---|
| Number of Connector Strips | 1 | 2 | 2 |
| Positions per Strip | 6 | 6 | 9 |
| Max Wire Gauge | 16 AWG | 16 AWG | 16 AWG |
| Number of Cable Entry Ports | 5 | 7 | 7 |
| Number of Cable Entries Installed | 3 | 7 | 7 |
| Spare Cable Entries Provided | 2 | 0 | 0 |
| Cable Diameter Range (inches) | 0.14-0.81 | 0.14-0.81 | 0.14-1.0 |
| Cable Diameter Range (mm) | 3.5-20.5 | 3.5-20.5 | 3.5-25.5 |
| Box Size (inches) | 2.95 x 2.95 x 1.66 | 3.35 x 3.35 x 1.66 | 4.45 x 4.45 x 2.29 |
| Box Size (cm) | 7.5 x 7.5 x 4.2 | 8.5 x 8.5 x 4.2 | 11.3 x 11.3 x 5.8 |
The PX-2 strikes the perfect balance for mid-sized projects, offering more capacity than the PX-1 without the bulk of the PX-3.
Pro Tips for Installing Your PX-2 Junction Box
- Plan Your Layout: Map out wire runs to maximize the seven entry ports; use the graduated slots for varying cable sizes.
- Prep the Entries: Score and trim ports with a sharp knife for a snug fit—too loose risks leaks, too tight damages insulation.
- Secure Connections: Strip wires to the recommended length, twist strands firmly, and tighten captive screws to spec for optimal crimp without over-torquing.
- Mount Smartly: Use stainless screws into a backing plate; position away from constant flooding but accessible for inspections.
- Test Thoroughly: After sealing, spray-test with a hose to verify IP54 integrity before finalizing.
These steps ensure a bulletproof setup that lasts seasons, minimizing downtime and costly rewiring.
Frequently Asked Questions
Is the Newmar PX-2 suitable for saltwater environments?
Yes, its high-impact polypropylene construction is non-corrosive and ideal for marine use, resisting saltwater spray and humidity better than metal boxes.
What wire sizes can the PX-2 handle?
It accommodates up to 16 AWG wire on its two 6-position strips, perfect for most boat lighting, bilge pumps, and accessory circuits.
Does the PX-2 meet safety standards for boating?
Absolutely—captive screw terminals comply with ABYC requirements, ensuring vibration-proof connections essential for safe vessel operation.
How do I access conduit with the PX-2?
Multiple knockouts on the sides and bottom punch out easily for 1/2-inch conduit, blending cable glands with rigid piping setups.
What's the waterproof rating of the PX-2?
IEC IP54 certified, meaning it protects against water jets from any direction—great for deck-level or spray-prone areas.
Can I use the PX-2 above or below deck?
Designed for both; its compact size and spray resistance make it versatile for exposed or enclosed marine locations.

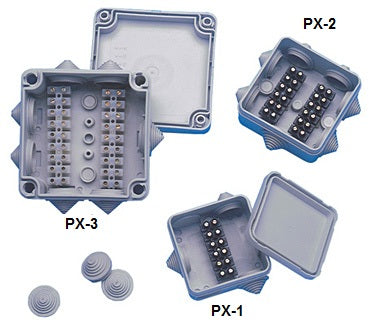

Waterproof Junction Boxes
- Ideal for making wiring connections above or below decks, even in areas subject to occasional spray
- Similar to BX Series junction boxes, but made from rugged, non-corrosive, high impact polypropylene
- Snap-on cover provides watertight seal
- "Universal" cut-to-fit (see diagram) graduated diameter cable entries accommodate wide cable range
- Multiple position connector strips with "captive" screw compression wire terminals installed - meets ABYC standards
- Multiple knockouts provided for conduit access (in addition to cable entries)
- IEC Waterproof Rating: IP54 - "Water projected in jets against the enclosure from any direction shall have no harmful effects."
Specifications
| Model | PX-1 | PX-2 | PX-3 |
| Number of Connector Strips | 1 | 2 | 2 |
| Positions per Strip | 6 | 6 | 9 |
| Max Wire Gauge | 16 | 16 | 16 |
| Number of Cable Entry Ports | 5 | 7 | 7 |
| Number of Cable Entries Installed | 3 | 7 | 7 |
| Spare Cable Entries Provided | 2 | 0 | 0 |
| Cable Diameter Range (inches) | .14-.81 | .14-.81 | .14-1.0 |
| Cable Diameter Range (mm) | 3.5-20.5 | 3.5-20.5 | 3.5-25.5 |
| Box Size Inches | 2.95 x 2.95 x 1.66 | 3.35" x 3.35 x 1.66 | 4.45 x 4.45 x 2.29 |
| Box Size Centimeters | 7.5 x 7.5 x 4.2 | 8.5 x 8.5 x 4.2 | 11.3 x 11.3 x 5.8 |
The waterproof junction box is very suitable for wiring above or below the deck, even in the occasionally sprayed area, similar to the BX series junction box, but suitable for...
SKU: NVN-1001202
MPN: PX-2
UPC:
Technical specifications
| Brand | NewMar |
| Model | Newmar PX-2 Junction Box Waterproof |
| SKU / MFR# | 1001202 |
