Newmar ERC-12-15 Back Up Switch Over
Newmar ERC-12-15 Back Up Switch Over — Product description
Seamless Power Continuity for Critical Communications
Imagine your radio setup humming along perfectly during a storm-induced outage or unexpected equipment glitch—no interruptions, no frantic battery swaps. The Newmar ERC-12-15 steps in as your reliable guardian, instantly bridging the gap between your main power supply and a standby battery. Designed for 12V systems in demanding environments like mobile command vehicles, remote base stations, and emergency response setups, this compact relay/charger ensures your voice stays on the air when it matters most.
Unlike basic battery backups that drain fast without smart management, the ERC-12-15 actively monitors your DC voltage and switches over in milliseconds using a robust single-pole double-throw (SPDT) relay. Once normal power resumes, it seamlessly hands control back while trickle-charging your battery to keep it primed and ready. This dual-role functionality means no extra hardware cluttering your rack—just plug-and-play reliability.
How the ERC-12-15 Delivers Uninterrupted Performance
At its core, the ERC-12-15 senses any drop in DC output from your power supply. Here's the smart sequence:
- Normal Operation: Your power supply feeds equipment while diverting a gentle trickle charge (around 0.1 amps typical) to maintain battery health at about 0.7V below supply voltage.
- Power Loss Detection: Fast relay activation connects your gear directly to the standby battery, supporting continuous loads up to 10 amps steady or 15 amps short bursts.
- Recovery Mode: Power returns? Relay flips back, resuming supply power and trickle charging—no manual intervention needed.
Pro tip: For prolonged outages where your battery runs deep, pair it with a dedicated charger post-recovery to top it off quicker. This setup shines in scenarios where seconds count, like public safety dispatching or amateur radio field days.
Technical Specs at a Glance
| Specification | ERC-12-15 Details |
|---|---|
| Input Voltage Range | 10.0 - 14.5 VDC |
| Relay Capacity | 10 Amps Continuous / 15 Amps Intermittent |
| Trickle Charge (Typical) | 0.1 Amps |
| Dimensions (L x W x H) | 5-1/8" x 2-7/8" x 2-3/8" |
Its rugged build fits snugly into tight spaces, making it a favorite for installers tackling everything from ham shacks to fleet vehicles.
Real-World Applications and Why It Excels
In high-stakes communication networks—think first responders coordinating rescues or businesses relying on two-way radios for operations—the ERC-12-15 prevents costly downtime. Users rave about its zero-fuss integration with popular 12V power supplies, eliminating the need for complex UPS systems that often fail under vibration or heat.
Key advantages over competitors:
- Ultra-Fast Switchover: Relay response keeps audio clear without pops or dropouts.
- Battery Longevity: Smart float charging extends sealed lead-acid or AGM battery life.
- Simple Wiring: Minimal connections reduce failure points in mobile installs.
- Proven Durability: Built for 24/7 duty in harsh conditions, from desert heat to arctic cold.
Effortless Installation Tips for Peak Reliability
Mount it close to your power supply and battery for shortest wire runs. Use at least 14-gauge wire for loads up to 10A, and always fuse both input and battery lines. Test the switchover monthly by briefly disconnecting AC—peace of mind in under a minute. For marine or off-road use, secure it against vibes with included mounting holes.
Frequently Asked Questions

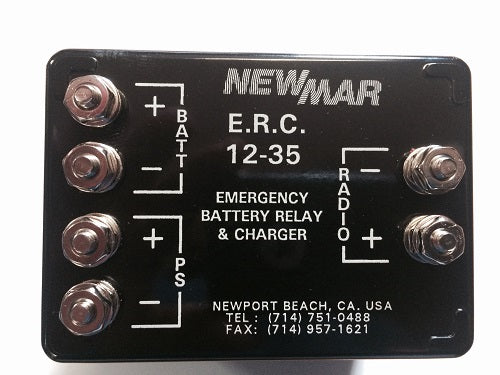

The Emergency Relay/Charger is a device for assuring immediate back-up power to communications equipment in the event AC power is temporarily lost to the power supply or the supply fails. In addition it will allow the power supply to act as a ?trickle? battery charger without any additional modification.
When loss of DC voltage is sensed by the ERC, it employs a fast-acting S.P.D.T. relay to automatically switch the equipment?s DC input over to a standby battery to allow continued operation. When the power supply is returned to service, the ERC disengages the battery and puts the supply back on line to provide DC voltage. While the power supply is operating normally, a small portion of the output current is directed to the battery to trickle-charge and maintain it at full voltage.( Note: Battery float voltage will be maintained at .7 volts lower than power supply voltage)
Note: If the power supply is down for an extended period, the back-up battery may become significantly discharged while powering the radio. When the supply returns to service, the trickle charge rate of the ERC may be insufficient to restore the battery to full charge in a timely manner. In the event this occurs, a supplemental charger may be necessary to bring the battery to full charge.
| ERC12-15 | ERC24-15 | ERC12-35 | |
| Input range | 10.0 - 14.5 VDC | 20. - 29.0 VDC | 10.0 - 14.5VDC |
| Relay ratings | 10 Amps Continuous 15 Amps intermittant | 10 Amps Continuous 15 Amps intermittant | 30 Amps Continuous 35 Amps intermittant |
| Float Trickle Typical | 0.1 amps | 0.2 amps | .01 amps |
| Dimensions | 5 1/8" x 2 7/8" x 2 3/8' | 5 1/8" x 2 7/8" x 2 3/8' | 5 1/8" x 2 7/8" x 3 5/8" |
The emergency relay/charger is a device used to ensure that the communication equipment is immediately provided with backup power in the event of a temporary power failure or power failure of the AC power supply. ...
SKU: NVN-1001167
MPN: ERC-12-15
UPC: 00729198553296
