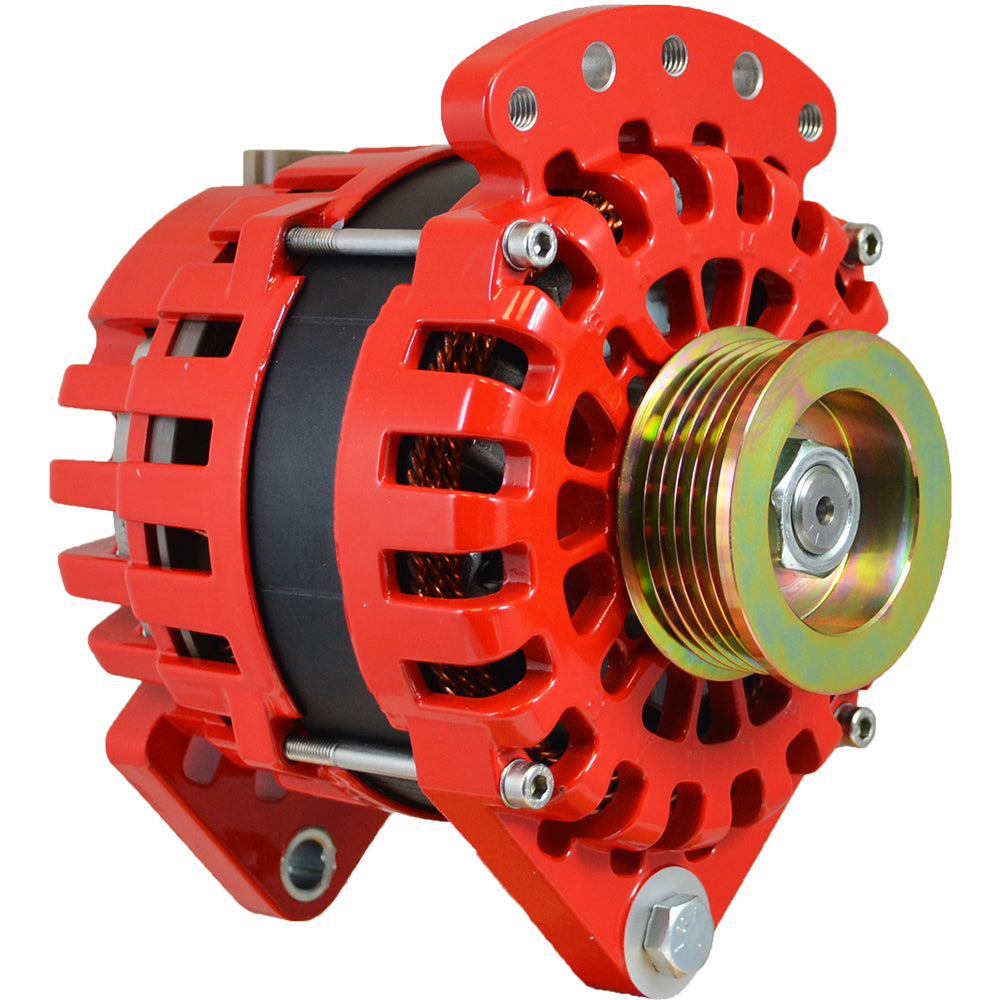

Balmar Alternator 3.15" Dual Foot Saddle K6 Serpentine Pulley - 170A - 12V

Balmar XT-Series Alternators Designed for Recreational Applications XT-Series Alternators from Balmar bring together the latest innovations in alternator design to deliver incredible charging power in a compact, Marine-friendly package. The XT-Series Alternator family features a state-of-the-art, braided stator wire design to generate exceptional output in the smallest possible area. The XT-Series produces slightly more power than our previous AT-Series 165A design and operates 5-10 degrees C cooler.In addition, we've added Balmar's Smart Ready internal regulator technology to provide an additional level of fault tolerance for cruising boaters.Available XT-Series mounting styles have also expanded to include the "Vortec" 9Si design found on many GM gasoline engines. XT-Series Alternators may require a Tachometer Signal Stabilizer (Part No. 15-TSS) if your current tach is not adjustable.XT-Series Alternators should only be used in Dual Vee or Multi-Groove Serpentine belt configurations. Balmar's growing range of AltMount Serpentine Pulley Conversion Kits support all XT-Series Alternators.

Balmar XTDF170K6 Attributes

Balmar XTDF170K6 Features & Benefits

• 170A or 220A in a Small Case Package
• Up to 140A at Idle Speeds
• Patented Smart Ready Technology
• Dual Fan Cooling, High Airflow Frame
• Ideal for Large Battery Banks
• USCG Title 33, ISO 8846 and SAE J1171 Certified

Alternator 3.15" Dual Foot Saddle K6 Serpentine Pulley - 170A - 12V

Balmar offers a wide range of alternator power upgrades designed specifically for marine industry applications. Balmar installs high reliability bearings, robust rectifier diodes and improved heat-sinking capabilities on all our alternators to ensure improved system reliability combined with increased charging power.

Features:

• 3.15" Dual Foot Saddle
• K6 Serpentine Pulley
• 170A
• 12V

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

"This NEW 170 Amp dual foot mount XT Alternator is fitted with a K6 pulley for a 6 groove serpentine belt. This is a much higher output alternator than can normally be accommodated in a small case size. The innovation that made this possible is the new braided stator design which greatly improves efficiency. The new XT series alternators also include a backup internal regulator for emergency use. See dimensioned drawings for mounting details, the alternator is slightly more chunky than the standard small case alternator but is designed to fit in the same spot. These alternators all require a serpentine belt or dual V-belts and for full output require the MC614-H regulator (not included) because it can deliver the higher field current necessary to drive these them to full power. Externally regulated high output small case alternator 12 volt output at 170 Amps, Dual foot 3.15\" ID Yanmar style mount. This is not an isolated ground alternator K6 pulley for a 6 groove serpentine belt Built-in backup regulator Datasheet, dimensions, output curves The Max Charge regulator is required but not included."
SKU: NVN-74948
MPN: XT-DF-170-K6
UPC: 676205500791
