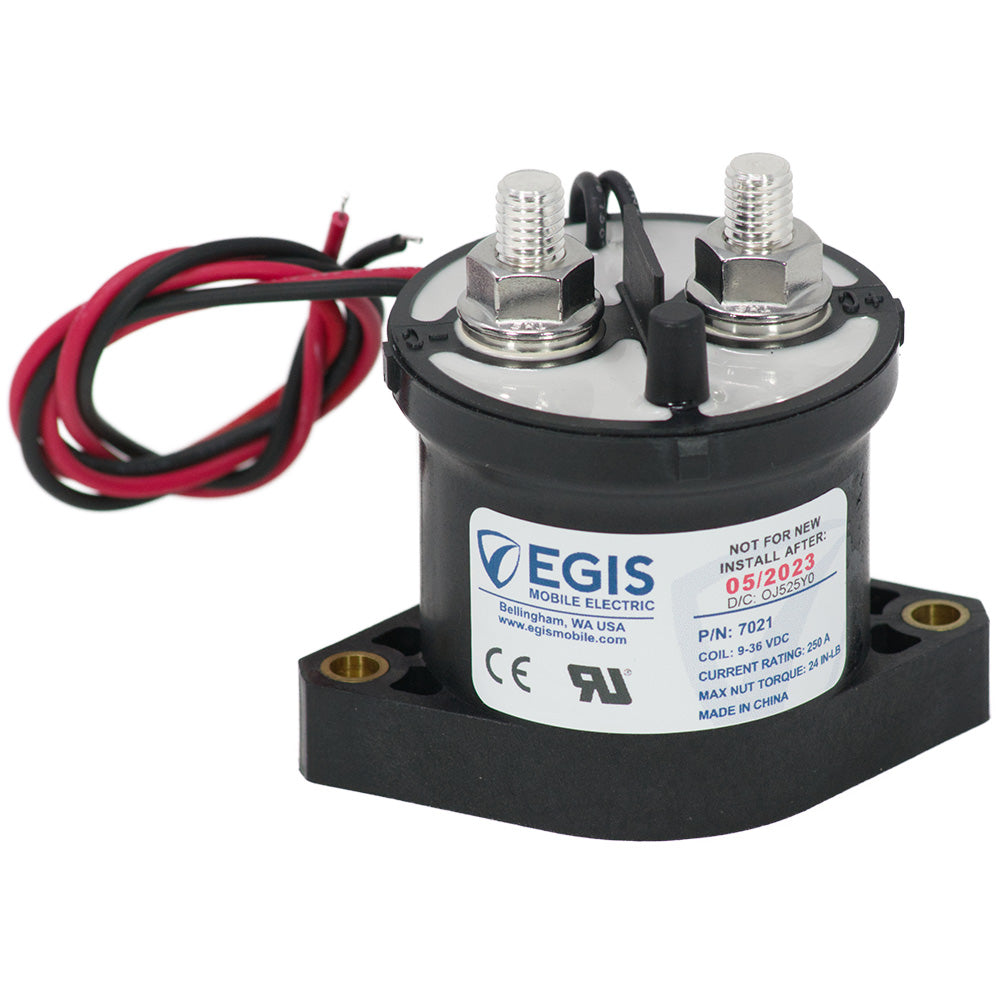

Egis Contactor 250A, 12/24V

Contactor 250A, 12/24V

This 250A Egis contactor is perfect for reducing installation costs and weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engines and auxiliary loads.

Applications:

• Ensure flawless operation for the life of the installation with a hermetically sealed contactor sealed against dust & moisture Intrusion.
• High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond.

Features:

• Ignition is protected and safe for installation in closed compartments with potential explosive gases
• High Electrical Switching Endurance delivers 6,000 cycles at 250A or 450V and 100,000 cycles at 250A/14V
• High Interrupt Current Capability - safely able to open in a locked starter situation (up to 1,500 A @ 14 Vdc)
• Bullet-proof Construction - sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware.
• 4 Year Industry Leading Warranty

Specifications:

• Continuous Current (Amps): 250/500
• Operation Control Voltage: 9-36 VDC
• Ingress Protection: IP67/IP69K
• Ignition Protection: ISO-8846 / UL 1500
• Electrical Endurance Rating (Cycles): 1,000,000
• Minimum Operate Temp. (Deg C): -40 C
• Max Operate Temp. (Deg C): 85

Focal Features:

Sealed Enclosure

Hermetically sealed against dust and moisture penetration. The high temperature rating for all installation locations.

18-8 Stainless Steel Self-Locking Hardware

Resists corrosion and ensures long-term connection reliability with premium hardware.

High Interrupt Capability

Safely able to open in a locked starter situation up to 1,500 A @14 Vdc.

Easy Mounting

Reinforced mounting holes provide secure installation and easy attachment for the installer.

SKU: NVN-103453
MPN: 7021
UPC:
