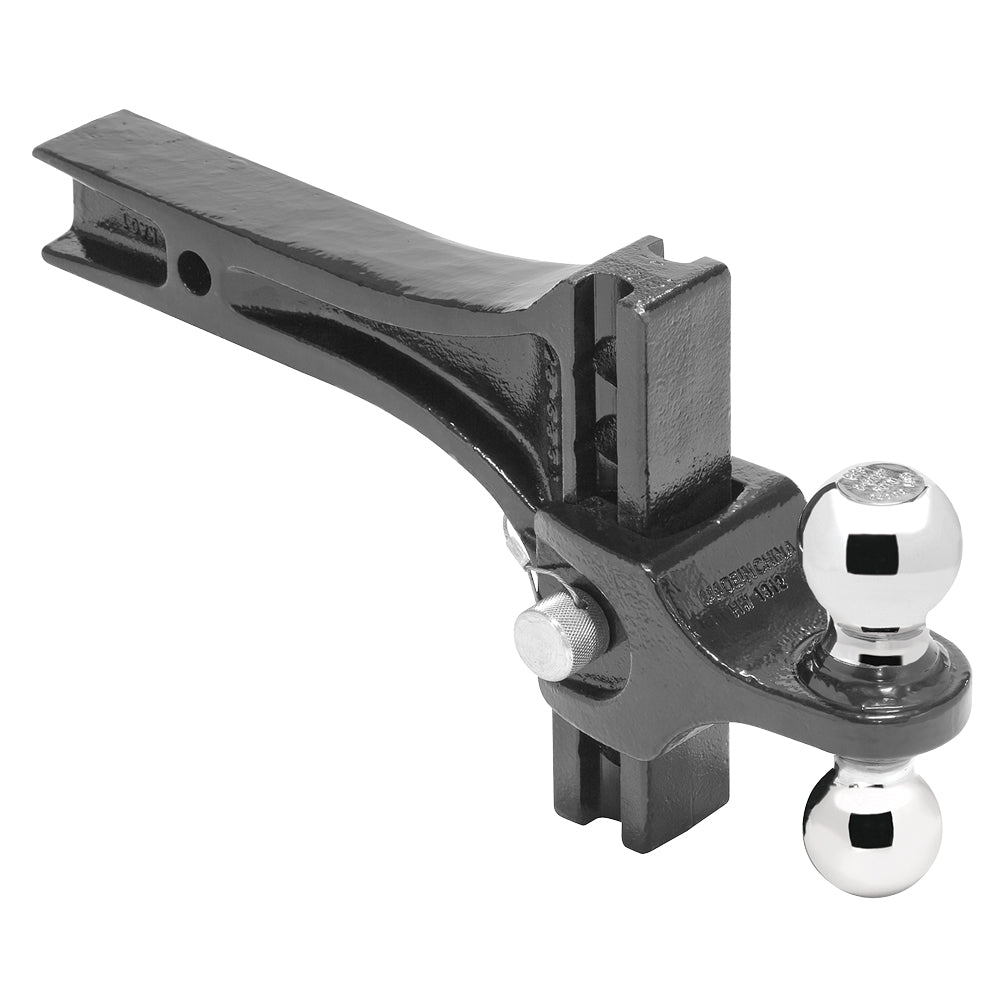

Draw-Tite Adjustable Dual Ball Mount
Draw-Tite Adjustable Dual Ball Mount — Product description
Draw-Tite is the premier brand of custom trailer hitches. Established in 1946, Draw-Tite was born out of a passion for outstanding performance and has come to represent one of the best custom-fit vehicle products available today. Each hitch designed must pass rigorous tests to become Tested Tough ™. With increased tongue weight capacity and integration of Hitch Match ™, an all-new accessory pairing guide, Draw-Tite is the brand of choice for years of dependable service.
Draw-Tite 63071 Attributes
- Receiver Size: 2 Inch
- Gross Trailer Weight: 10000 Pound/ 14000 Pound
- Tongue Weight: 1000 Pound/ 1400 Pound
- Drop: 0 Inch
- Rise: 4-5/8 Inch
- Shank Length: 12-1/16 Inch
- Hitch Ball Count: Dual
- Hitch Ball Size: 2 Inch/ 2-5/16 Inch
- Color/ Finish: Black Powder Coated
- Material: Steel
- With Hitch Pin: No
- Universality: Fully Universal
- Adjustable Ball Height: Yes
- Shank Type: Solid
- Swivels: No
Draw-Tite 63071 Features & Benefits
- Adjustable Height - Perfect For Towing Multiple Trailers Of Varying Heights And Couplers
- Cast Shank, Variable Height Capability
- Knurled Bolt Pin With Secure Lanyard
- Black Powder Coat Finish
- Height Adjusts Up To 10.5 Inch
- Fits 2 Inch Receivers And Rated Up To 14K GTW
- Limited 3 Year Warranty
Draw-Tite 63071 Installation Instructions
Draw-Tite 63071 Warranties
Adjustable Dual Ball Mount
Adjustable Dual Ball Mount System, 2" Sq. Shank, 2" Ball 10,000 lbs. (GTW), 2-5/16" Ball 14,000 lbs. (GTW)
Features:
- Adjustable height - Perfect for towing multiple trailers of varying heights and couplers
- Height adjusts up to 10.5"
- 2" (10K GTW) and 2-5/16" (14K GTW) Hitch balls
- Fits 2" receivers and rated up to 14K GTW
- Cast shank, variable height capability
- Knurled bolt pins with secure lanyard
- Black powder coat finish
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
On this adjustable double ball stand, use a 2" ball to tow a maximum of 10,000 pounds or a 2-5/16" ball to tow a maximum of 14,000 pounds. To switch the ball, simply remove the ball mounting platform, turn it over...
SKU: NVN-57668
MPN: 63071
UPC: 016118121520
