Digital Yacht NMEA Adapter f/PC

The NMEA to USB adaptor works on PCs, Macs and Linux computers. It converts NMEA 0183 data, used by many marine systems, into a USB format that can be plugged into most modern computers. The adaptor is a bi-directional device. Therefore, data can be sent to and from systems and supports traditional 4800 baud data or the higher speed 38400 baud rate used by AIS systems. LEDs show data being received and transmitted. Thus helping with interfacing issues and encapsulating all the electronics into the connector.

The device creates a virtual COM port on the PC which navigation and charting software can use to read NMEA data. If necessary, multiple adaptors can be connected . This effectively allows the creation of any number of NMEA ports on your PC. Drivers for this device can be downloaded from our website. It's Windows XP/7/8/10 compatible. MAC and Linux/Raspberry Pie drivers are also available.

NMEA Adapter f/PC

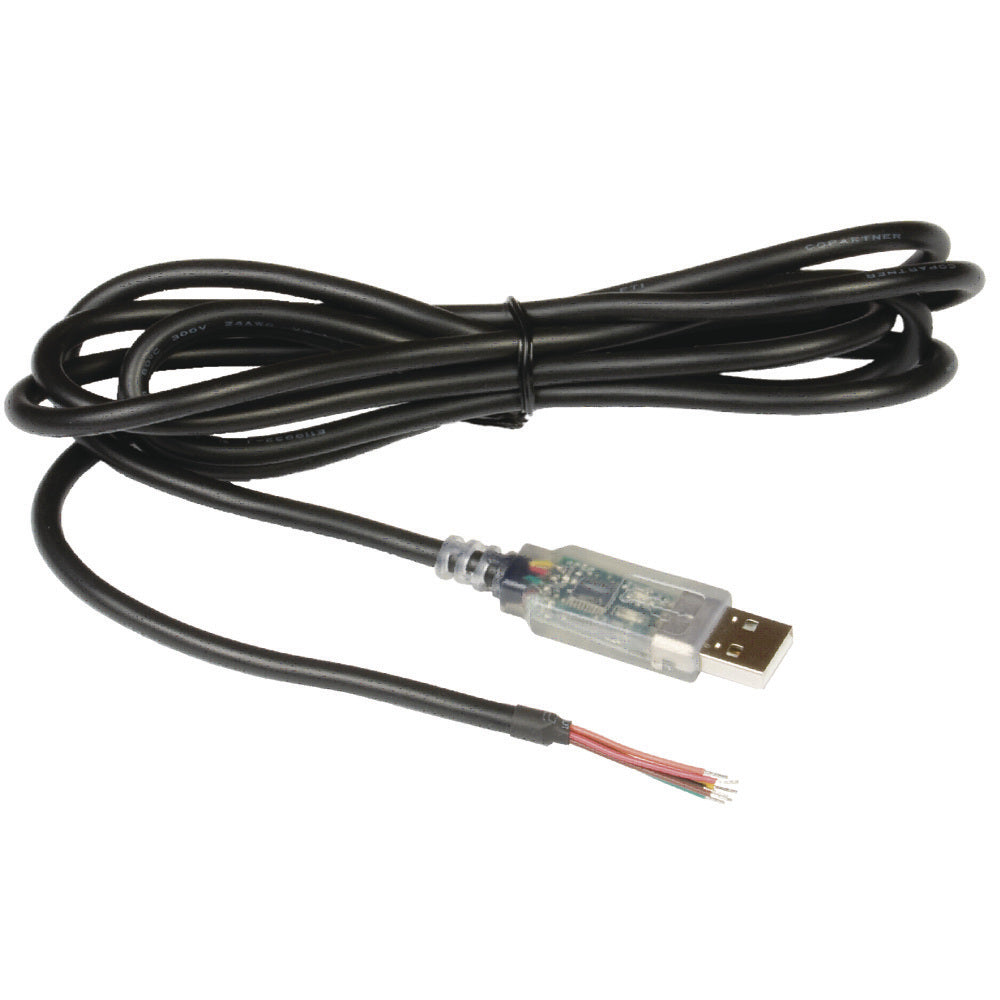

The USB to NMEA Serial Adaptor cable is a simple and effective method for connecting NMEA 0183 compatible marine equipment to a PC. Each cable contains a small internal electronic circuit board, housed in the USB connector. This circuitry provides full bi-directional conversion of the serial data and also includes Tx and Rx LEDs which give a visual indication of data traffic on the cable.

The other end of the cable is bare, tinned wire ended connections which can be quickly connected to the NMEA 0183 compatible equipment with suitable connector block or terminals. The cable is FCC, CE and RoHS compliant.

The USB side of the cable is USB powered and USB 2.0 full speed compatible. Each cable is 1.8m long and supports a data transfer rate up to 1 Mbaud. Drivers are available for WinXP, Vista, Win7, LINUX and Mac OS X.

Nmea adapter f/PC USB to Nmea serial adapter cable is a simple and effective way to connect Nmea 0183 compatible marine equipment to PC. Each cable contains a...

• Converts NMEA to USB so that your computer can read the data
• Bidirectional data conversion
• Use with our GPS160 for PC integration
• Low cost simple solution
• The computer is able to fit more that one adaptor
• 4800, 9600, 38400 and 115200 baud compatible
• Built-in indicator lights flash to show data is receiving and transmitting
• Easy plug and play connection to most computers

SKU: NVN-39399
MPN: ZDIGUSBNMEA
UPC: 5013719020035
