Digital Yacht WL510 High Power On Board Wi-Fi Access System

The new WL510 allows boat owners to connect to Wi-Fi hot spots through the hi power WiFi antenna so that their on board PC's or equipment can connect to the internet. With internet connectivity on board you can download the latest weather or chart updates as well as having a mobile office on board. Most harbours and ports have either free or subscription based services available.

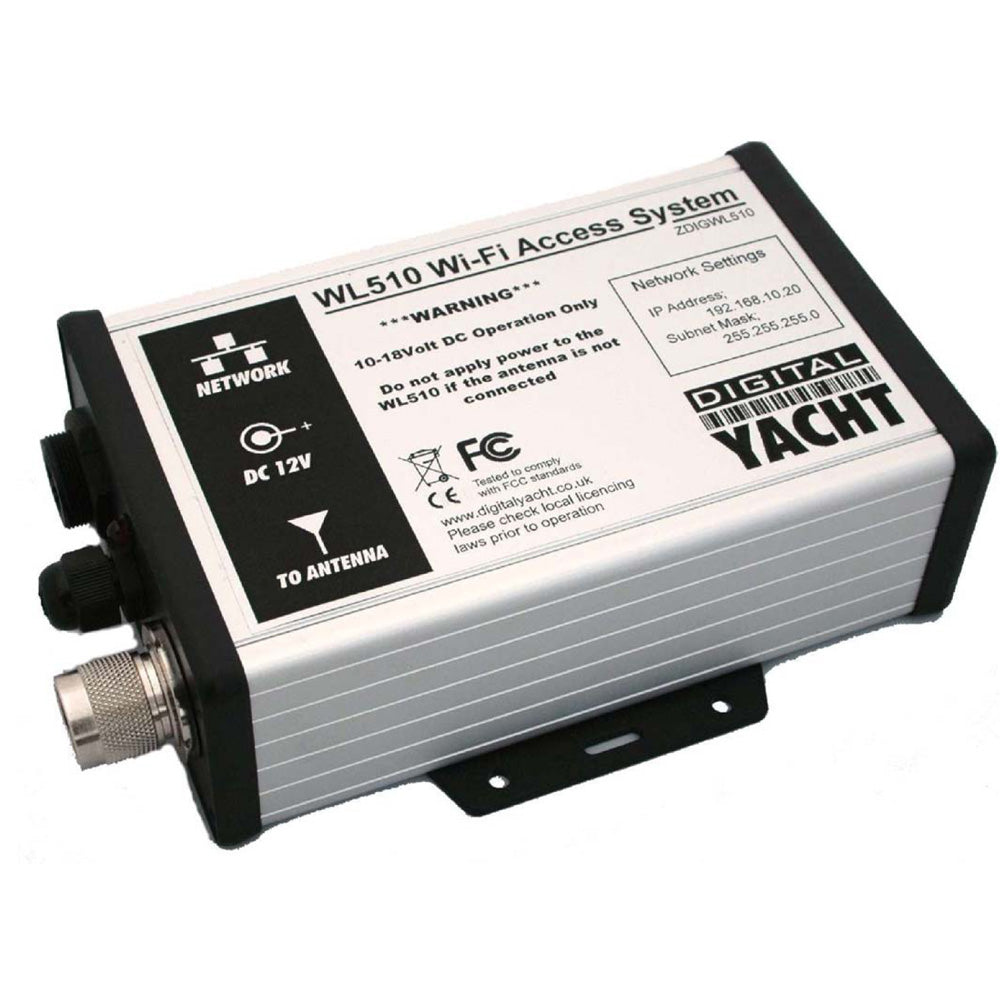

The system has a compact, DC powered below deck mounted 600mW booster/modem and external, hi-gain (12dBm) antenna with 33ft (10m) low loss LMR400 coax interconnect cable. The antenna measures 0.9m (2.95ft) and can be supplied with deck, mast and industry standard 1” x 14TPI mountings.

The WL510 modem connects to an on board PC through a regular RJ45 CAT5 network cable for simple driver free installation. Connect the WL510 to a router and everyone on board can share the long range wireless internet connection. Compatible with all popular operating systems; Windows XP/Vista/7, Mac OS X 10.3 (and higher) and LINUX, the WL510 supports 802.11b/g protocols as well as WEP/WPA/WPA2 encryption.

Wi-Fi range depends on many local factors, but Digital Yacht has seen ranges of up to 4-6 miles with this with this hi power but low cost WiFi antenna system. . In general, using an internal Wi-Fi adaptor typically found on a notebook, you'll be lucky to find the signal at the end of the dock, so if you plan to access the internet whilst on board, the WL510 could be the solution for you.

WL510 High Power Wi-Fi Access System
Part #: ZDIGWL510

Two part solution with Hi gain (0.9M) 2.4GHz Wi-Fi antenna, mounting base, 10m low loss LM400 cable and black box amplifier and modem. Simple USB connection. 1W erp. Offers 4-6 mile range capability. With external 12/24V DC power adaptor.

The interface allows you to choose which hotspot you want to access, enter WEP/WAP passwords and view signal strength and diagnostics.

Power output from the device can also be adjusted. The interface is password protected to prevent unauthorized access and a tabbed menu for easy operation. Easy web interface to connect via RJ45 patch cable to your PC and login through a browser.

Features:

• Access the internet through Wi-Fi hotspots with a range of up to 4-6nm

• Controlled via a simple web interface - no complicated drivers to install

• Connects via ethernet to onboard PC or router

• Supplies complete with high gain (15dBi) external antenna and 10m coax cable assembly

• 12VDC operation

Wl510 high-power Wi-Fi access system part number: Zdigwl510 two-part solution, with high gain (0.9M) 2.4GHz Wi-Fi antenna, mounting base, 10m low loss Lm400 cable and black box...

• Ideal solution for permanent installation and new builds
• Network Interface for connection to one PC or to a Router for shared long range connection
• Easy to setup and control from any browser through web based interface
• Adjustable (up to 600mW) Wi-Fi modem and high gain (12dBm) omni-directional antenna gives ERP up to 4W
• Supplied with threaded deck mount for antenna and 33ft of low loss LMR400 coax cable
• Supplied with 3ft network cable – can be extended with any CAT5 network cable (up to 165ft)
• Requires connection to boats 12v DC supply
• No drivers – works with all popular operating systems; Windows XP/Vista/7/8, Mac OS X and LINUX compatible

SKU: NVN-38862
MPN: ZDIGWL510
UPC: 738435472603
