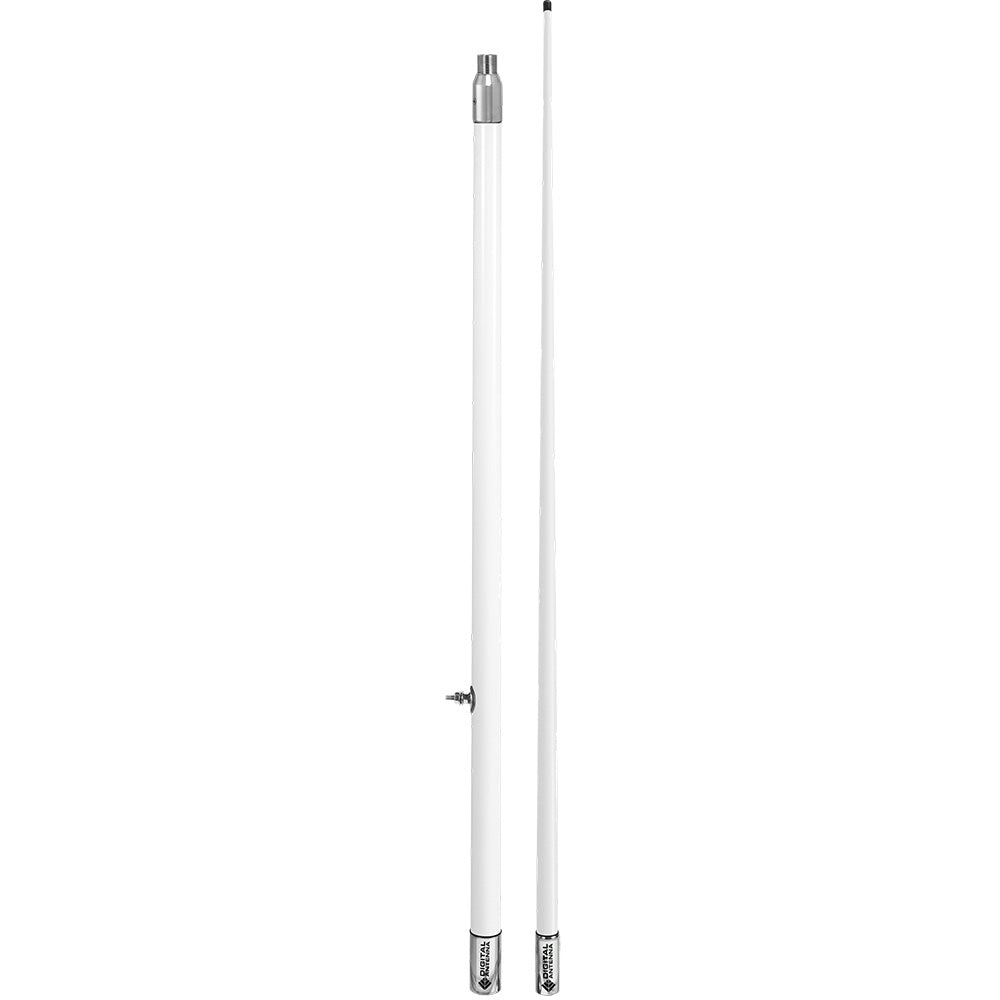

Digital Antenna 544-SSW-S 16' Single Side Band Antenna

544-SSW-S 16' Single Side Band Antenna

When the range of a VHF radio just won’t do, offshore vessel operators choose Digital Antenna’s high-performance Single Side Band antennas for exceptional communication over the entire HF frequency range. Heavy-duty construction for use in the roughest seas, Digital Antenna SSB antennas are a popular choice for boaters when durability, performance, and great looks are prerequisites. Available in 16’ or 24’ lengths to accommodate even the most pristine of motor yachts.

Features:

• Powerful brass radiators
• Soldered connections
• Centering foam insulator
• High gloss urethane finish
• Mount: Standard 1”–14 threaded base
• RF Termination: 1/4”- 20 stainless steel stud
• Cable: Not included

Specifications:

• Radiation Pattern: Omni-Directional
• Max Input Power: 1000W
• Exterior Finish: White, UV stable polyurethane coating
• Ferrule: 316 Stainless Steel
• Installation: 1"-14 female threads
• Wire (not included): Use 10-12 AWG high-voltage insulated wire

SKU: NVN-105489
MPN: 544-SSW-S
UPC: 839494004757
