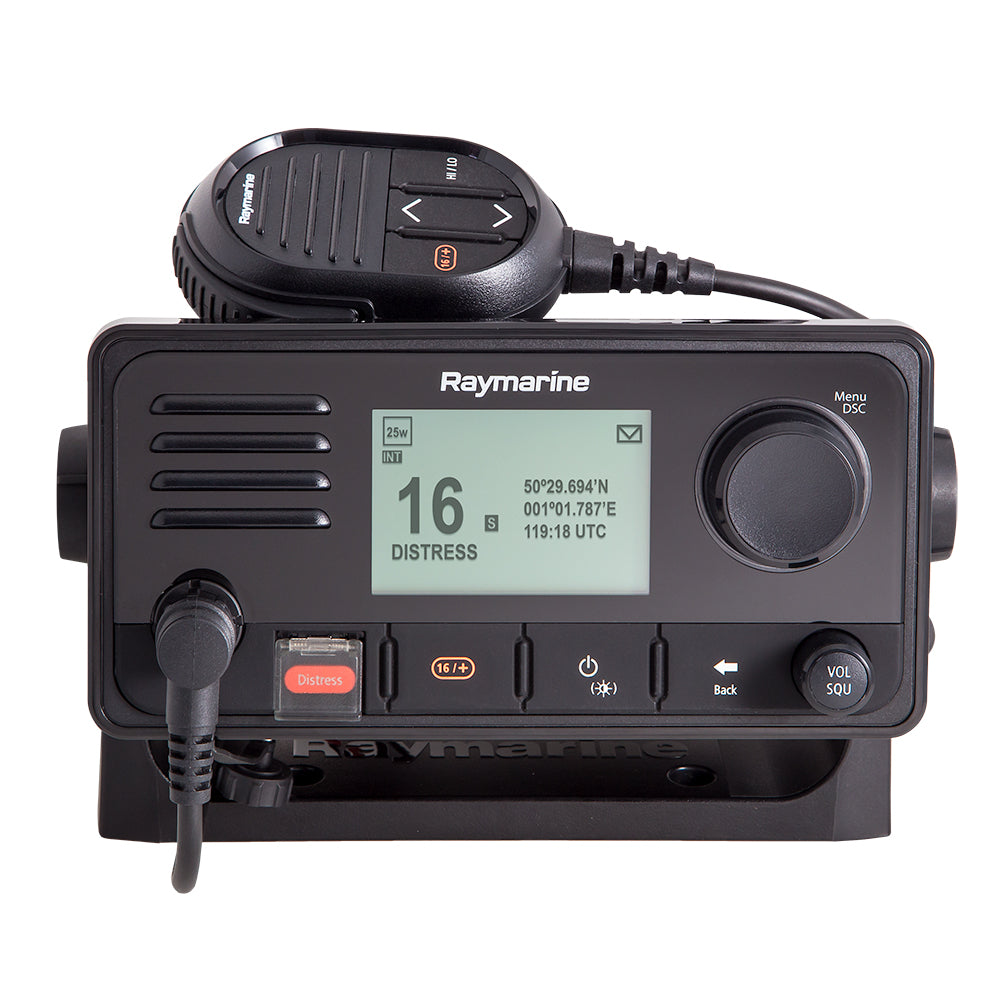

Raymarine Ray63 Dual Station VHF Radio w/GPS
Raymarine Ray63 Dual Station VHF Radio w/GPS — Product description
Navigating challenging offshore waters demands reliable communication and precise positioning, and the Raymarine Ray63 steps up as a robust fixed-mount VHF marine radio designed for serious boaters. With its Class D Digital Selective Calling (DSC) and integrated GPS receiver, this unit transforms routine transmissions into lifesaving interactions. Oversized controls and a generous LCD display ensure effortless handling even in rough seas or low light, while support for multi-station setups keeps every helm connected.
Standout Features That Enhance Your Onboard Experience
- Full-Featured VHF with DSC: Effortlessly send distress signals, position requests, and routine calls with Class D DSC compliance for international safety standards.
- Multi-Station Flexibility: Pair with one wired or up to two wireless RayMic handsets for seamless control from secondary stations, including intercom functionality for crew coordination.
- Integrated GPS/GNSS: 72-channel receiver delivers fast acquisition and reliable positioning; optional external antenna boosts performance in obstructed areas like pilothouses.
- Seamless Network Integration: NMEA 2000 and NMEA 0183 compatibility links effortlessly with multifunction displays, chartplotters, and other electronics for a unified system.
- Weather and Alert Ready: Access 72 NOAA channels with automatic alerts to keep you informed of storms and hazards without missing critical transmissions.
- Versatile Audio Options: PA system capability and external speaker output amplify announcements across the vessel.
- Rugged Build: IPX6/IPX7 waterproofing withstands heavy spray and submersion, paired with wide temperature tolerance for all-season reliability.
Why Boaters Trust the Ray63 for Offshore Adventures
Imagine cruising far from shore, where every signal counts. The Ray63's high-contrast display cuts through glare, and intuitive rotary knobs allow gloved hands to dial channels swiftly. DSC integration means a single button press can summon rescue with your exact GPS coordinates, a game-changer in fog or night ops. For larger vessels, dual-station control eliminates blind spots, letting the skipper at the flybridge stay linked to the lower helm.
Its sleek black design blends perfectly with modern cockpits, especially alongside Axiom series displays, creating a professional helm aesthetic. Power users appreciate the 25-watt output for long-range clarity, while low-power mode conserves battery during standby. Networked setups share GPS data fleet-wide, streamlining navigation and reducing wiring clutter.
Detailed Technical Specifications
| Category | Specification |
|---|---|
| Power Output | 1W (low) / 25W (high) |
| Frequency Range | 156.000–157.425 MHz (VHF marine bands, US/International/Canadian) |
| GPS Channels | 72 channels, WAAS/EGNOS/MSAS compatible |
| Position Accuracy | <15m (95%) without SBAS; <5m (95%) with SBAS |
| Operating Voltage | 9–16 Vdc |
| Current Draw | Standby: 600mA; Receive: 2A; Transmit (high): <6A |
| Environmental | -20°C to +60°C operating; IPX6/IPX7 waterproof |
| Connections | NMEA 0183, SeaTalkng/NMEA 2000, GNSS antenna (TNC), audio RCA, second station ports |
| Display | Large backlit LCD |
| Audio Output | Base: 2.5W; External: 5W; Handset: 1W |
Complete Kit for Quick Setup
- Main Ray63 VHF unit with fistmic
- Trunnion and panel mount hardware
- Sun cover and protective boot
- SeaTalkng spur cable and blanking plug
- Mounting screws, knobs, and gasket
- Fistmic hook plate
Pro Tips for Seamless Installation
Mount the unit within easy reach, ideally 1-2 feet above the helm for optimal viewing. Route cables away from high-power lines to minimize interference. Secure the GNSS antenna high and clear of metal obstructions for peak satellite lock. Test DSC by programming your MMSI early—it's non-reversible, so double-check details. For multi-station, align RayMic handsets via the menu for instant intercom. Power with a dedicated 12V circuit protected at 10A.
Ideal for These Boating Scenarios
Perfect for offshore fishing trips, coastal cruising, or commercial ops where redundancy matters. Integrate with radar and AIS for collision avoidance, or use PA for dive briefings. Families appreciate weather alerts during passages, while racers value the 10Hz GPS refresh for precise logging.
Frequently Asked Questions
Does the Raymarine Ray63 support wireless second stations?
Yes, it accommodates up to two wireless RayMic handsets alongside one wired option, enabling full remote control and intercom from anywhere on the boat.
Is the built-in GPS sufficient for below-deck mounting?
The internal 72-channel GNSS works well in most cases, but connect the optional external TNC antenna for superior reception inside cabins or metal structures.
Can it integrate with my existing chartplotter?
Absolutely, via NMEA 2000 or 0183, it shares GPS data and receives position info from compatible MFDs like Raymarine Axiom series.
What weather features does it offer?
Tune into 72 NOAA channels with weather alerts that interrupt routine scanning to broadcast urgent forecasts.
How rugged is the Ray63 for marine use?
Rated IPX6 for driving rain and IPX7 for 1m submersion (30 min), it thrives in -20°C to +60°C conditions.
Does it include a public address function?
Yes, connect an external speaker for vessel-wide announcements, ideal for safety briefings or docking instructions.
What's the range on 25W transmit power?
Typically 20-25 nautical miles to similar setups, depending on antenna height, conditions, and terrain—excellent for offshore reach.
Raymarine’s Ray63 radio comes with oversized controls and a big screen for easy operation offshore. Ray63 is a full-function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver. The Ray63 also supports 1 wired or 2 wireless RayMic controllers for true multi-station control and intercom capability.
Raymarine E70516 Attributes
- Type: Fixed Mount
- Countries: United States And Canadian Channels
- Power Output (W): 25 Watt
- Automatic Identification System (AIS): Without AIS
- Number Of NOAA Weather Channels: 72
- With Weather Alert: Yes
- GPS Capable: Yes
- With Bluetooth Technology: No
- Public Address System: PA System Capable
- Rechargeable Battery Type: Lithium Ion
- With Key Lock: No
- Display Type: LCD
- Color: Black
Raymarine E70516 Features & Benefits
- Full-Sized Marine VHF With Digital Selective Calling
- Wired Or Wireless Expansion With Optional RayMic Handset Stations
- Built-In GPS Or GNSS Receiver With Connection Point For Optional External Antenna
- NMEA2000 And NMEA0183 Networking For Integration With Onboard Systems
- Audio Output Connection For Optional Passive Remote Speaker
- Features Surface And Trunnion Mount Kits
- Styled To Compliment The Axiom Family Of Multifunction Displays
- Limited 2 Year Warranty
Raymarine E70516 Installation Instructions
- VHF DSC Radio Troubleshooting guide 82417-1-EN (1).pdf
- Ray53 Ray63 Ray73 Installation and Operation instructions 81381-5-EN.pdf
Raymarine E70516 Warranties
Raymarine E70516 Technical Bulletins
- Ray53 Ray63 Ray73 Installation and Operation instructions 81381-5-EN.pdf
- VHF DSC Radio Troubleshooting guide 82417-1-EN (1).pdf
Ray63 Dual Station VHF Radio with GPS
Raymarine’s Ray63 radio comes with oversized controls and a big screen for easy operation offshore. Ray63 is a full-function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver. Simply program your boat’s MMSI number into the Ray63 and immediately benefit from the enhanced calling and safety features of DSC. The Ray63 supports both NMEA2000 and legacy NMEA0183 networking which enables it to connect with other onboard electronics. Ray63 also supports the connection of an optional remote speaker (A80542) to provide audio at a second location.
Ray63 also supports dual control stations with the addition of the optional RayMic second station kit. With an oversized LCD and simple controls, the RayMic is a compact all-in-one handset that fits easily on any secondary helm, tower or navigation station. Use RayMic for station-to-station intercom capability too.
Ray63 was designed to comply with the latest international regulations and includes a connection point for an optional GPS/GNSS antenna. The optional antenna improves the GPS reception when the radio is mounted below deck, in an enclosed pilothouse, or inside a metal enclosure.
Ray63 features an attractive industrial design that complements Raymarine’s Axiom family multifunction displays. The radio includes both a standard trunnion mounting kit as well as surface mounting hardware.
Features:
- Full-sized marine VHF with Digital Selective Calling
- Optional RayMic second station kit for full remote control
- Built-in GPS/GNSS receiver with an optional external antenna connection
- Surface and trunnion mount kits included
- Compliments the style and design of Axiom multifunction displays
Ray63 dual-station VHF radio with GPS function Raymarine's Ray63 radio has large controls and a large screen, which can be easily operated at sea. Ray63 is a fully functional VHF marine...
SKU: NVN-75008
MPN: E70516
UPC: 723193826478
