Icom M605 25W VHF AIS Rear Mic Connector
Icom M605 25W VHF AIS Rear Mic Connector — Product description
The M605 is not just a radio. It’s a system that allows the user choices on how to set up the radio with up to three stations. Boaters can now add an exclusive complete display as another station on the vessel along with two COMMANDMICS™. Customers will appreciate the radios large bright display that includes night mode to view easily in the dark. The full featured M605 also gives customers the option of the radio with an integrated AIS receiver. The best just got better. The M605 gives the user flexibility in setting up their radio system on their boat. Remotely control up to three controllers using all the M605 functions with the HM-195 series COMMANDMIC™ and/or the RC-M600 Command Head. Either option can be used as an intercom between the radio and the unit, as well.
Icom M60541USA Attributes
- Type: Fixed Mount
- Countries: United States/Canadian/International Channels
- Power Output (W): 25 Watt
- Automatic Identification System (AIS): Yes
- With Weather Alert: Yes
- GPS Capable: Yes
- Public Address System: PA System Capable
- Display Type: LCD
- Color: Black
Icom M60541USA Features & Benefits
- Active Noise Cancelling
- Last Call Voice Recording Saves The Last Two Minutes Of The Last Incoming Call Or Start Recording Manually
- Integrated GNSS Receiver
- Weather And Alert Channels
- AquaQuake® Draining Function
- Instant Access To Channel 16 And Channel 09 Call Channel
- All Icom Marine Fixed Mount Products Support The Universal Communications Protocol, NMEA0183®, Providing GPS And Navigational Information
- Limited 3 Year Warranty
Icom M60541USA Installation Instructions
Icom M60541USA Technical Bulletins

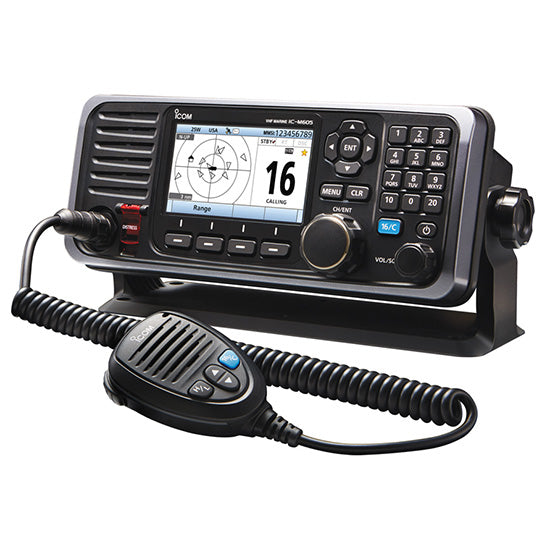

Icom M605 VHF AIS Receiver fixed mount with color display and rear mic connector
Model: M605 41 USA- 4.3" wide color TFT LCD
- Night mode ensures readability in dark places
- Intuitive user interface
- NMEA2000™ and NMEA0183 connectivity
- Class D DSC
- Active noise cancelling
- Last call voice recording
- 30W listen back hailer
- Built-in horn/foghorn
- IPX8 submersible (1 m depth of water for 60 minutes)
- Dual and Tri-watch functions
- Weather channels with alert function
- DSC Multi-task function
- AquaQuake™ draining function
- Instant-access button for Channel 16 and call channel
- Supplied speaker microphone, HM-205RB can be connected to the rear panel
All functions of the IC-M605 (including DSC and distress operation) can be remotely controlled with up to three controllers, RC-M600 COMMAND HEAD and/or HM-195 series COMMANDMIC™, with an intercom function available among the main radio and controllers. The system allows for maximum operating flexibility anywhere on your boat.
A combination of the directional keypad and soft keys provides simple operation. Most used functions are assigned to soft keys (at the bottom of the display) for quick one push function access. The large ten-key pad enables you to smoothly enter channel numbers, MMSI numbers with ID names and so on.
The IC-M605’s internal speaker enhances intelligibility of received calls. The waterproof, paper speaker-cone provides superior sound quality with a wide frequency range and a flat frequency response for powerful, yet clear audio.
A weak signal adjacent to a strong signal can be clearly received by the IC-M605. Its commercial grade receiver performance (selectivity and IMD: more than 80 dB) provides reliable communication at all times.
The GNSS (GPS, GLONASS and SBAS) receiver is integrated in the IC-M605. Position information can be simply received with connection to the supplied GNSS antenna with 5 m cable, UX-241.
The Active Noise Canceling digitally removes background noise from both transmit and receive audio and provides clear communication in a noisy maritime environment.
When connected to the optional horn speaker, SP-37, you can talk with crews on the deck or shore from the radio’s microphone and can hear any reply via the horn speaker. Also available the RX hailer function and four patterns of automatic foghorn.
The last call voice recording function automatically saves up to two minutes of an incoming call. Don’t miss any incoming messages.
Using NMEA 2000™ connectivity, the radio can exchange GNSS, AIS reports, DSC call information data, radio frequency and PGN list data on the network. NMEA 0183/-HS GNSS position data can also be converted to NMEA 2000™ data for other equipment
With an optional voice scrambler unit, UT-112, the IC-M605 provides 32 tone secure conversation. This function is useful when you want to share private information with consort ships.
With an integrated AIS receiver, the IC-M605 can show real-time AIS vessel traffic information on the display. The AIS combo screen enables you to monitor the AIS plotter during basic operation. You can directly call a selected AIS target from the AIS screen using an individual DSC call.
Specifications| General | |
| Usable channels | USA, CAN, INT, WX channels |
| Operating temperature range | —20°C to +60°C; —4°F to +140°F |
| Antenna impedance | 50 ? (SO-239) |
| Transmitter | |
| Output power (at 13.8 V DC) | 25 W, 1 W |
| Max. frequency deviation | +/- 5 kHz |
| Frequency tolerance | +/- 5 ppm |
| Spurious emissions | Less than —70 dBc (at 25 W) |
| Residual modulation | More than 40 dB |
| Adjacent channel power | More than 70 dB |
| Receiver | |
| Intermediate frequency CH70 | 30.15 MHz, 450 kHz (1st/2nd) 21.70 MHz, 450 kHz (1st/2nd) |
| Sensitivity (at 12 dB SINAD) CH70 (1% BER) | 0.22 µV typical 0.71 µV emf typical |
| Adjacent channel selectivity CH70 (1% BER) | More than 80 dB More than 80 dBµ emf |
| Spurious response CH70 (1% BER) | More than 77 dB More than 73 dBµ emf |
| Intermodulation CH70 (1% BER) | More than 80 dB More than 73 dBµ emf |
| Hum and noise | More than 40 dB |
| Audio output power (at 10% distortion) | More than 15 W with a 4 Ω external speaker |
| Input Voltage | 13.8 V DC (11.7—15.9 V DC) |
| Input Draw | Tx 25 W output 6A Rx Max. audio 8A |
What's in the Box:
- M605-41 USA
- Hand microphone (HM-205RB)
- GNSS antenna (UX-241)
- PC power cable
- Mounting bracket kit
- OPC2384 Adapter Cable
SKU: NVN-1003297
MPN: M605 41 USA
UPC:
Technical specifications
| Brand | Icom |
| Model | Icom M605 25W VHF AIS Rear Mic Connector |
| SKU / MFR# | 1003297 |
