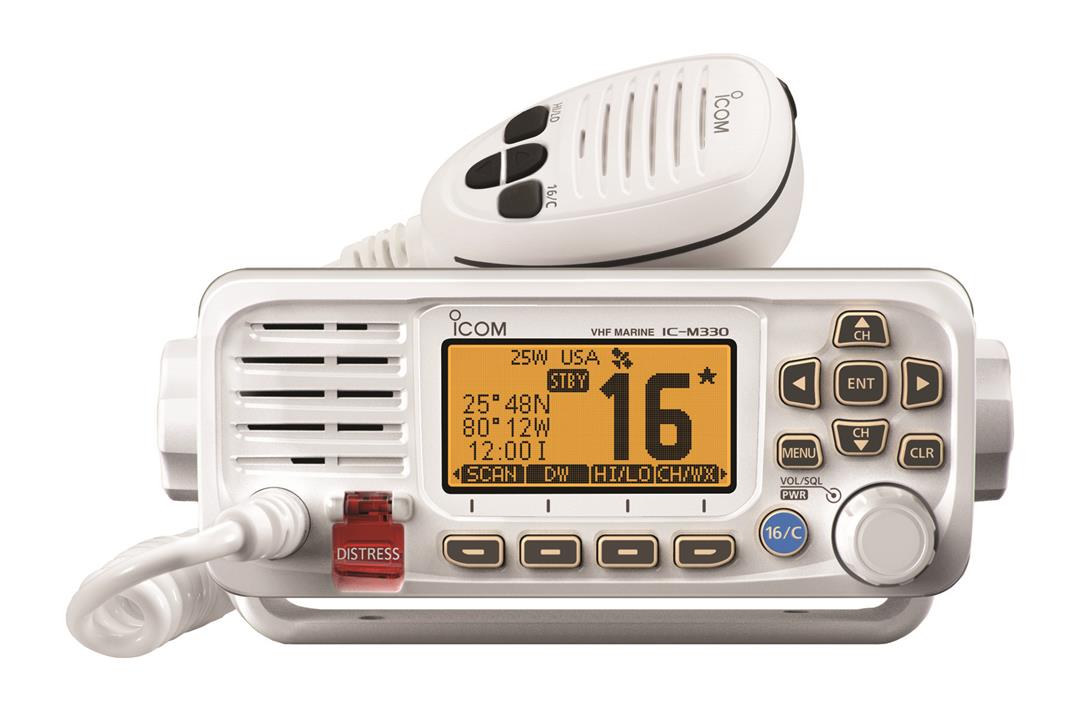

Icom M330 VHF Radio Compact w/GPS - White
Icom M330 VHF Radio Compact w/GPS - White — Product description
Icom M330G Compact Marine VHF RadioWith Built-In GPS and External AntennaThe M330 series gives you the same performance and feature set as the M324 series, but now within a smaller package to fit in tight spaces. Priced at a great value the M330 series still includes the exclusive AquaQuake draining feature, 25 watts of power, IPX7 Waterproof rating, scan/select scan and Icom's exclusive user interface for ease of use.The M330's small size makes it easy to install into vessels with limited space. The dot-matrix display is clear and easy to read. A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.The M330G includes a GPS receiver and an easy to install external GPS puck antenna for better accuracy and performance. The small compact GPS puck antenna provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. This information is used for DSC (Digital Selective Calling) calls. Hook up the GPS puck antenna for the most accurate GPS and DSC functionality to work.
Icom M330GWHITE Attributes
- Type: Fixed Mount
- Countries: United States/ Canadian/ International Channels
- Power Output (W): 25 Watt
- Number Of NOAA Weather Channels: 10
- With Weather Alert: Yes
- GPS Capable: Yes
- Public Address System: No PA System
- With Key Lock: No
- Display Type: Full Dot Matrix
- Color: White
Icom M330GWHITE Features & Benefits
- AquaQuake draining function
- Built-in Class D DSC with a CH70 dedicated receiver
- Common NMEA interface for external GPS/NAV connection
- Tag scan and favorite channel functions
- Dual/tri-watch function for monitoring CH16 and/or call channel
- Priority scan function
- Display and keypad backlighting
- Weather channel with weather alert
- 3-digit or 4-digit channel display selectable
- Limited 3 Year Warranty
Icom M330GWHITE Installation Instructions
Icom M330GWHITE Technical Bulletins
M330 VHF Radio Compact with GPS - White
Top Performance Ultra Compact VHF
Ultra-Compact Body, Flexible Installation
The IC-M330E/GE has a palm-sized compact body (W×H×D; 156.5 × 66.5 × 110.1 mm; 6.2 × 2.6 × 4.3 in). The radio can be installed in a limited space.
Speaker Delivers Dynamic, Clear Audio
A speaker design delivers dynamic and clear sound over a wide bass and treble range. The IC-M330/G provides distortion-free clear audio even at full volume.
Built-in Class D DSC
The radio monitors CH 70 continuously, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request, and DSC test calls. Class-Leading Receiver PerformanceThe radio provides reliable communication in RF busy environment like a marina. (Selectivity and IMD: more than 70 dB)
Intuitive Operation with Icom Marine User Interface
A combination of the directional keypad and soft keys provides a simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.
GPS Receiver Built-in (IC-M330G)
Supplied GPS antenna A built-in GPS receiver provides your location, bearing, and speed by using information from GPS, GLONASS, and SBAS. The acquired position information can be used for DSC calls.
Made in Japan Quality and Reliability
All Icom products are tested to pass rigorous in-house tests as well as environmental tests at the Wakayama Icom plant before shipping. Our world-leading products and quality is tradition.
Features:
- IPX7 waterproof (1m depth of water for 30 minutes)
- AquaQuake™ prevents audio degradation from a water-logged speaker
- Common NMEA interface for external GPS/NAV connection
- MA-500TR Class B AIS transponder compatible
- Tag scan and favorite channel functions
- Dual/tri-watch function for monitoring CH16 and/or call channel
- Priority scan function
- Display and keypad backlighting
- External speaker connection
- 3-digit or 4-digit channel display selectable
- Supplied hand microphone, HM-235B/W with channel up/down keys and a CH16/Call channel key
SKU: NVN-89512
MPN: M330G WHITE
UPC: 731797037527
