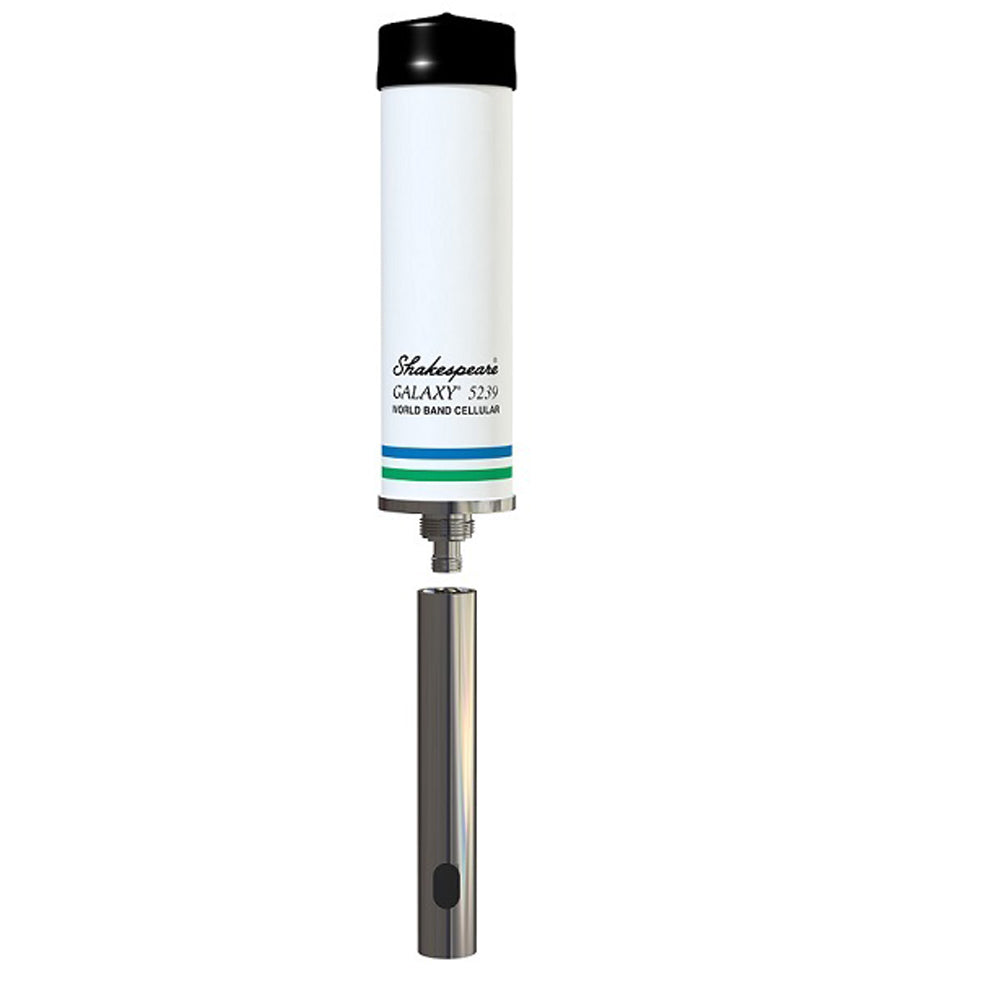

Shakespeare Cellular/Wi-Fi World Band Galaxy Antenna

9.25" (.23m) World Band Cellular Antenna The Galaxy 5239 antenna is our smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1" -14 threaded mounts.

The Galaxy® 5239 antenna is our smallest Galaxy antenna but don’t let the size fool you. This world-band antenna provides coverage for 5G, 4G, 3G, and WLAN systems for Cellular, PCS, AWS, and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature-rich antenna is at home on virtually any watercraft and is fitted with a stainless steel ferrule and N-connector that are compatible with all Shakespeare® 1 Inch -14 threaded mounts.

Shakespeare 5239 Attributes

• Router: Without Router
• Connectivity: 802.11N
• Data Bandwidth: 100 Megabits Per Second
• Frequency: 698 To 2700 MHz
• Gain: 3-4 dB
• Security Encryption: VSWR: 1.8
• Input Voltage: 12 Volt
• Power: 100 Watt
• Dimensions: 9-1/4 Inch Height
• Color: White

Shakespeare 5239 Features & Benefits

• Full Band 698 To 2700 Megahertz Broadband
• 100 Watt Maximum Input Power
• All Are Engineered To Withstand The Rigors Of The Marine Environment
• Easy To Install
• Limited 2 Year Warranty

Cellular/Wi-Fi World Band Galaxy Antenna

The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.

Features:

• Full Band (698 - 2700 MHz) Broadband
• 2G/3G/4G and WLAN systems
• Wi-Fi 802.11n compatible
• Designed for marine use
• Omni-directional antenna 3-4 dB Gain.
• Easy to install
• Includes FME Cables

Specifications:

• Frequency: 698-960/1700-2700 MHz
• Input Impedence: 50 ohm
• Antenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHz
• VSWR: ≤ 1.8
• Power Rating (W): 10
• Polarization Type: Vertical
• Radiation: Omni-Directional
• Maximum Power (W): 100
• Connector Type: N-female
• Dimension: 9.25" H x 2.625" D
• Color: White
• Operating Temperature (F): -22 to +176
• Mounting: 1" x 14 Thread Mount
• Ground Plane: Internal
• Material: Fiberglass

Cellular/Wi-Fi World Band Galaxy Antenna The Galaxy 5239 antenna is Shakespeares’ smallest Galaxy antenna, but don’t let the size fool you. This worldwide antenna provides...
SKU: NVN-55773
MPN: 5239
UPC: 719441900960
