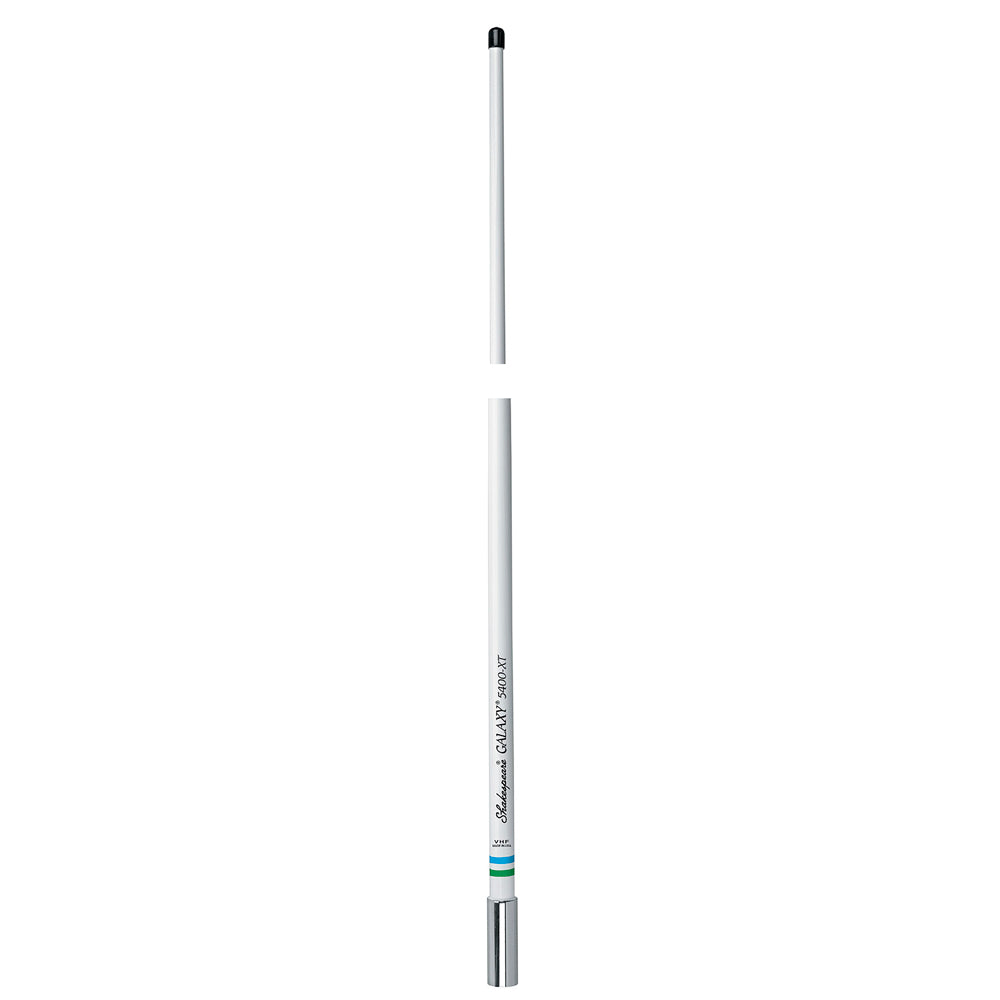

Shakespeare 5400-XT Galaxy 4' VHF Antenna

Galaxy ® antennas have long been revered as the industry standard for both performance and quality. Following a 20-plus year tradition, Shakespeare ® Galaxy ® antennas ensure reliable communication through high-quality materials and master craftsmanship with each and every antenna.

Shakespeare 5400XT Attributes

• Compatibility: VHF Marine Radio
• Type: Monopole
• Length: 4 Feet
• Gain: 3 Decibel
• Mounting Type: Ratchet Mount
• Color: White
• Material: Stainless Steel Ferrule

Shakespeare 5400XT Features & Benefits

• Thick Brass And Copper Elements Provide Greater Range, Clarity, And Efficiency
• Stainless Steel Ferrule Prevents Rust
• High-Gloss Polyurethane Finish Prevents Yellowing
• Easy To Install
• Limited 5 Year Warranty

5400-XT Galaxy 4' VHF Antenna

Center-fed 1/2 wave coaxial sleeve

The compact Galaxy® 5400-XT is an outstanding, general purpose 4' antenna of heavy duty construction for general purpose communications. Its at home on T-tops, hard-tops, and other positions aloft, where its small size can deliver maximum range.

Features:

• Brass and copper elements for maximum range
• Stainless steel ferrule with standard 1"-14 thread
• Includes 20' RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years
• Includes FME Cables

Technical Specifications:

Frequency:	VHF Marine Band
Bandwidth:	5 MHz within 2.0:1 VSWR
SWR:	nominally 1.5:1 at 156.8 MHz
Gain:	3 dB
Max Input (Watts):	50 watts
Height (feet):	4

The compact Galaxy 5400-XT is an excellent general-purpose 4'heavy-duty antenna for general-purpose communications. Use T-tops, hard tops and...
SKU: NVN-14037
MPN: 5400-XT
UPC: 719441100605
