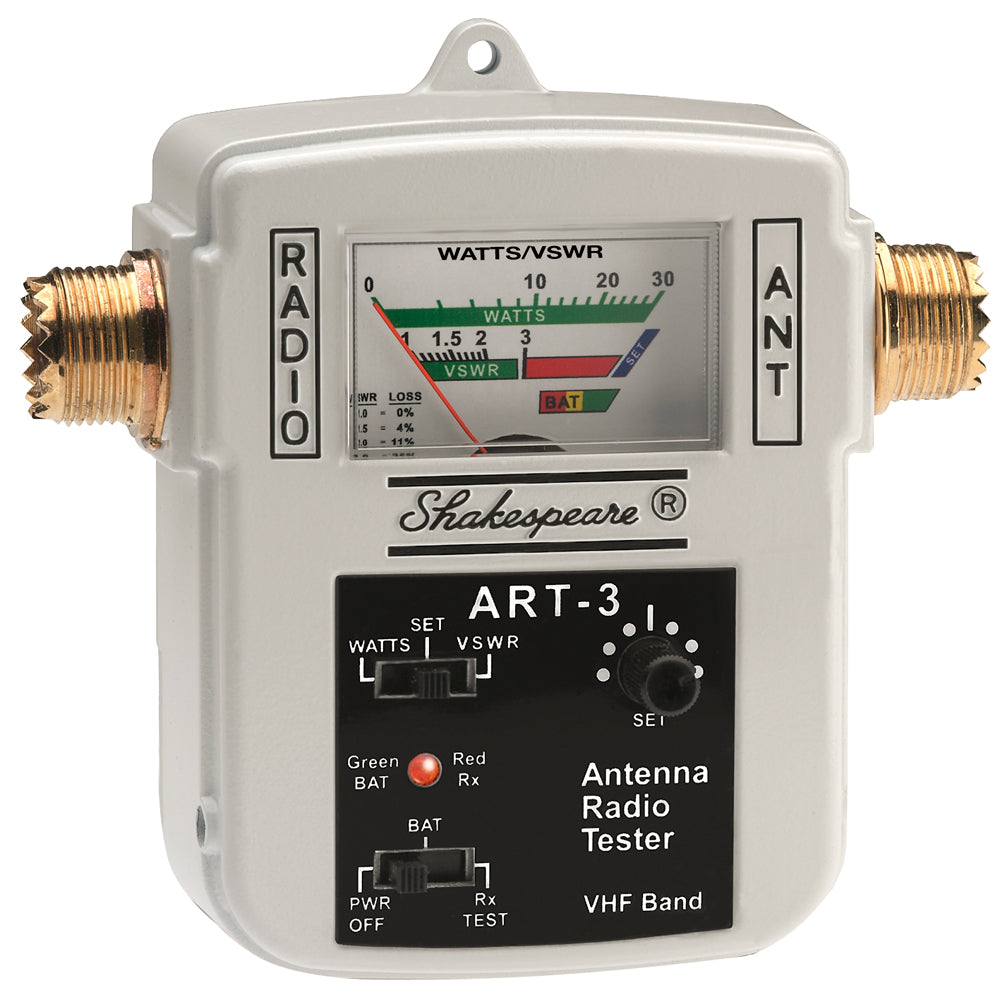

Shakespeare ART-3 Antenna Radio Tester

No need to call for a radio check when you have this compact, easy to use, unit on-board. Unlike other meters in its class, the ART-3 tests receiver function as well as output power and VSWR (antenna efficiency). It is powered by an internal battery or can be connected to ships 12 VDC with the supplied power cable. Battery level can be checked at the flip of a switch. No serious boater should be without an ART-3.

For more than a century, Shakespeare has built a tradition on quality products and service, excellence in everything we do and a drive for innovation. Our pioneering ideas have made Shakespeare the most trusted brand in the marine antenna industry. Known for superior dependability, durability and performance, our products are the gold standard in the industry.

Shakespeare ART3 Attributes

• Accuracy: +/- 10 Percent
• Connector Style: SO-239 Connector
• Display: Analog
• Frequency: 155 To 158 Mega Hertz
• Impedance: 50 Ohm
• Material: Aluminum
• Power: 30 Watt
• Type: Voltage Standing Wave Ratio (VSWR)

Shakespeare ART3 Features & Benefits

• Tests Receiver Function As Well As Output Power And VSWR
• Provides Tradition Of Quality, Excellence, And Innovation
• Shakespeare Products Have Superior Dependability, Durability, And Performance
• Easy To Install
• Limited 2 Year Warranty

Antenna Radio Test
Part #: ART-3

No need to call for a radio check when you have this compact, easy to use, unit on-board. Unlike other meters in its class, the ART-3 tests receiver function as well as output power and VSWR (antenna efficiency). It is powered by an internal battery or can be connected to ships 12 VDC with the supplied power cable. Battery level can be checked at the flip of a switch. No serious boater should be without an ART-3.

• Specifications:

  • Frequency Range: 155-158 MHz

  • RF Power Scale: 0 to 30 watts

  • Impedance: 50 ohms

  • Accuracy: 10%

  • Connectors: SO-239

  • Signal Generator: 3 KHz Deviation

  • Tone: 1000 Hz

  • RF Level: -115 dBM (approx.)


• Die-cast aluminum construction

Style 4079 one-meter cable available (sold separately) to connect the ART-2 or ART-3 to your VHF Radio

Antenna radio test part: art-3, when you have a compact and easy-to-use airborne unit, no radio inspection is required. Unlike other instruments in similar products, the art-3 test...
SKU: NVN-30554
MPN: ART-3
UPC: 719441151034
