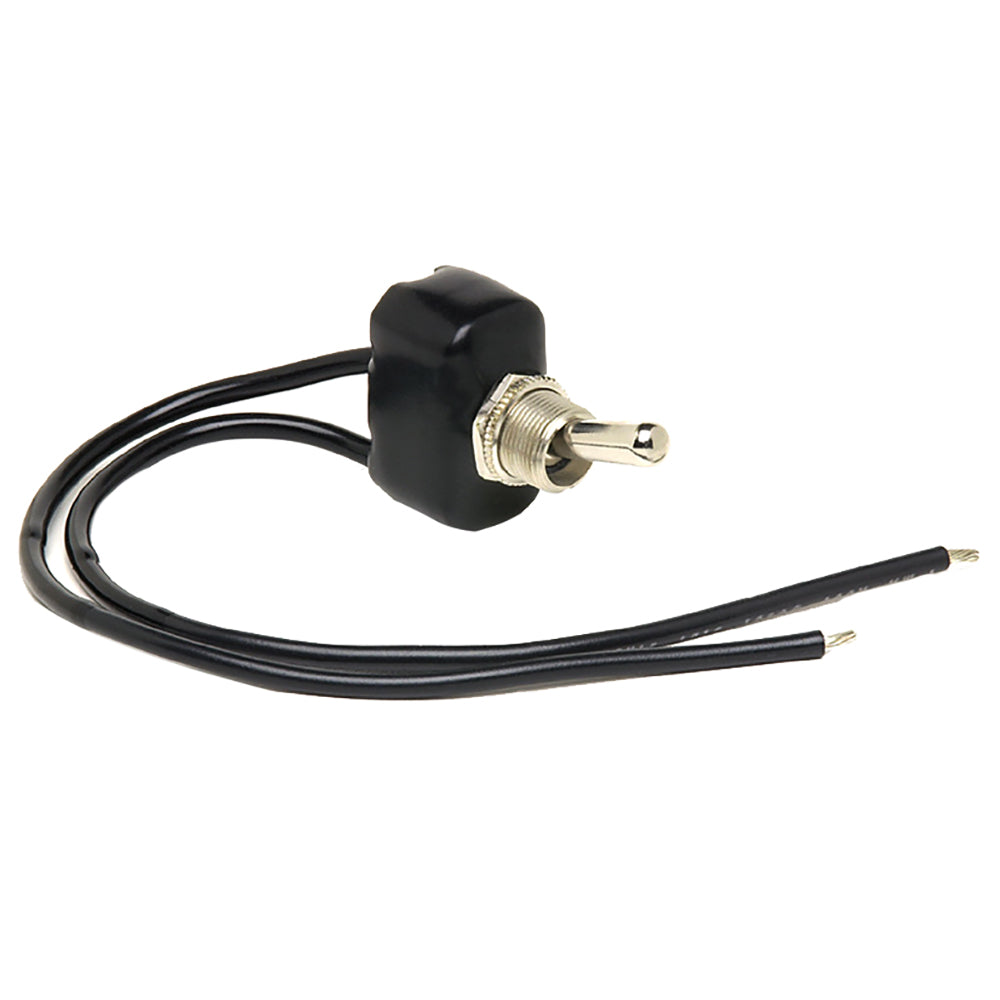

Cole Hersee Heavy-Duty Toggle Switch SPST On-Off 2-Wire

Heavy-Duty Toggle Switch SPST On-Off 2-Wire

Toggle Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The Standard Heavy Duty Toggle Switch Series is our most robust series of toggle switches, available in several configurations of actuators and circuitries.

Specifications:

• Mounting: Nickel Plated Brass Face Nut through 15/32 (11.90mm) Panel Hole *Part Number 5520: Black Finished Face Nut
• Voltage Ratings: 10A at 36V DC/15A at 24V DC/25A at 12V DC
• Current Rating (Continuous) in Amps: 10
• Voltage Rating (Max): 36
• Circuitry: SPST
• Input Terminals: 2 Leads (203mm 16AWG Stripped) 1 Plug - 2 Leads (203mm 6AWG Stripped) 1 Plug
• Housing: Weather-Resistant PVC-Coated Plasticized Housing
• Actuator: Standard Toggle
• Actuator Details: Nickel-Plated Brass - 17.4625
• Panel Thickness: Up to 1/4 (6.35mm) thick
• Contact Material: Silver
• Recommended Torque: On - None - Off

Heavy duty toggle switch SPST on-off 2-wire toggle switch is designed for general applications in harsh environments. Their installation, body and actuator functions are designed to simplify ease of use and extend the product life cycle. This ...
SKU: NVN-88881
MPN: 5582-10-BP
UPC: 632850632621
