Cole Hersee Lighted Tip Toggle Switch SPST On-Off 4 Blade
Cole Hersee Lighted Tip Toggle Switch SPST On-Off 4 Blade — Product description

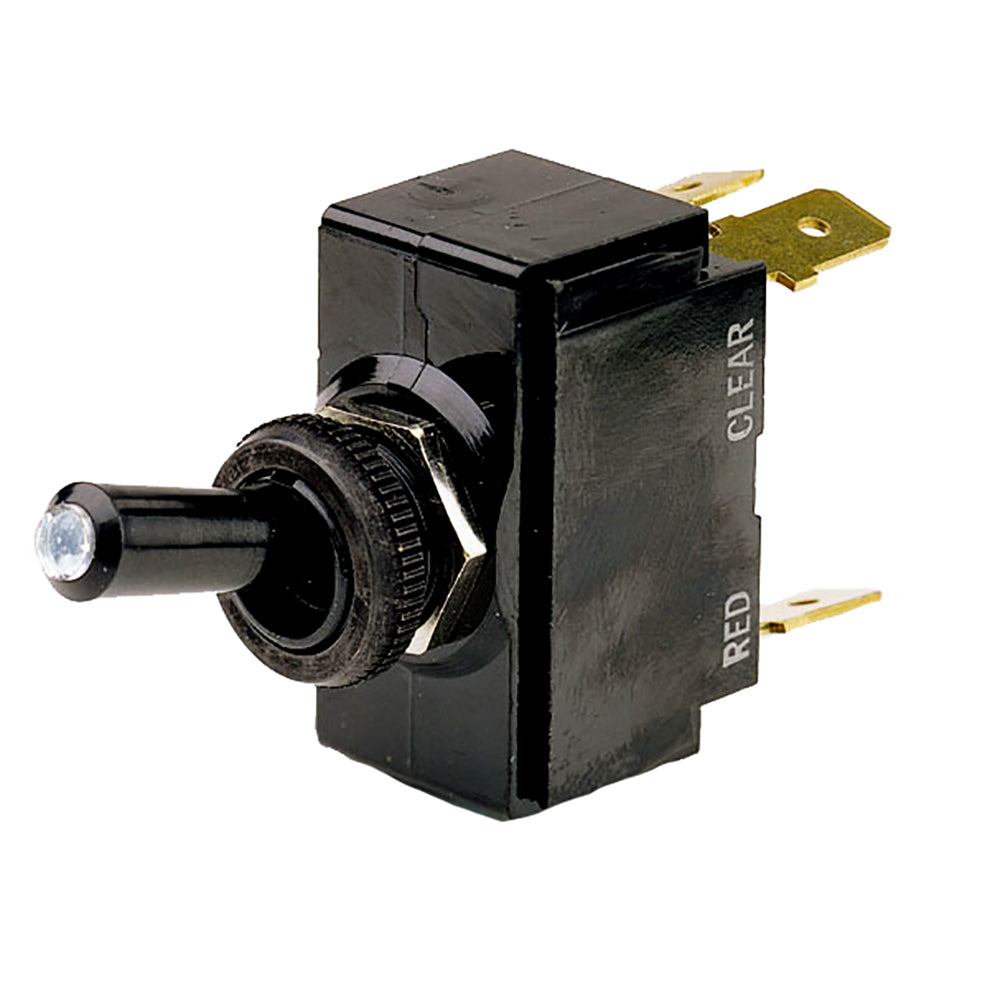

Lighted Tip Toggle Switch SPST On-Off 4 Blade
Independent illumination switches can be wired for dependent operation. Tip of handle is illuminated red in the On position, clear in the Off position. Tip of handle is illuminatedRed in the On position, illuminated Clear in the Off position. Silver contacts. 15/32" -32 thread mounting stem. Nickel-plated brass hexnut. Black plastic handle, housing and facenut. Keyway in the down position. Blade terminals. 25A at 12V DC. Plastic facenut can be replaced with black metal facenut 83252.
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product description: Littelfuse acquired Cole Hersee in 2010 to provide its customers with a broader product portfolio in the commercial vehicle market. Since Cole Hersee...
SKU: NVN-69484
MPN: M-54111-01-BP
UPC: 632850559089
Technical specifications
| Brand | Cole Hersee |
| Model | Cole Hersee Lighted Tip Toggle Switch SPST On-Off 4 Blade |
| SKU / MFR# | 69484 |
