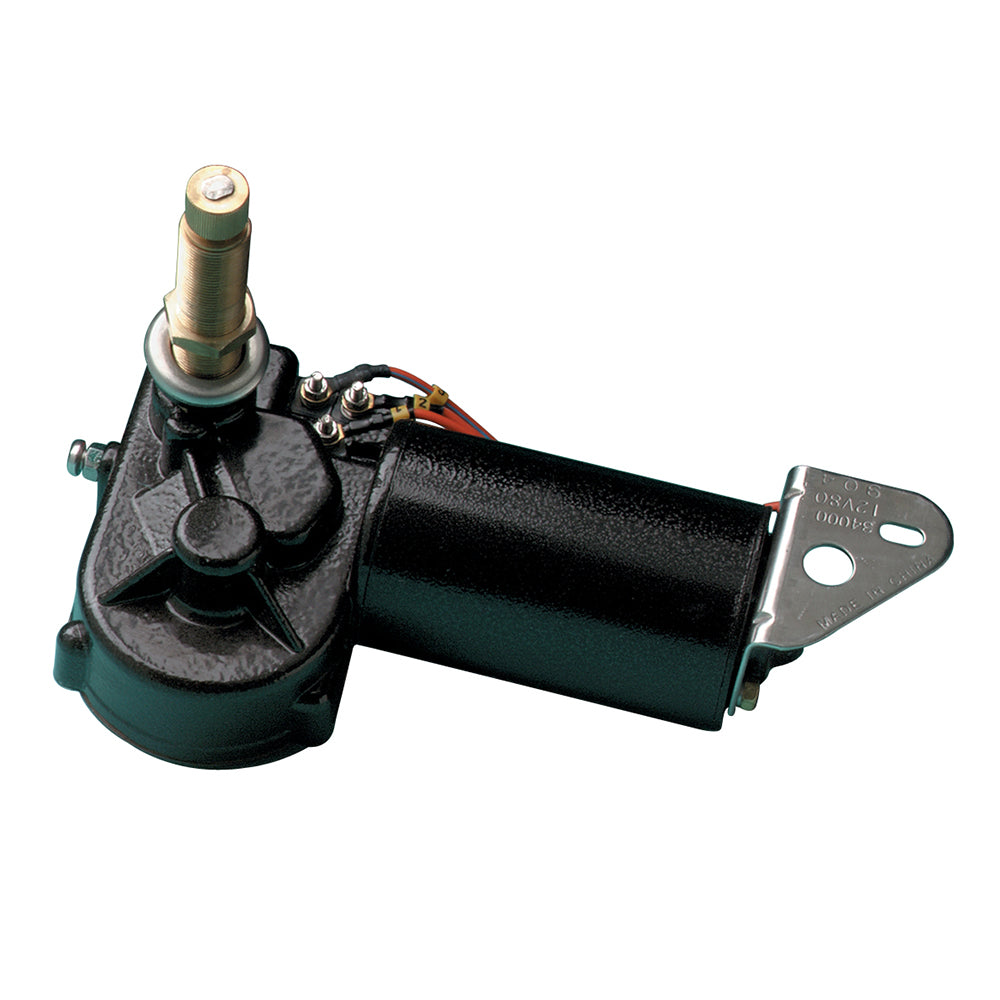

Marinco Wiper Motor MRV 12V 2.5" Shaft - 80°

Wiper Motor MRV 12V 2.5" Shaft - 80°

The MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less.

Features:

• Factory pre-set sweep of 80 or 110 degrees adjustable to 45, 60, 80 or 110 degrees
• 0.625" diameter shaft (16 mm)
• Available in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes 0.5" length of knurled arm fitting)
• Corrosion-resistant casing
• Heavy-duty motor with right angle drive
• Two-speed motor, can be operated as one speed
• Solid brass knurled drive nut with brass and stainless steel drive shaft
• Adjustable right or left self parking, coast to park
• Retail version includes 5 amp fuse and holder
• Stainless steel fasteners and mounting bracket
• Use with three-position switch (not included)
• Compact size - 7.625" L x 4" W x 2" D
• Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
• Stall current: 11.5 to 13.0 amps
• No load current: 0.5 to 1.2 amps

The AFI wiper motor can easily power 22" x 22". Luxurious arm/blade combination or 20 inches x 20 inches. Perform combined prime arm/shovel operation at a sweep position of 80° or less. The factory scan is preset, but...
SKU: NVN-78177
MPN: 34000
UPC: 035028340005
