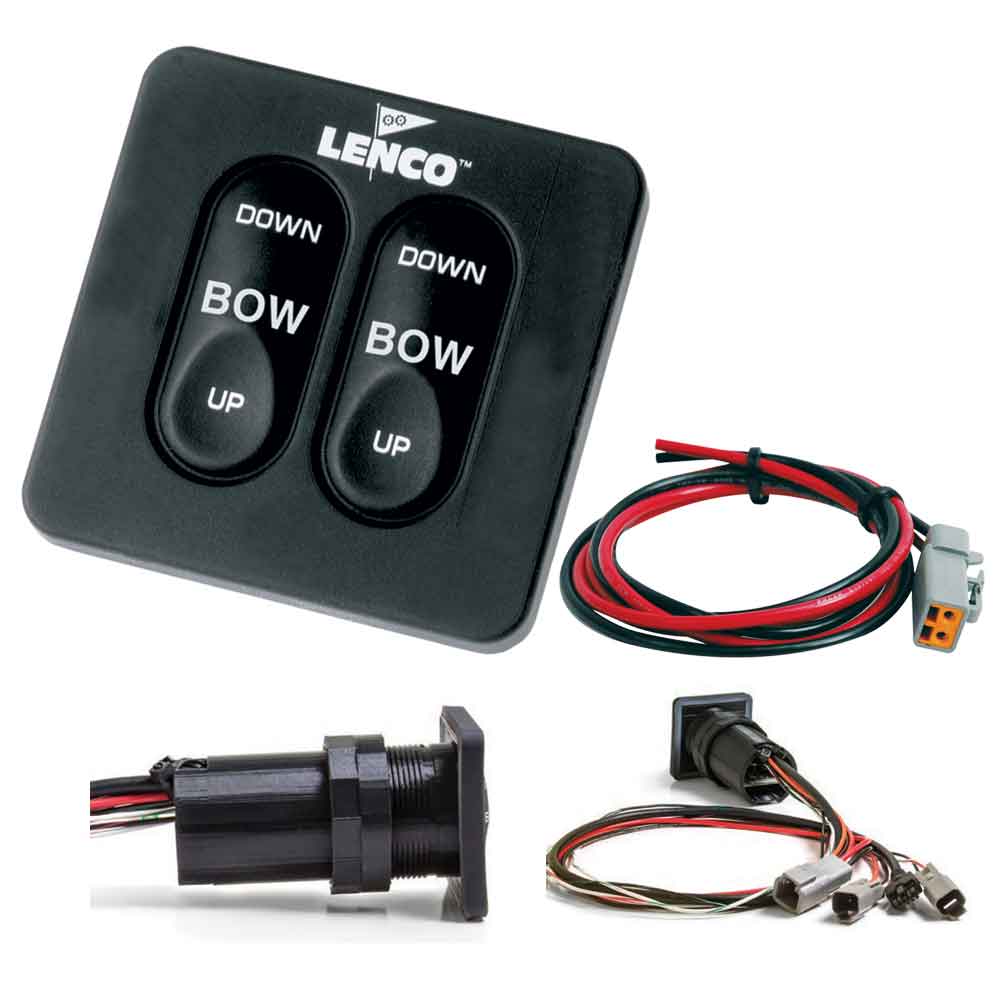

Lenco Standard Integrated Tactile Switch Kit w/Pigtail f/Single Actuator Systems

Lenco 15169001 Attributes

• Compatibility: 12/24 Volt Single Actuator Trim Tabs
• Type: Low Profile Standard Integrated Tactile Key Pad Switch

Standard Integrated Tactile Switch Kit with Pigtail for Single Actuator Systems

Complete your Lenco single actuator trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.

Features Include

• Simple, quick, Plug & Play installation
• Instant response
• Built-in retractor
• Low profile design
• Self-contained key pad with waterproof Plug & Play Deutsch connectors
• Wiring harness length 30" (76.2 cm) from the back of the switch bezel
• 36" power pigtail
• 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
• 4.08" clearance required from the back of the key pad's mounting location

ATTENTION: REPLACEMENT KEY PADS & CONTROL BOXES FOR 2016 & PRIOR SWITCHES ARE NOT COMPATIBLE WITH THIS SWITCH KIT.

Replacement parts are available and are sold separately.

Specifications

• 3 Year Warranty
• System Type: Single Actuator
• Compliance: CE Certified

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Standard integrated tactile switch kit with Pigtail f/dual actuator system The control box of this switch is integrated on the back of the switch keyboard. No outside...
SKU: NVN-62757
MPN: 15169-001
UPC: 874847007566
