Lenco 101XDS Short Extreme Duty Actuator - 12V - 2-1/4" Stroke w/5/16" Hardware
Lenco 101XDS Short Extreme Duty Actuator - 12V - 2-1/4" Stroke w/5/16" Hardware — Product description
Lenco 15057001 Attributes
- Stroke Length: 2-1/4 Inch
- Voltage: 12 Volt

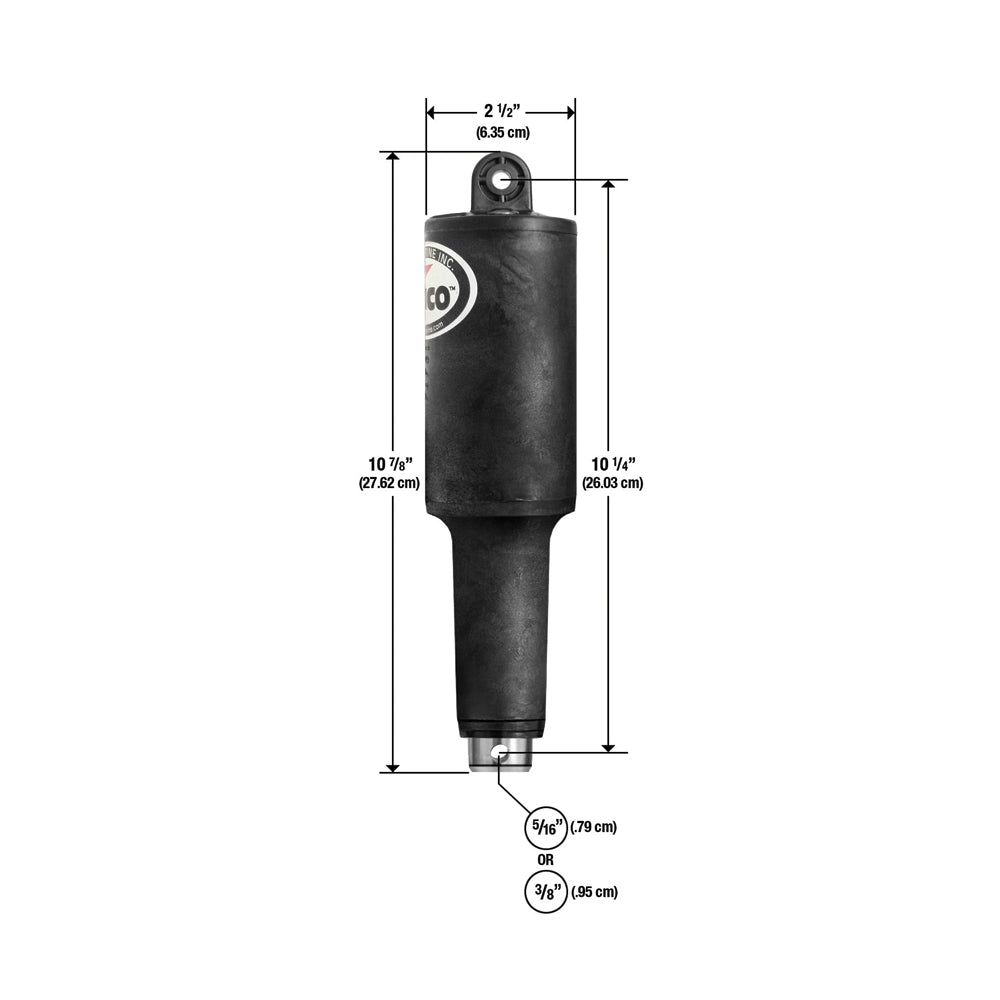

- Dimensions: 2-1/2 Inch Diameter x 10-7/8 Inch Length
- Mounting Hole Size: 5/16 Inch Top Hole And 5/16 Inch End Hole
- Includes: With 5/16 Inch Mounting Hardware/ 6 Feet Cable
Lenco 15057001 Technical Bulletins
101XDS Short Extreme Duty Actuator - 12V - 2-1/4" Stroke with Mounting Hardware
The 101 XDS Actuator is used with OEM specific kits and limited space applications. It is the shortest actuator manufactured. 2.25 stroke and overal length (tip to tip) is 10 7/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.
Specifications:
- Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
- Stronger top cap and mounting clevis design
- Improved pressure-tight torx screws
- Integrated wiper seal at actuator base
- Molded-in brass thrust bearing design
- Thicker and stronger motor housing wall
- Improved O-Ring design for more consistent seal
- Over-molded cable providing a stronger tighter seal
- Upper mounting bracket with gland seal
Features:
- Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
- Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
- Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion.
- 12 Volt
- 5/16" mounting hardware
- 6 foot cable
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Lenco Marine is a true industry leader in shipbuilding and shipbuilding. It not only produces decorative sheets, but also produces electric actuators, hatch lifts, switches and all new products...
SKU: NVN-56431
MPN: 15057-001
UPC: 874847003223
Technical specifications
| Brand | Lenco Marine |
| Model | Lenco 101XDS Short Extreme Duty Actuator - 12V - 2-1/4" Stroke w/5/16" Hardware |
| SKU / MFR# | 56431 |
