Lenco 101XD Extreme Duty Actuator - 12V - 2 1/4" Stroke - 3/8" Hardware

Lenco 15056001 Attributes

• Stroke Length: 2-1/4 Inch
• Voltage: 12 Volt

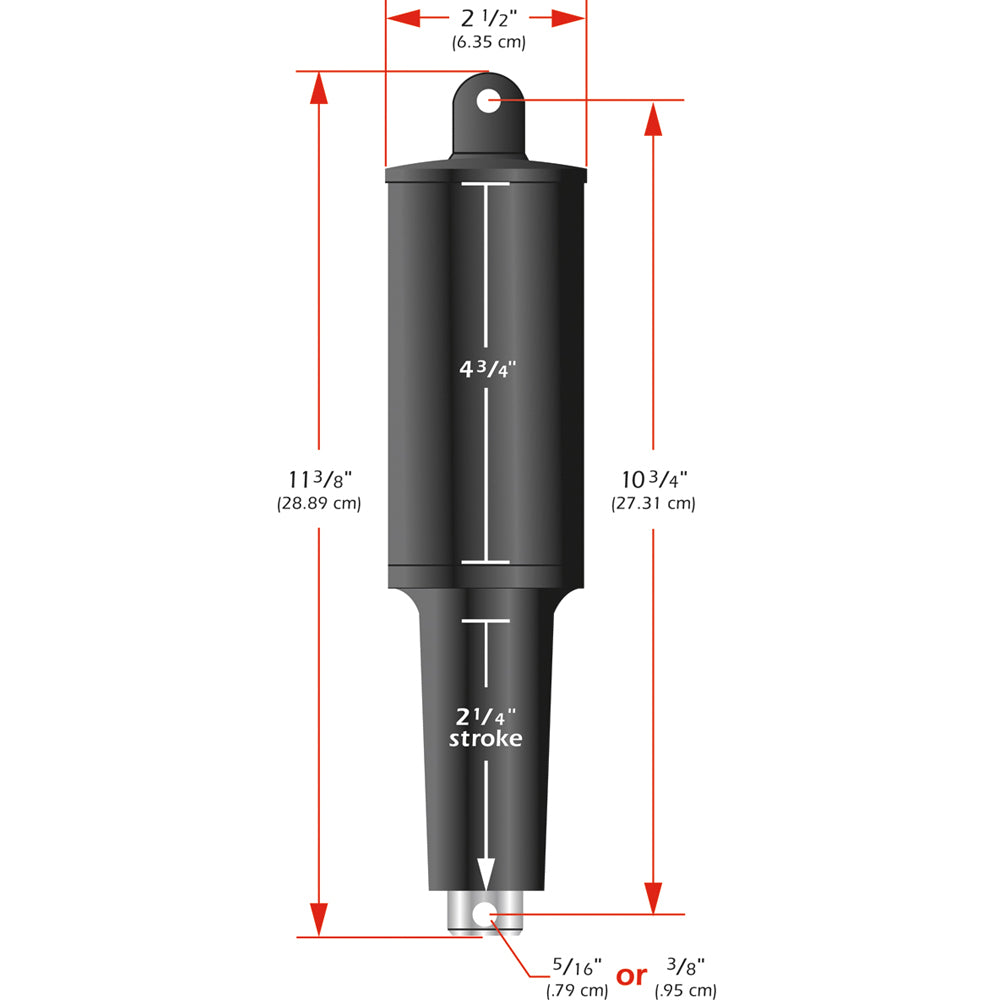

• Dimensions: 2-1/2 Inch Diameter x 11-3/8 Inch Length
• Mounting Hole Size: 3/8 Inch Top Hole And 3/8 Inch End Hole
• Includes: With 3/8 Inch Mounting Hardware/ 6 Feet Cable

Lenco 15056001 Technical Bulletins

• Trim_Tab_Actuator_Rep_Guide_2018_TCHDAT.pdf

101 XD Actuator- 12 Volt- 2-1/4  Stroke with Mounting Hardware

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 11^3/8 inches.   Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion.
• 12 Volt
• 3/8" mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Stroke size: 2-1/4". Top cover size: 3/8". Lenco Marine is a real industry leader in the shipbuilding industry, not only manufacturing decorative sheets, but also manufacturing electric actuators,...
SKU: NVN-29126
MPN: 15056-001
UPC: 874847003216
