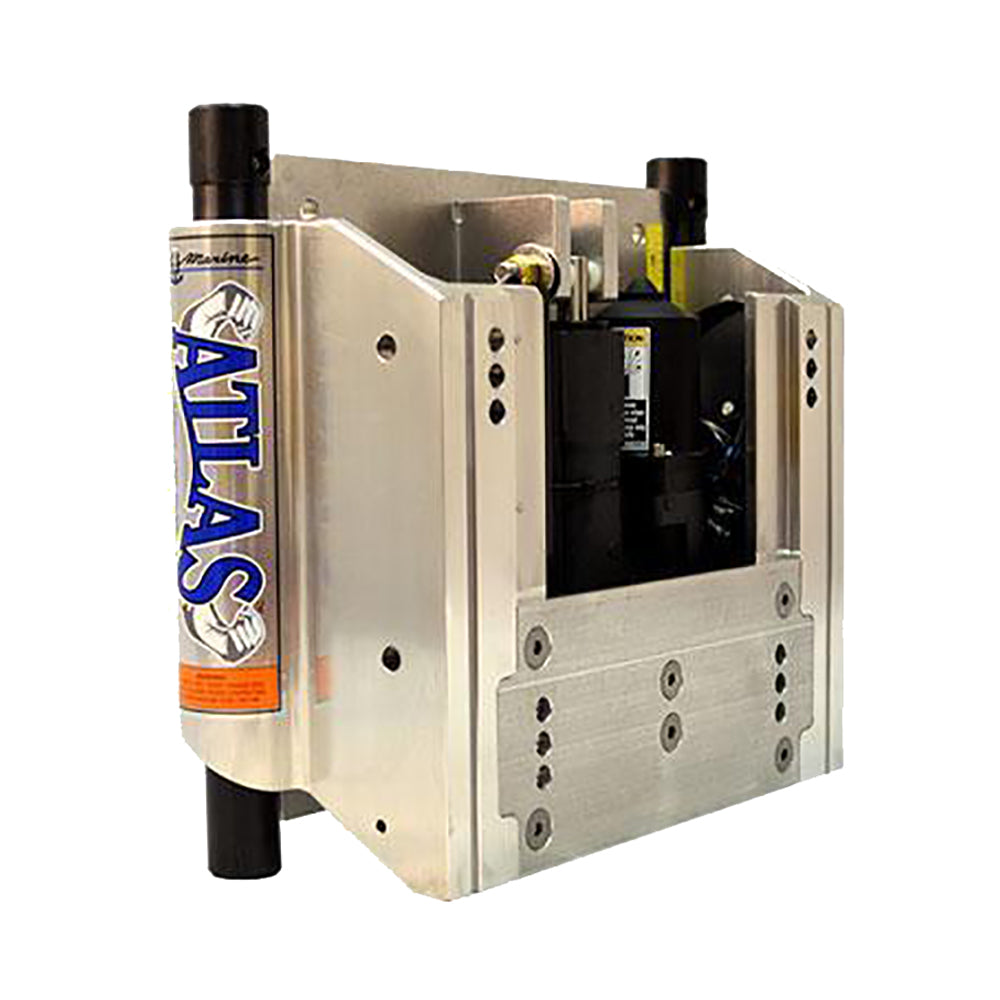

T-H Marine ATLAS 4" Set Back Hydraulic Jack Plate

The Atlas revolutionary design meets the demands of today's high performance outboards. The one piece design, featuring the innovative Rod and Slot lifting system, will handle the stresses from the heaviest and most powerful outboards, up to 300 Horse Power on the market today. All of the hydraulics are built into the jack eliminating the necessity of installing pumps and reservoirs inside the transom. The all new hydraulic unit is fast too. Lifting from bottom to top in 8 second.

T-H Marine AHJ4VDP Attributes

• Setback: 4 Inch
• Hydraulic Rise: 5-3/4 Inch
• Total Rise: 8-1/4 Inch To 9-3/4 Inch
• Horsepower: 300 Horsepower
• Adjustment: 7 Inch Vertical
• Finish: Polished
• Color: Silver
• Material: Aluminum
• With Rocker Switch: Yes
• With Relay Harness: Yes

T-H Marine AHJ4VDP Features & Benefits

• One Piece Design
• Featuring The Innovative Rod And Slot Lifting System
• 300 Maximum Horsepower
• Will Handle The Stresses From The Heaviest And Most Powerful Outboards
• Limited Lifetime Warranty

ATLAS 4" Set Back Hydraulic Jack Plate Polished

Rated for engines up to 300hp or up to 625 pounds dry weight.

5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE

• ATLAS™ is truly the best hydraulic jack plate in the world
• ATLAS™ is factory installed by more boat manufacturers than any other plate
• ATLAS™ is used by more professional fisherman than any other hydraulic jack plate
• ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets
• ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China

6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER

• ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied
• ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied
• ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that
• ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure
• ATLAS™ was the first plate to offer a very simple actuator replacement in the field
• ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement

"This high-tech, high-speed, one piece design features an innovative Rod and Slot lift system to handle the stresses from the heaviest and most powerful V6 outboards on the market. All hydraulics are built into the jack, eliminating the installation of pumps and reservoirs inside the transom as well as hydraulic hoses running through the transom. The high-tech engineered polymer rods are 6 times more abrasion resistant than steel and are manufactured from self-lubricating material. Lifts from top to bottom in 8 seconds and installs in half the time of comparable jacks. Handles all outboards including the powerful Verado V6 motors. Atlas Outboard Hydraulic Jack Plate, Setback Atlas is an all new design to meet the demands of today's high performance outboards. This one piece design featuring the innovative Rod and Slot lifting system will handle the stresses from the heaviest and most powerful V6 outboards on the market today. All of the hydraulics are built into the jack eliminating the necessity of installing pumps and reservoirs inside the transom. This all new hydraulic unit is fast too, lifting from bottom to top in 8 seconds! 350hp max."
SKU: NVN-81676
MPN: AHJ-4V-DP
UPC: 733572069402
