Schmitt & Ongaro Mini SS Single Drop-In Horn w/SS Grill - 12V Low Pitch

At Schmitt and Ongaro, we consistently seek innovative ways to satisfy the needs of our customers, providing superior quality marine products and unsurpassed service. We offer an array of marine products – from steering wheels, horns, wiper systems, and a host of accessories to fit a diverse range of boat types and marine applications. Throughout the years, our name has become synonymous with quality, value, safety, and service. Manufactures stainless steel marine steering wheels, polyurethane leather steering wheels, marine horns, marine wiper systems, and other premium marine products and accessories for the boating industry.

Schmitt/Ongaro 10050 Attributes

• Sound Type: Low Tone
• Diameter (IN): 3-1/4 Inch
• Color: Silver
• Sound Level (DB): 106 Decibels
• Low Tone Frequency (Hz): 410 Hertz
• High Tone Frequency (Hz): 430 Hertz
• Volt Rating: 12 Volt
• Ampere Rating: 3 Amp
• Material: Stainless Steel

Schmitt/Ongaro 10050 Features & Benefits

• Stainless Steel Construction
• 410 Hertz Horn
• Providing Superior Quality Marine Products
• For Marine Applications
• Easy To Install
• Limited 3 Year Warranty

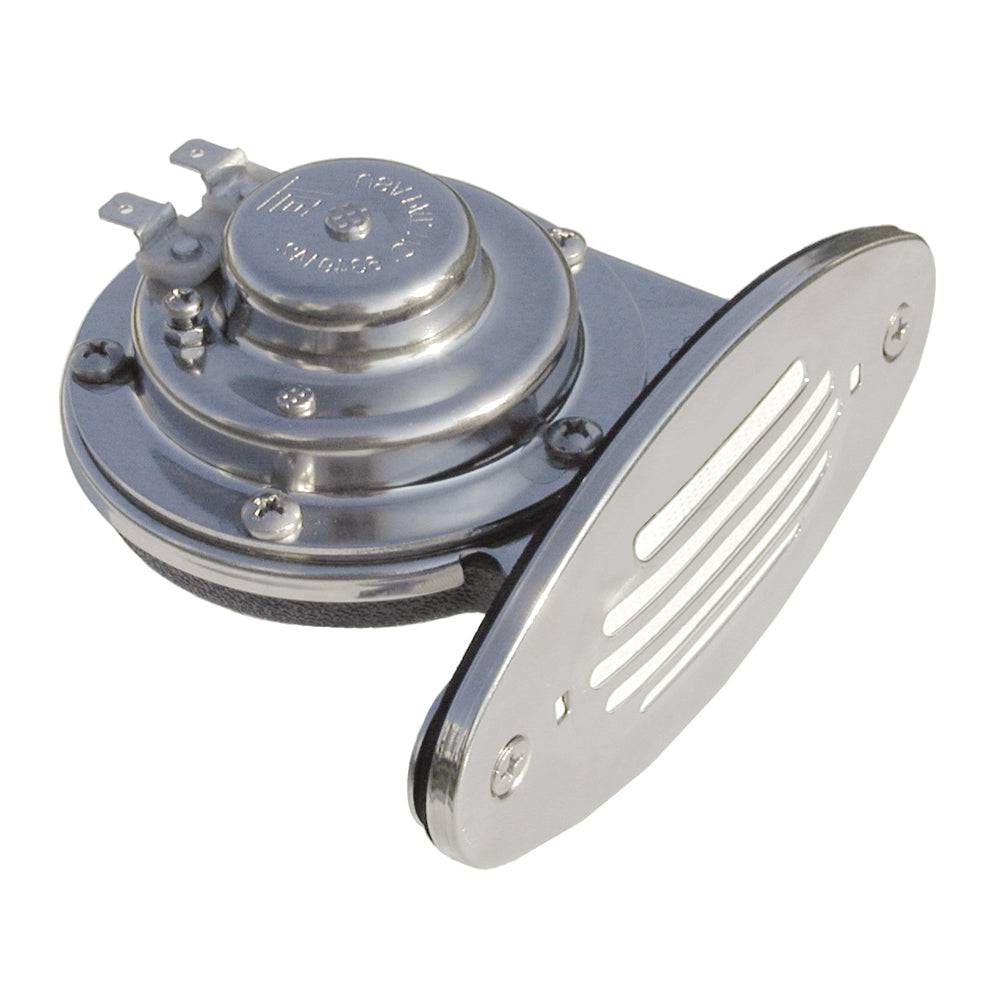

Stainless Steel Mini Drop-In Single
12 Volt Lo Pitch
Dimensions: 3"L, 3-1/4"W, 1-3/4"H (7.5 x 8 x 4.5 cm)
Max Amp Draw: 3 Amps.
Grill Dimensions: 4-7/8" x 2-3/8" with 4" hole centers
Rating: 106 db @ 1 Meter Installed

Stainless Steel Horns

• All Stainless Steel Inside & Out


• 304 Stainless Steel inside & out including sealed sound unit


• No rust


• Guaranteed for 5 years


• All meet ABYC A-23 for boats up to 12 meters


• Pre-wired


• Fits existing hole patterns

It complies with ABYC specifications and is suitable for ships under 39'. It has a waterproof grill. All stainless steel inside and outside. 5-year warranty. Grill size 4-7/8 x 2-3/8, with 4 holes...
SKU: NVN-41521
MPN: 10050
UPC: 768170100509
