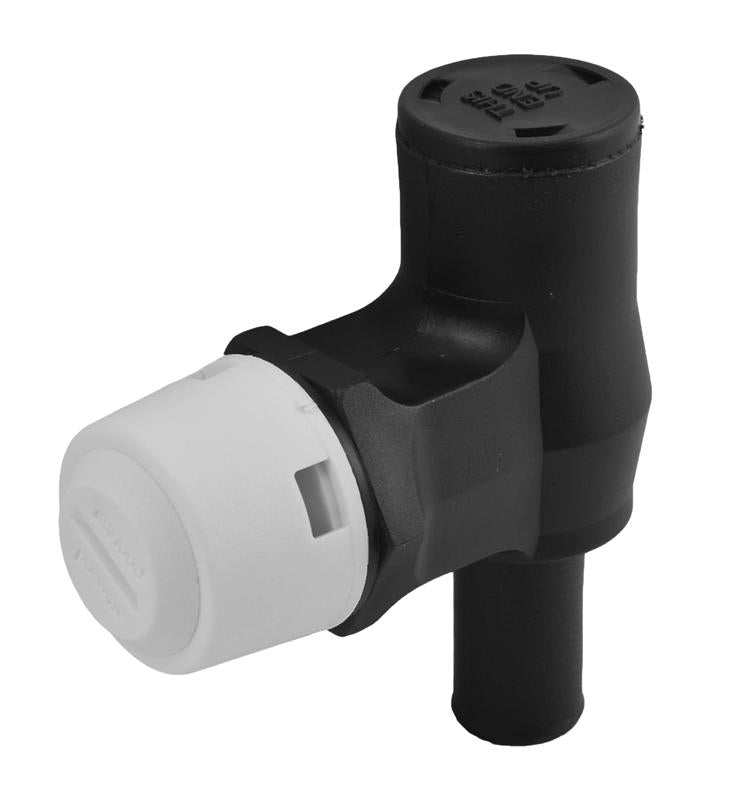

Attwood Marine 16711 Boat Fuel Tank Vent

The 1670/1671/1674 P-traps have been tested and certified by a third party lab to meet the ABYC weathertight and watertight requirements and ensure no liquid water will reach a fuel vent line, carbon canister or fuel tank. The 1670/1671/1674 P-traps allow air to vent freely during normal sea conditions and washdowns and meet the ISO 10088 requirement for minimum venting area. For 5/8 Inch I.D. hose. Meets ABYC Standard. Cover can be removed for vent inspection, debris removal and fuel system pressure testing. Certified by third party laboratory to meet ABYC H-24 watertight and weathertight specification.

Attwood Marine 16711 Attributes

• Compatibility: 5/8 Inch Inside Diameter Hose
• Style: P-Trap Vent
• Hull Thickness: 9/16 Inch
• Color: White
• Material: Plastic
• Mounting Type: Surface Mount

Attwood Marine 16711 Features & Benefits

• For 5/8 Inch Inside Diameter Hose
• P-Traps allow Air To Vent Freely During Normal Sea Conditions And Washdowns And Meet The ISO 10088 Requirement For Minimum Venting Area
• Cover Can Be Removed For Vent Inspection, Debris Removal And Fuel System Pressure Testing
• Certified By Third Party Laboratory To Meet ABYC H-24 Watertight And Weathertight Specification
• Limited 2 Year Warranty

Attwood Marine 16711 Installation Instructions

• 069252-g water resist fuel tank vent.pdf

Attwood Marine 16711 Warranties

• Attwood Warranty 2009.pdf

Attwood Marine 16711 Technical Bulletins

• ptrap_BUL.pdf

SKU: NVN-2005356
MPN: 1671-1
UPC: 022697167118
