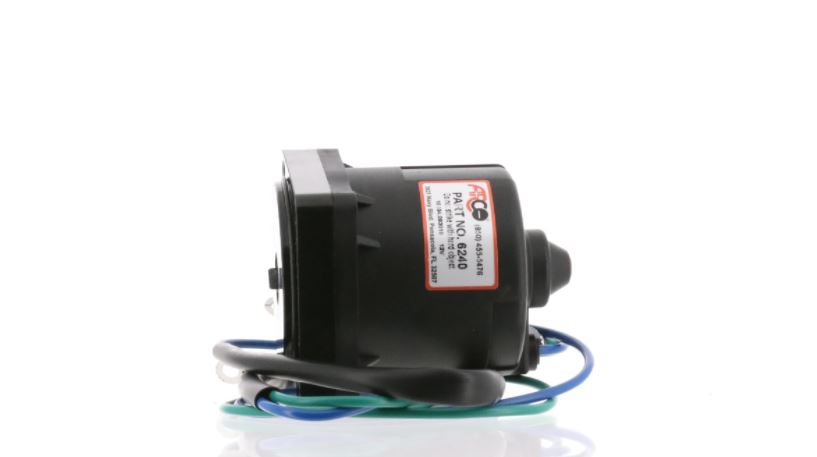

ARCO Marine Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt

Proven dependability makes ARCO the trusted source for OEM quality or better alternators, inboard starters, outboard starters, and tilt/trim motors. Nearly 60 years ago, ARCO set the gold standard for marine engine parts. We test and retest every unit manufactured beyond normal operating conditions. That’s how we know we deliver the highest quality, most reliable parts available. ARCO began with a superior commitment to dependable starting and charging products. We then developed the best technical support available in the industry. ARCO ensures the highest quality by following five key principles.

Arco Marine 6240 Attributes

• Compatibility: Yamaha 1997-UP 115 HP 4-Stroke, 1997-2000 130 HP, 1997-UP 150-200 HP, 1998-UP 225 HP Outboards
• Mounting Type: 4-Bolt
• Connection Type: 2 Wire
• Connector Gender: Ring Terminal
• Voltage: 12 Volt
• With O-Ring: Yes

Arco Marine 6240 Features & Benefits

• Epoxy Powder Coated For Maximum Corrosion Protection
• Motor Shafts Induction Case Hardened At Bearing Surfaces For Superior Wear Resistance
• All Armatures Tested To Withstand 50 Times Operation Voltage (12 Voltage)
• All Motors Performance Tested At 5 Different Load Levels
• All Motors Must Meet Or Exceed OEM Performance Before Being Boxed
• Limited 1 Year Warranty

Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt

Replacement outboard tilt trim motor that will fit Yamaha 1997-UP 115 HP. 2000-UP 115 HP 4-Stroke. 1997-2000 130 HP, 1997-UP 150-200 HP, 1998-UP 225 HP. 2-wire connection, bolt mount, ring Terminal Ends, includes O-ring.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• Epoxy Powder coated for maximum insulation protection

Replaces:

YAMAHA Tilt Trim Motor 64E-43880-00
YAMAHA Tilt Trim Motor 64E-43880-01
YAMAHA Tilt Trim Motor 64E-43880-03
YAMAHA Tilt Trim Motor 64E-43880-04
YAMAHA Tilt Trim Motor 67H-43880-00
YAMAHA Tilt Trim Motor 67H-43880-01
YAMAHA Tilt Trim Motor 67H-43880-02
YAMAHA Tilt Trim Motor 67H-43880-03
YAMAHA Tilt Trim Motor 67H-43880-04
YAMAHA Tilt Trim Motor 67H-43880-10
YAMAHA Tilt Trim Motor 68V-43880-00
YAMAHA Tilt Trim Motor 68V-43880-01
YAMAHA Tilt Trim Motor 68V-43880-02
YAMAHA Tilt Trim Motor 68V-43880-03
YAMAHA Tilt Trim Motor 68V-43880-04
BRP - OMC Tilt Trim Motor 5036732
SIERRA Tilt Trim Motor 18-6783

*ARCO Assurance 12-month part and labor warranty protection

SKU: NVN-97211
MPN: 6240
UPC:
