RAM Mount Marine Electronics Mount - Gimbal Bracket Under 5lbs.

RAM 1" Diameter Ball Mount with 6.25" X 2" Rectangle Base & 2.5" Round Base

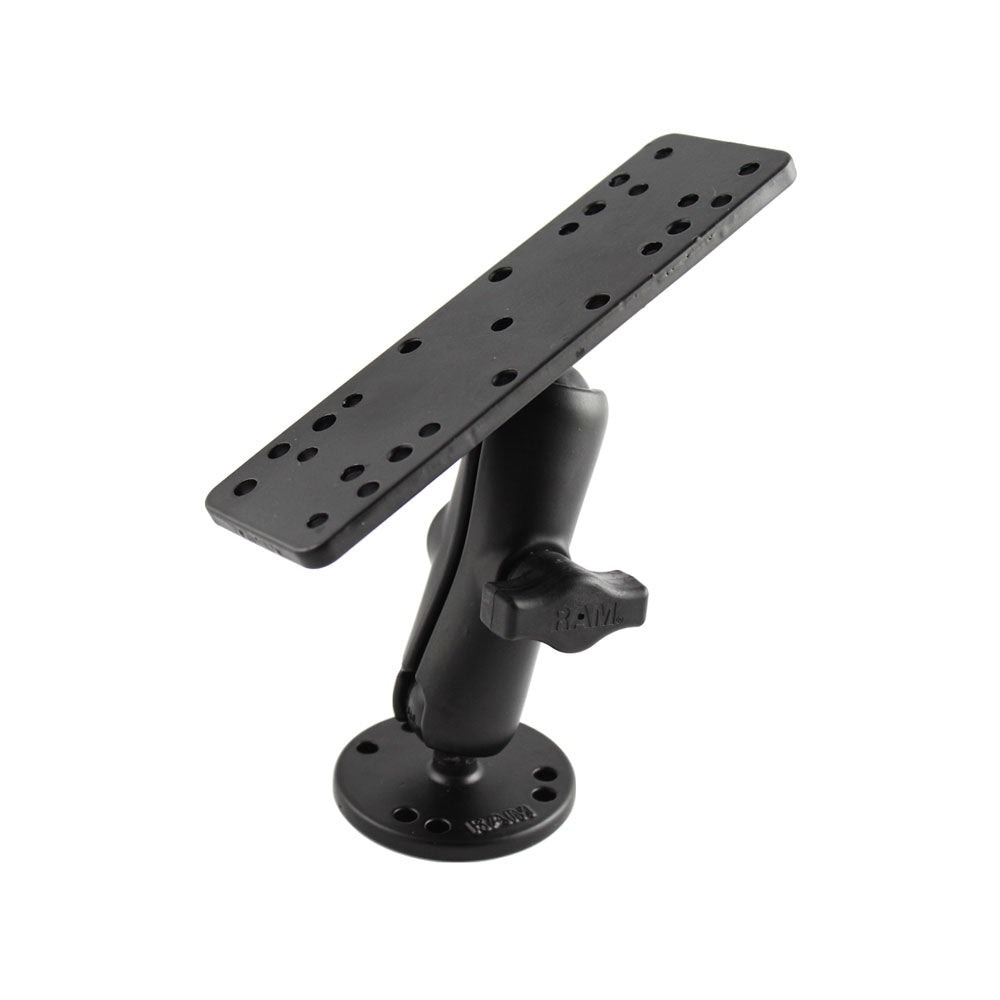

The RAM-B-111U, powder coated marine grade aluminum mount, consists of a double socket arm mount, one 2.5" diameter round base with 1" rubber ball and flat 6.25" x 2" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles. For most applications, mount will support up to three pounds.

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Note:
The "U" in the part number reflects product packaged in poly bag. For mounting a GPS puck antenna to this mount, RAM recommends the RAM-338U

The total length of the arm, each ball diameter is 1.00 inches-the plunger is installed with a socket at both ends of the double socket arm, which can accommodate a spherical base or various other accessories. ...
SKU: NVN-36564
MPN: RAM-B-111U
UPC: 793442001987
