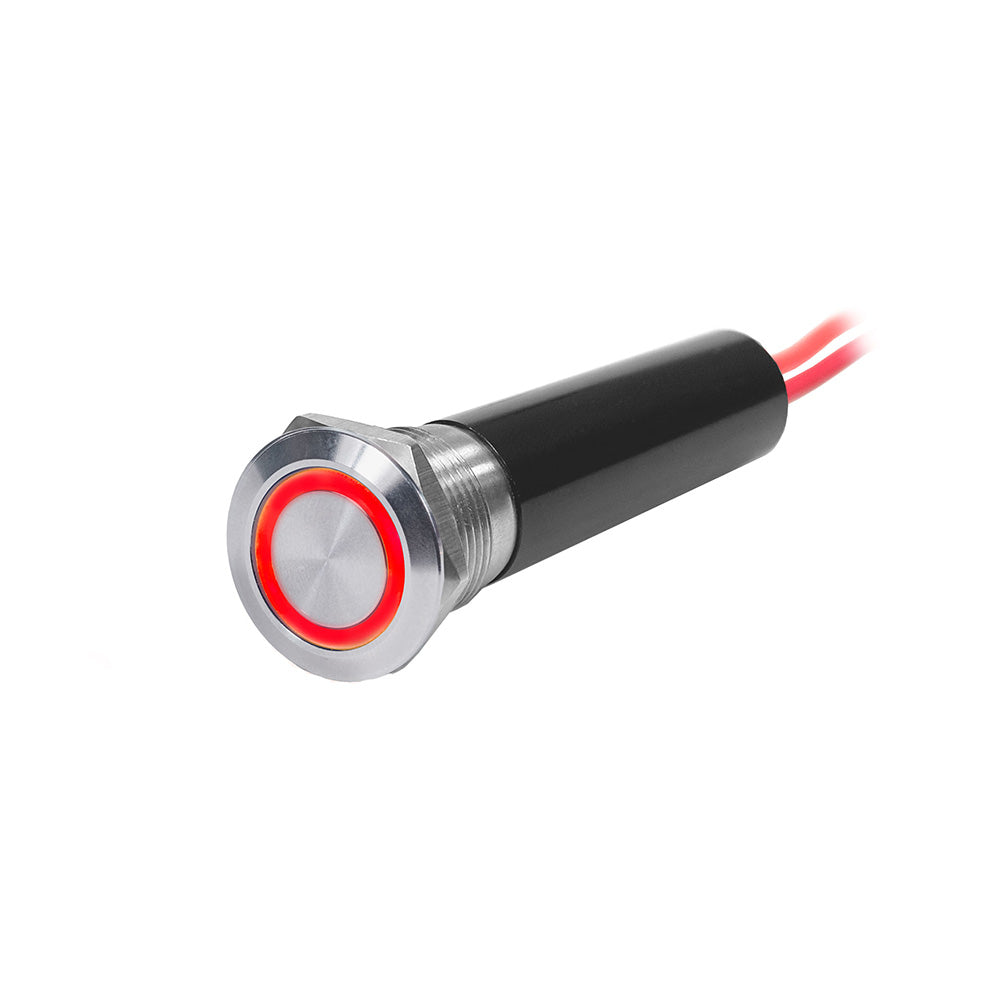

Blue Sea 4192 SS Push Button Switch - Off-On - Red - 20A

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 4192BSS Attributes

• Use: On/ Off Switch
• Material: Stainless Steel
• Amperage: 20 Amp
• Terminal Type: Quick Connect
• Mount Type: Panel Mount
• Lighted: Yes

Blue Sea 4192BSS Features & Benefits

• 20 Ampere Continuous
• Single Pole Single Throw
• Available In Blue And Red
• Available In Momentary And Non-Momentary
• 14 AWG Pigtail – Positive And Load Connections
• No Supplier Warranty

4192 SS Push Button Switch - Off-On - Red - 20A

• 20A Continuous
• Single Pole Single Throw
• 16 AWG pigtail – positive & load connections
• .110inch quick connect – LED ground (included in retail package)

Specifications

Action: OFF-ON
Amperage: 20A @ 12V DC
Nominal Voltage: 12V DC
Maximum LED Operating Current: 20mA
Illumination: Dependent – Illuminates when output is on
Mounting Hole: 19mm
Termination: 2 – 6 inch flying leads 14 AWG, 1 – 0.110 inch Quick Connect terminal

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Push button switch, MFG#4191, stainless steel, disconnected, with red LED. 20 Amp rating, including .11 ground disconnect terminal, #14 lead.
SKU: NVN-70129
MPN: 4192
UPC: 632085041922
