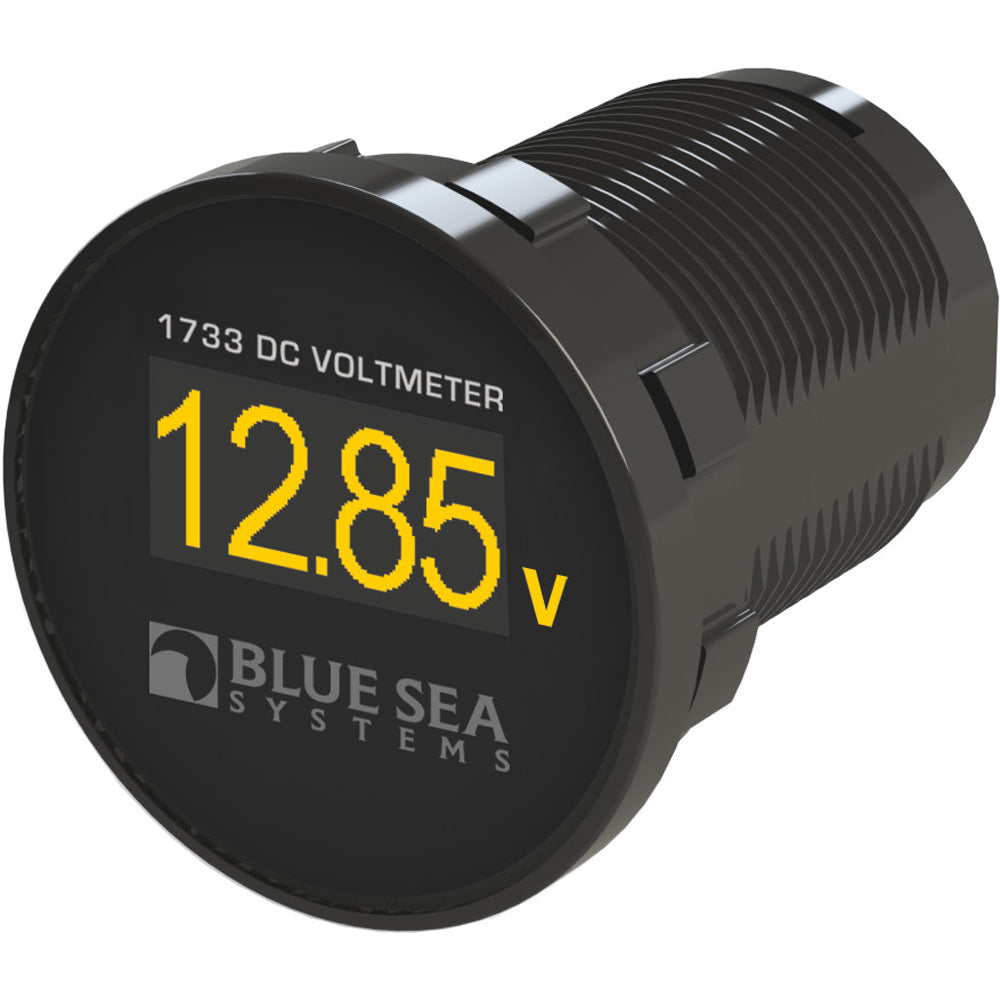

Blue Sea 1733 Mini OLED DC Voltmeter

Monitors essential electrical system parameters, temperature, and tank levels, on a bright, waterproof, daylight readable OLED screen.

Blue Sea 1733BSS Attributes

• Type: Electric
• Voltage Range: 8 To 36 Volt
• Display: Digital
• Face Color: Black
• Needle Color: Not Applicable
• Bezel Color: Black
• Number Color: Yellow

Blue Sea 1733BSS Features & Benefits

• Reverse Polarity Protected
• Mounts In A Common 1-1/8 Inch Hole
• Compact Size Enables Mounting In Any Convenient Location
• Now Available With Yellow Or Blue OLED Screens
• Limited 5 Year Warranty

Blue Sea 1733BSS Installation Instructions

• 980021880-008-1733-web.pdf

Blue Sea 1733BSS Technical Bulletins

• 1733_dimensions.pdf

Mini OLED DC Voltmeter

Monitors DC voltage on a bright, waterproof, daylight readable OLED screen

• Compact size enables mounting in any convenient location

• IP66 waterproof

• Reverse polarity protected

• Mounts in a common 1-1/8 in hole

Specifications

• Meter: Voltage

• Nominal Voltage:12V/24V DC

• Resolution: 0.01DC

• Input Voltage Range: 8-36V DC

• Operating Current: 15mA

• Voltage Accuracy:±1.0%

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Monitor the battery and charging voltage in a small voltmeter. The voltmeter is easy to read in any situation. The voltmeter provides important information needed to maintain the battery and maintain battery power.
SKU: NVN-58582
MPN: 1733-BSS
UPC: 632085017330
