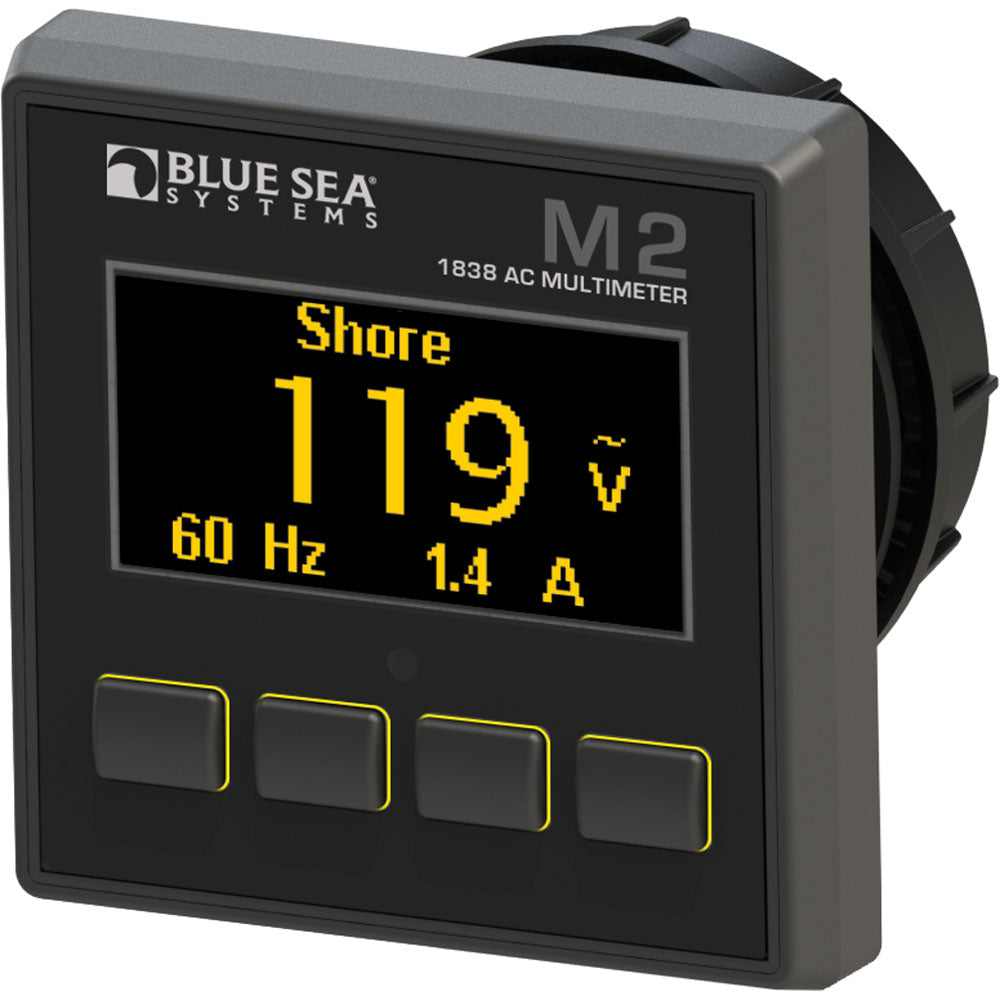

Blue Sea 1838 M2 AC Multimeter

Monitors AC Amps, Volts, Hertz on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage and Hertz.

Blue Sea 1838BSS Attributes

• Voltage Rating: 50 To 250 AC/ 7 To 70 Volt DC
• Style: Digital Display

Blue Sea 1838BSS Features & Benefits

• Auto-Dimming, Bright OLED Display Is Easy To Read
• Easy To Adjust
• 80dB Alarm On All Models
• Isolated MOSFET Relay
• No Supplier Warranty

Blue Sea 1838BSS Installation Instructions

• 980022190.pdf
• 980019960_003_1838QS_7_19_22.pdf

Blue Sea 1838BSS Technical Bulletins

• M2.pdf
• M2-Mounting.pdf

M2 AC Multimeter

Monitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage and Hz. (measures 2 voltages and 2 circuits)

Features:

• Auto-dimming, bright OLED display is easy to read

• Easy to adjust

• 92dB alarm on all models

• Isolated MOSFET relay

Specifications:

• Meter: Current, Frequency, Power, Voltage

• Function: 50 to 250V to 300A

• Alarms: High/Low Current, High/Low Frequency, High/Low Voltage

• Display Size: 55mm x 28mm

• Input Voltage: 7-70V DC

• Maximum Power Consumption: 1.00Watt

• Minimum Power Consumption: 0.3 Watt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Digital meter, M2 OLED, AC multimeter, MFG#1838, can accurately measure and monitor the AC voltage (50-250) of the two circuits and the current (300 Amp) of the two circuits. 3.24 x 3.24. include...
SKU: NVN-54771
MPN: 1838
UPC: 632085018382
