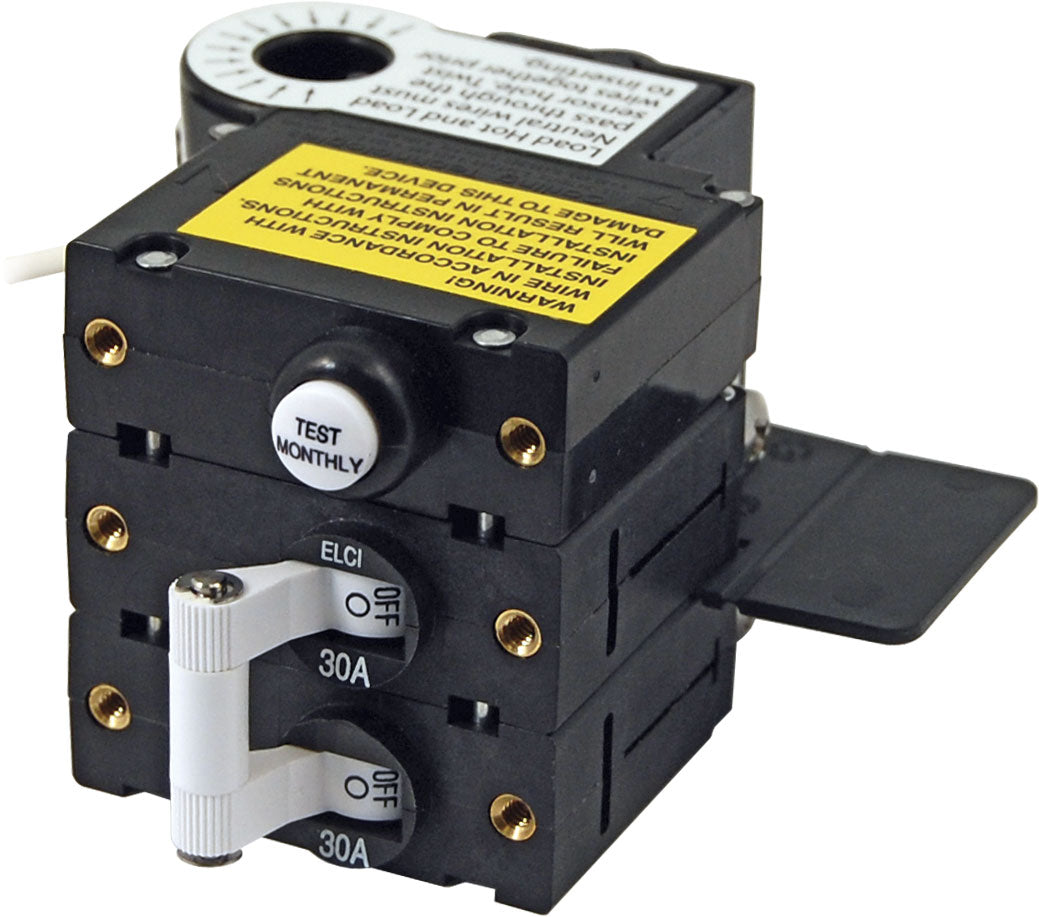

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

All of the company's products are designed to easily integrate into simple or comprehensive electrical systems. The world's leading RV manufacturers are recognizing the requirement for quality electrical systems and are specifying our products as original equipment.

Blue Sea 3106100BSS Attributes

• Ampere Rating: 30 Amp
• Voltage Rating: 120/ 240 Volt
• Reset Type: Manual
• Terminal Connection: Screw
• Type: Magnetic Hydraulic
• Number of Poles: 2
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 3106100BSS Features & Benefits

• Trips On Short Circuit, Overload Or Leakage To Ground
• Quality Products Engineered For The Harsh Marine Environment And Built To Last
• CSA Approved
• Easy To Install
• No Supplier Warranty

Blue Sea 3106100BSS Installation Instructions

• IST-0006_C.pdf

Blue Sea 3106100BSS Technical Bulletins

• IST-0006_C.pdf

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

Features:

• Trips on short circuit, overload, or leakage to ground
• Front panel mount—installed in a power distribution panel

Specifications:

• Amperage: 30A
• Color: White
• Actuator Style: Toggle
• Poles: 2
• Ignition Protected: Yes
• Max Voltage: 240VAC/120VAC per pole
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35 degrees C
• Max Operating Temperature: 65 degrees C
• Leakage Trip Amps: 30mA

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Provide over-current and leakage protection. Panel installation. Short circuit, overload or ground leakage will trip.
SKU: NVN-69223
MPN: 3106100
UPC: 632085310615
