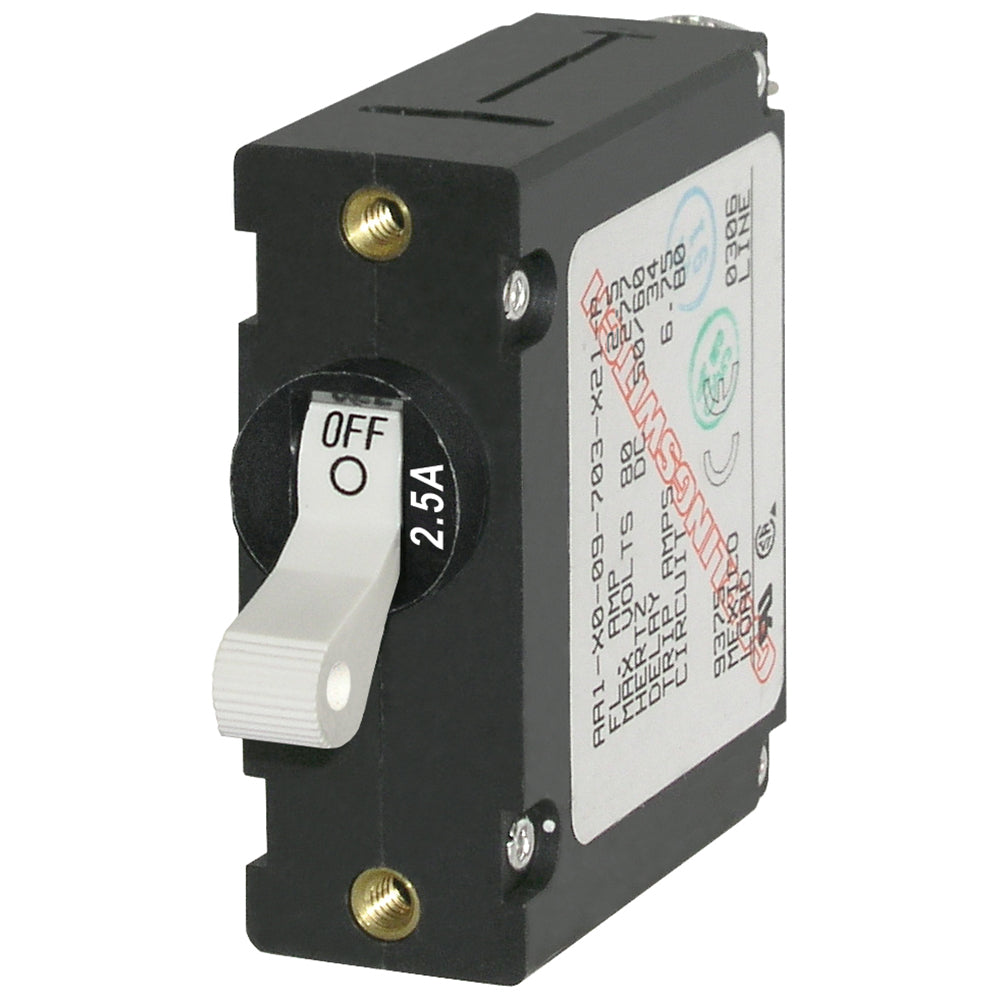

Blue Sea 7917 A-Series White Toggle Circuit Breaker - Single Pole 2.5A

Magnetic hydraulic circuit breakers that combine switching and circuit protection into a single device. The industry standard circuit breaker for Blue Sea Systems electrical panels

Blue Sea 7197BSS Attributes

• Ampere Rating: 2.5 Amp
• Voltage Rating: 32/ 240 Volt
• Reset Type: Automatic
• Terminal Connection: Screw
• Type: Single Pole Magnetic Hydraulic
• Number of Poles: 1
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7197BSS Features & Benefits

• Combines Switching And Circuit Protection Into A Single Device
• Trip Free Design Cannot Be Held “ON” During Fault Current Condition
• Meets American Boat And Yacht Council (ABYC) Standards
• Single Pole Magnetic Hydraulic Type
• No Supplier Warranty

A-Series White Toggle Circuit Breaker - Single Pole 2.5A

• Meets American Boat and Yacht Council (ABYC) standards

• The industry standard circuit breaker for Blue Sea Systems" electrical panels

• Combines swtiching and circuit protection into a single device

• "Trip Free" design cannot be held "ON" during fault current condition

Specifications:

• Amperage: 2.5A AC / 2.5A DC

• Color: White

• Actuator Style: Toggle

• Poles: 1

• Maximum Voltage: 250V AC / 65V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10-32 Stainless Steel

• Weight: 0.17lb (0.08 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product is very suitable for use in all marine applications. It will meet the needs of yacht lovers and ambitious yacht owners. Get this excellent product for...
SKU: NVN-64359
MPN: 7197
UPC: 632085071974
