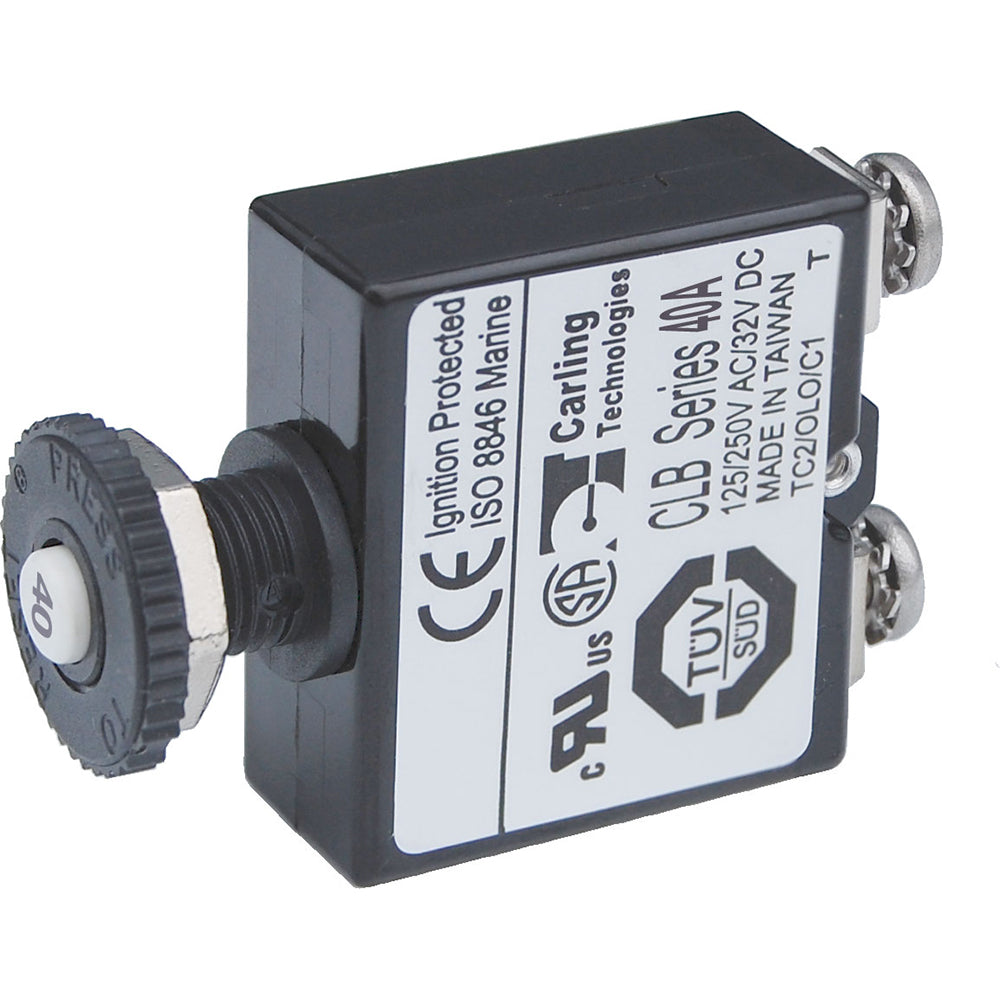

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 40 Amps

Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels.

Blue Sea 2137BSS Attributes

• Ampere Rating: 40 Amp
• Voltage Rating: 32 Volt
• Reset Type: Manual
• Terminal Connection: Screw
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 2137BSS Features & Benefits

• Compact Design Enables High Density Circuit Protection Configurations
• Push-To-Reset Operation
• “Trip Free” Design Cannot Be Held “ON” During Fault Current Condition
• Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
• Optional Push Button Waterproof Boot Protects Circuit Breaker In Wet Environments, Replaces Dress Nut Mounting On Circuit Breakers And Resists Discoloration And Cracking
• Can Be Used As Main, Branch, Or 24 Hour Circuit Protection
• No Supplier Warranty

• Branch circuit breakers (can also be used for 24-hour circuit protection)

• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 40A

• Maximum Voltage: 32V DC

• Mounting: Panel Mount 3/8-27 UNS

• Circuit Breaker Type: Thermal trip, manual push-button reset only

• Terminal Type: #8 Screw

• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

• Minimum Operating Temperature: -10° C

• Maximum Operating Temperature: 60° C

• Screw Terminal Torque: 6 in-lb (0.68 Nm)

• Weight: 0.09lb (0.04 kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



  The compact design of the branch circuit breaker (can also be used for 24-hour circuit protection) can realize high-density circuit protection configuration, that is, push-to-reset operation.
  SKU: NVN-63012
  MPN: 2137-BSS
  UPC: 632085021375
