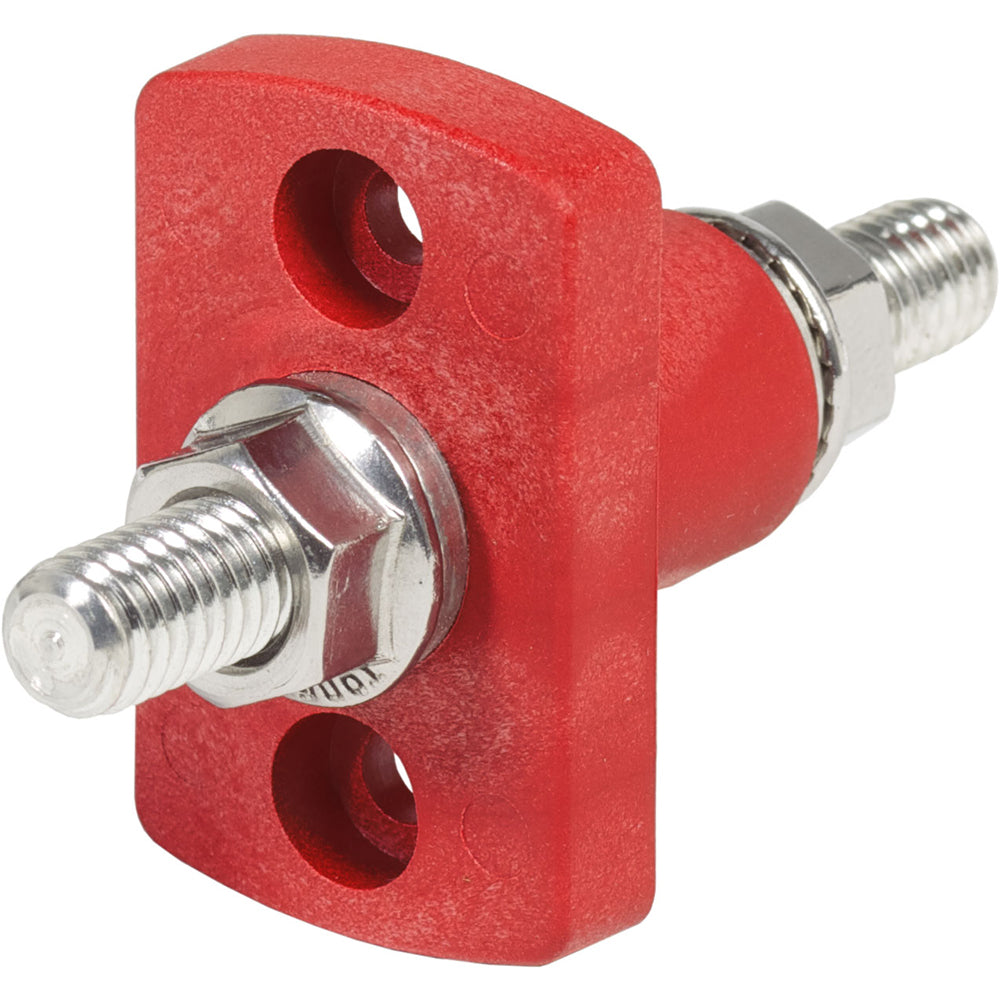

Blue Sea 2204 Red Terminal Feed Through Connector
Blue Sea 2204 Red Terminal Feed Through Connector — Product description
Eliminates change and provides strain relief when passing high current through hulls, decks and bulkheads. Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable.
Blue Sea 2204BSS Attributes
- Type: Terminal Feed Through Connector
- Number Of Terminals: 1
- Voltage Rating: 48 Volt
- Ampere: 250 Amp
- Length (IN): 2 Inch
- Width (IN): 1-1/4 Inch
- Material: Thermoplastic Base/ Tin-Plated Copper Alloy Stud
- With Insulated Cover: No
Blue Sea 2204BSS Features & Benefits
- Reinforced Thermoplastic Base With Tin-Plated Copper Alloy Stud
- Perfect For Passing High Current Cables Through Hulls, Decks And Bulkheads
- Rated IP66 Withstands Water From Heavy Seas
- Large Size Terminals Have A Mounting Face That Can Be Gasketed Or Bedded To Provide A Water Tight Installation
- No Supplier Warranty
Blue Sea 2204BSS Technical Bulletins
Terminal Feed Through Connectors
Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads.
Features:
- Perfect for passing high current cables through hulls, decks and bulkheads
- Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
- Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
- Rated IP66 — withstands water from heavy seas
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Blue Sea Systems 3/8" -16 250A rating, red. Eliminates acne damage from wires passing through bulkheads. Cables passing through bulkheads, decks or any hard surface...
SKU: NVN-20213
MPN: 2204-BSS
UPC: 632085022044
