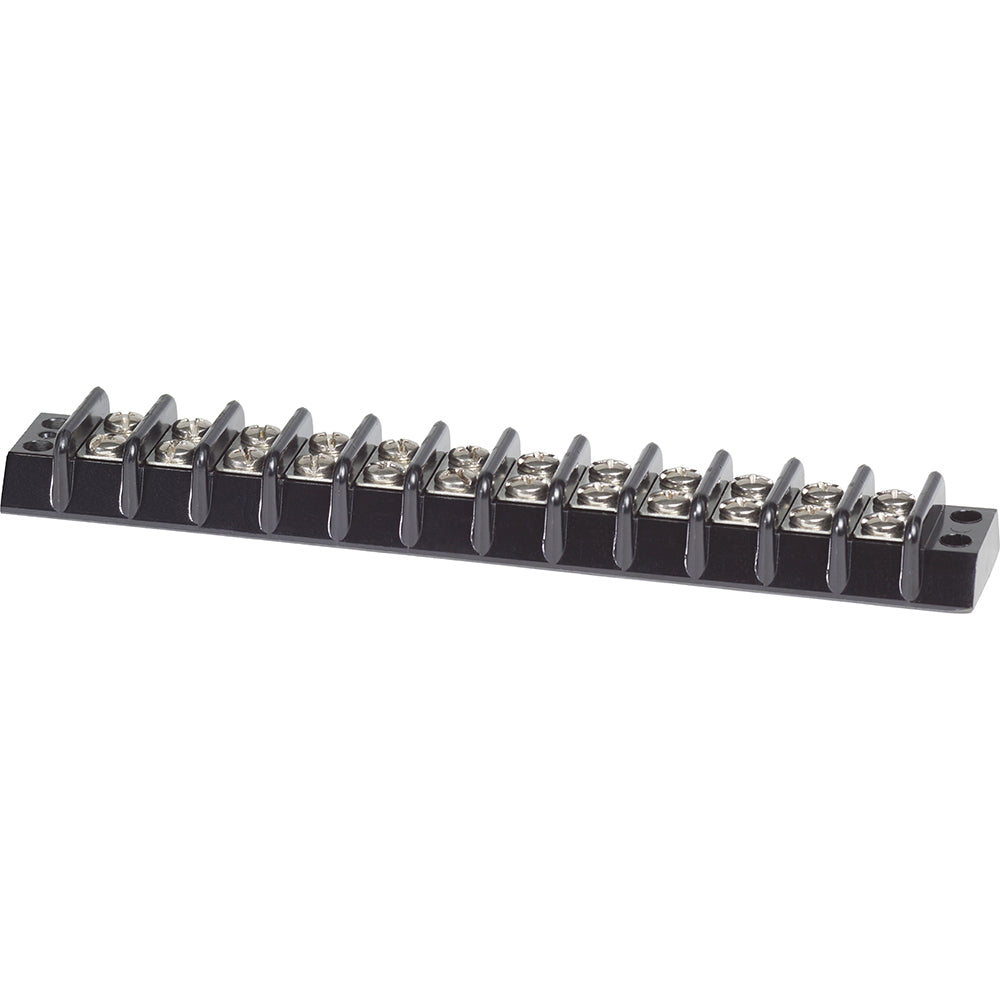

Blue Sea 2512 Terminal Block 30AMP - 12 Circuit

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 2512BSS Attributes

• Number Of Pole: 24 Pole Double Row
• Connection Material: Brass
• Voltage Rating: 600 Volt AC/DC
• Ampere Rating: 30 Amp
• Termination Type: Screw-On
• Color: Black
• Material: Phenolic

Blue Sea 2512BSS Features & Benefits

• Closed Back Design Completely Insulates Power From The Mounting Surface
• Each Screw Pair Is One Isolated Circuit
• Jumpers Allow Creation Of Common Circuits
• Fully Insulated Independent Terminal Blocks To Isolate Circuits
• No Supplier Warranty

Blue Sea 2512BSS Technical Bulletins

• 2502-2512.pdf
• 2502-2512.pdf

2512 Terminal Block 30AMP - 12 Circuit

Features:

• Closed back design completely insulates power from the mounting surface
• Each screw pair is 1 isolated circuit
• Jumpers allow creation of common circuits

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems 12 circuit terminal block, 30A AC / DC 600V. Fully insulated independent terminal blocks can be used to isolate circuits. These Blue Sea Systems rib insulators...
SKU: NVN-13958
MPN: 2512-BSS
UPC: 632085025120
