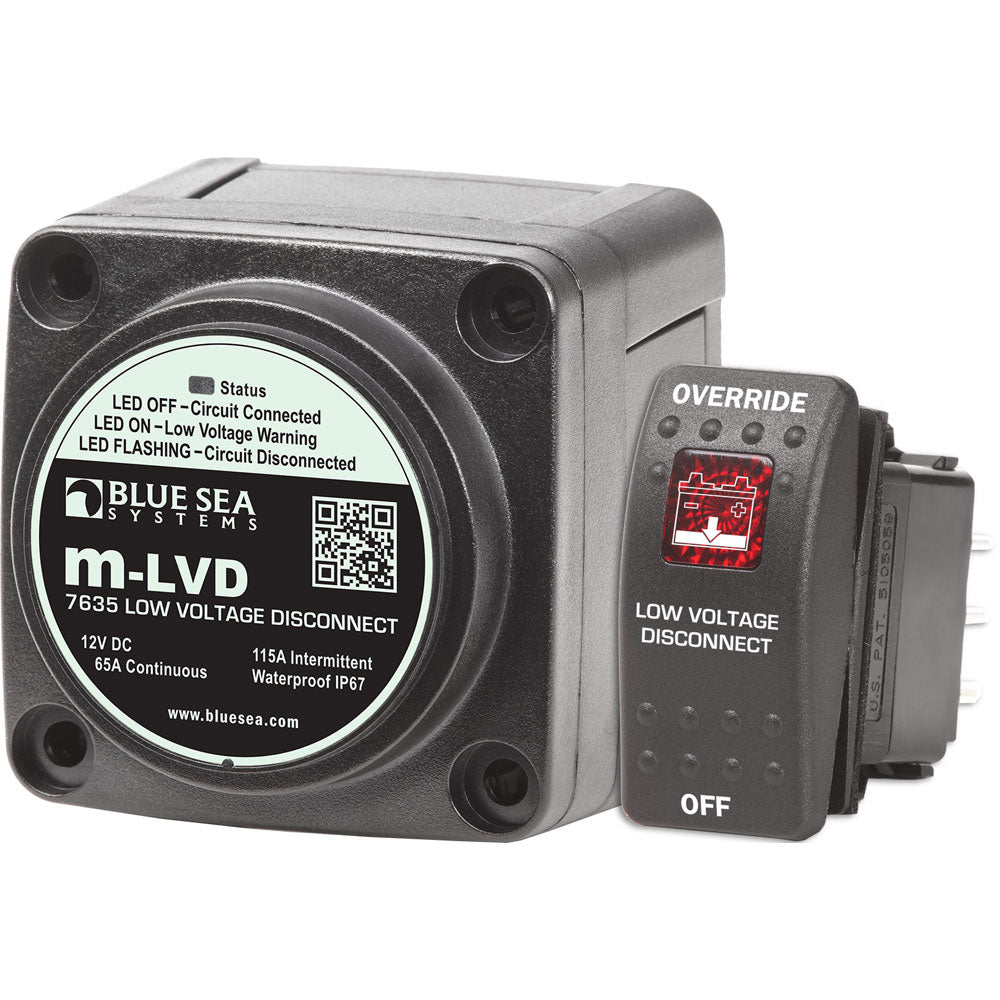

Blue Sea 7635 m-LVD Low Voltage Disconnect

m-LVD Low Voltage Disconnect

Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life
A dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.

• Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect

• Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)

• Remote Control Switch Functions:

  • Disconnect Voltage Adjustment - Sets desired disconnect voltage

  • Override - Temporarily delays circuit disconnect for 10 minutes

  • OFF - Temporarily disconnects circuits until voltage rises

  • Override or OFF - Silences alarm (optional alarm required)


• Case design allows surface, front panel, or rear panel mounting
• Rear insulating cover protects rear contacts

• Waterproof - rated IP67 for temporary immersion

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Sense low battery voltage and automatically disconnect the device to save startup power or extend battery life. With switches for various settings. Optional alarm.
SKU: NVN-56672
MPN: 7635-BSS
UPC: 632085076351
