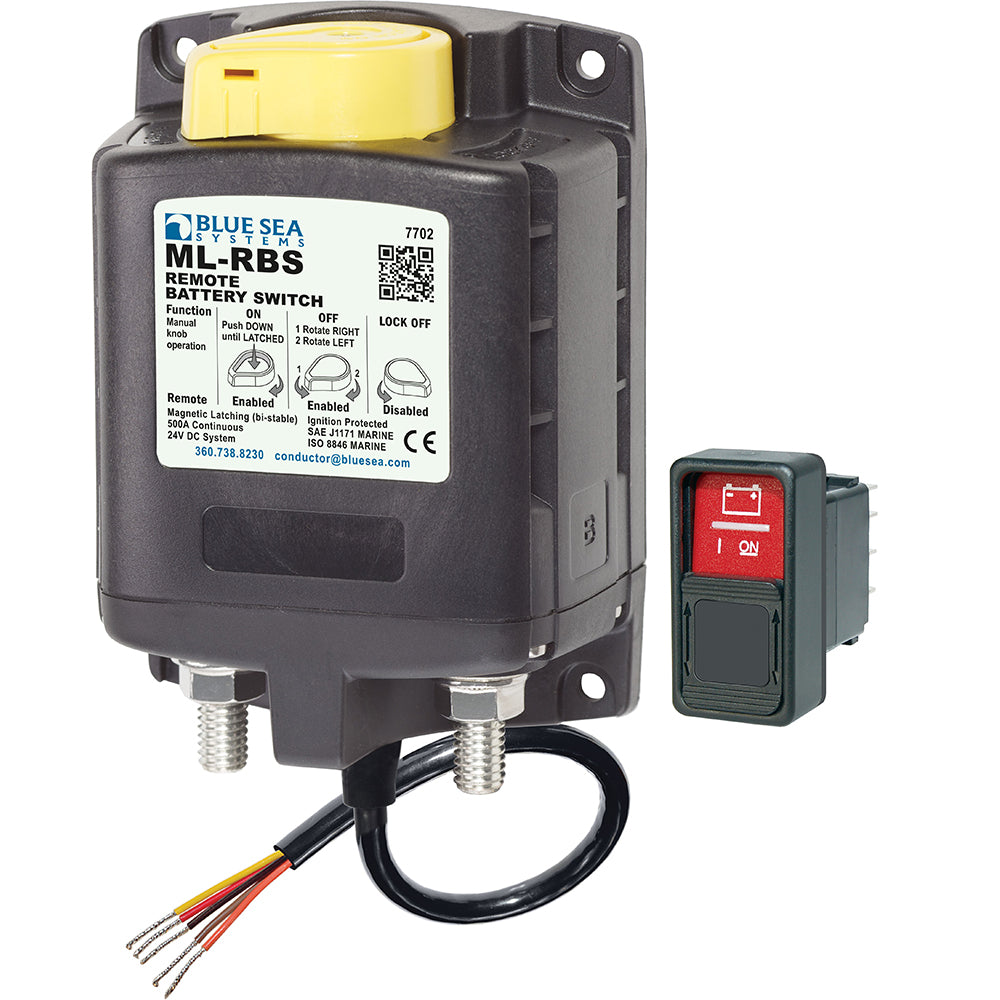

Blue Sea 7702 ML-Series Remote Battery Switch w/Manual Control 24V DC

500 Ampere magnetic latching switch provides high amperage switching under load, manually or from remote locations.

Blue Sea 7702BSS Attributes

• Type: Push/ Pull
• Activation Type: Manual
• Continuous Ampere Rating (A): 500 Amp
• Surge Ampere Rating (A): 700 Amp
• Installation Type: Bolt-On

Blue Sea 7702BSS Features & Benefits

• Manual Override Knob Provides An Added Level Of Safety Allowing Control With Or Without Power And Offering LOCKED OFF Capability For Servicing
• LED Output To Remotely Indicate Switch State
• 3/8 Inch -16 Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• 7/8 Inch Stud Length Accepts Multiple Cable Terminals
• Label Recesses For Circuit Identification
• Silver Alloy Contacts Provides High Reliability For Switching Live Loads
• No Supplier Warranty

Blue Sea 7702BSS Installation Instructions

• 990180170-006.pdf

7702

Manual Control: Yes
Coil Voltage: 24V DC

• 500 Ampere continuous rating for use as a remote battery switch for inboard gasoline or diesel engines, reducing long cable runs

• Magnetic latch only draws current when changing state of switch, drawing no current in "ON" or "OFF" state

• Silver alloy contacts provides high reliability for switching live loads
• Optional manual switch provides an added level of safety allowing control with or without power, and offering lockout capability for servicing
• 3/8" copper studs, using Blue Sea Systems superior one piece technology, suitable for 300 Amperes continuous rating and large cable connections

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Allows high-amp switching from a remote location or manually under load, thereby eliminating long cable runs. Includes remote control switch #2145 with a locking slide cover to prevent...
SKU: NVN-32566
MPN: 7702-BSS
UPC: 632085077020
