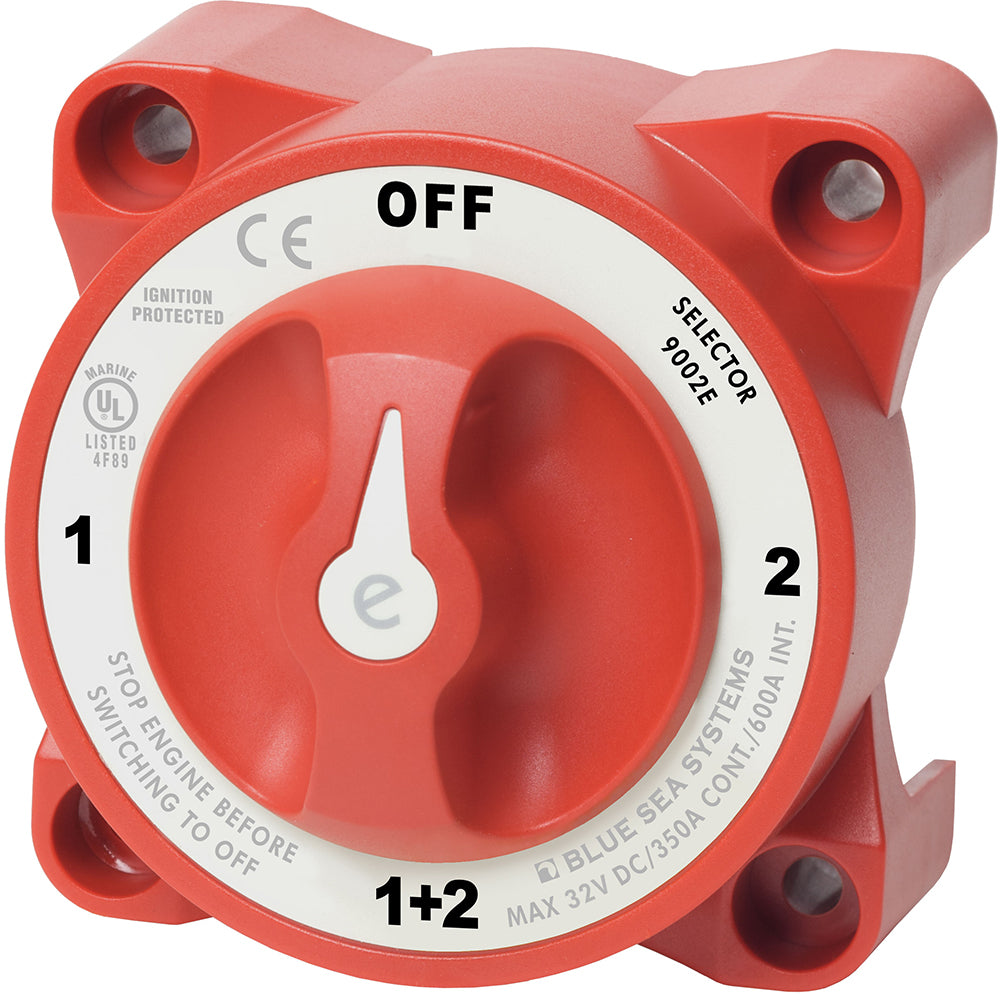

Blue Sea 9002e e-Series Battery Switch Selector w/Alternator Field Disconnect

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 9002EBSS Attributes

• Used To: Switch Isolated Battery Banks To All Loads/ To Combine Battery Banks To All Loads
• Number Of Position: 4
• Battery Input: 2 Batteries
• Voltage Rating: 32 Volt
• Ampere Rating: 600 Amp Intermittent Rating And 350 Amp Continuous Rating
• Color: Red
• With Alternator Field Disconnect: No
• With Ignition Protection: No

Blue Sea 9002EBSS Features & Benefits

• Waterproof – Rated IP66 From Water Projected In Powerful Jets
• Case Design Allows Surface, Rear, Or Front Panel Mounting Options
• No Supplier Warranty

Blue Sea 9002EBSS Installation Instructions

• 9002e_web_version.pdf

9002e e-Series Battery Switch Selector with Alternator Field Disconnect

Features:

• Switches isolated battery banks to all loads or combines battery banks to all loads
• Includes AFD (Alternator Field Disconnect)
• Make-before-break contact design allows switching between battery banks without power interruption
• Ignition protected—safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting

Includes:

•  AFD (Alternator Field Disconnect)
• CE Marked
• Ignition protected - Safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
• 7/8" (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems' E-series four-position selector switch with AFD (9002E) can switch isolated battery packs to all loads or combine battery packs to all loads. What else can...
SKU: NVN-19057
MPN: 9002E-BSS
UPC: 632085900250
