Garmin GT22HW-TM Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/CHIRP DownVü - 455/800kHz, 500W, 8-Pin
Garmin GT22HW-TM Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/CHIRP DownVü - 455/800kHz, 500W, 8-Pin — Product description
Upgrade your freshwater fishing setup with the Garmin GT22HW-TM transducer, a versatile powerhouse designed for transom or trolling motor mounting. This 8-pin transducer delivers exceptional CHIRP traditional sonar alongside CHIRP DownVü scanning sonar, helping you spot fish arches with razor-sharp clarity and reveal underwater structures like never before. Whether you're chasing bass in shallow bays or scanning deeper waters, its high-wide beam and precise imaging give you the edge to find and catch more fish.
Why Anglers Trust the GT22HW-TM for Superior Sonar Performance
Freshwater enthusiasts rave about this transducer's ability to cut through murky water and deliver consistent, high-definition returns. The high-wide CHIRP traditional sonar (150-240 kHz) paints a broad picture of the water column up to 800 feet, while the CHIRP DownVü elements (455/800 kHz) provide photo-like downward views down to 500 feet. Imagine distinguishing between a weed bed and a school of crappie at a glance— that's the real-world advantage this unit brings to your boat.
Its compact design shines on trolling motors, making it a favorite for kayak anglers, bass boats, and pontoons. Unlike bulkier models, it mounts cleanly without drag, ensuring smooth operation even at higher speeds. Paired with Garmin's ecosystem, it unlocks advanced features like split-screen views on compatible chartplotters, turning raw data into actionable fishing intelligence.
Key Features That Set It Apart
- Beam Flexibility: Traditional sonar offers 24°/16° coverage for wide-area scanning; DownVü beams (2.0°x50° at 455 kHz and 1.0°x30° at 800 kHz) deliver pinpoint detail straight below your hull.
- Power and Depth: 250W RMS for traditional CHIRP ensures reliable performance in varied conditions; 500W for DownVü handles tougher environments with ease.
- Versatile Mounting: Supports transom angles from 0° to 70°, with included hardware for quick setup on outboards, stern drives, or trolling motors.
- Durable Build: Rugged plastic housing withstands splashes, sunlight, and constant submersion, built for seasons of heavy use.
- Long Reach: 20-foot cable provides ample length for clean routing to your display unit.
Experience fewer false readings and more hookups—users often report spotting fish holding tight to structure that traditional 2D sonar misses entirely.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Frequency | Traditional: CHIRP 150-240 kHz DownVü: CHIRP 425-485 kHz & 790-850 kHz |
| Beam Width | Traditional: 24°/16° DownVü: 2.0°x50° @455 kHz & 1.0°x30° @800 kHz |
| Maximum Depth | Traditional: 800 ft DownVü: 500 ft |
| Transmit Power | Traditional: 250W DownVü: 500W |
| Connector | 8-pin |
| Cable Length | 20 ft |
Effortless Installation Tips for Peak Performance
Mounting is straightforward with the included transom and trolling motor hardware. Position the transducer parallel to the waterline at rest for optimal beam projection—about 1/8 inch below the hull. Secure cables away from interference sources like engines or bilge pumps to minimize noise. Test in shallow water first to fine-tune angle and verify clear bottom tracking. Pro tip: On trolling motors, align it dead center for balanced imaging during turns.
What's Included for a Complete Setup
- GT22HW-TM transducer
- Transom mount bracket
- Trolling motor mount
- Mounting hardware kit
- Documentation and instructions
Frequently Asked Questions
Is the Garmin GT22HW-TM compatible with all Garmin fishfinders?
It works with most Garmin chartplotters and fishfinders featuring 8-pin sonar ports, such as echoMAP, STRIKER, and GPSMAP series. Always verify your model's specs for CHIRP and DownVü support.
Can I use this transducer on saltwater?
While optimized for freshwater, its durable housing handles light saltwater exposure. For heavy marine use, consider Garmin's saltwater-rated models.
What's the difference between CHIRP traditional and DownVü?
Traditional CHIRP scans a cone-shaped area ahead and below for fish arches and depth. DownVü shoots narrow beams straight down for high-res imaging of bottom contours, fish, and bait.
How do I mount it on a trolling motor?
Use the included trolling motor mount bracket. Clamp it securely to the lower unit, ensuring the face points straight down. Adjust for hull deadrise if needed.
Does it measure water temperature?
Yes, it includes a temperature sensor for real-time surface water readings, perfect for tracking thermoclines.
What if I need deeper scanning capability?
Up to 800 feet traditional depth suits most freshwater lakes. For oceans or extreme depths, pair with a higher-power Garmin transducer.
Is wiring extensions available?
Garmin offers extension cables up to 50 feet. Solder connections carefully or use Garmin adapters to maintain signal integrity.
Equip your rig with the GT22HW-TM and transform how you read the water—clearer targets mean more fish in the livewell.
Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.
Garmin 101240300 Attributes
- Mounting Location: Transom Mount
- Number Of Pins: 8 Pin
- Depth: 800 Feet For Traditional And 500 Feet For ClearVü
- Power Rating: 250 Watt For Traditional And 350 Watt For ClearVü
- Frequency Range: 150-240 kHz For High Wide CHIRP And 455/ 800 kHz For ClearVü Operating Frequency
- Supported Angle: 0 To 70 Degree Transom Angle
- Cable Length: 20 Feet
Garmin 101240300 Features & Benefits
- Perfect For Freshwater Fishermen Who Want CHIRP Traditional Sonar And Chirp ClearVu Scanning Sonar
- Transom Mounted Transducer Consistently Displays Clear And Crisp Fish Arches With Superior Target Separation As Well As Clear Definition Of Structure Below The Boat
- 8-Pin Transducer Features High Wide Band Chirp Traditional Sonar And Has A Power Rating Of 250 Watt
- GT22HW-TM Is Ideal For Mounting To A Trolling Motor Due To Its Compact Size
- Provides A Installation Instructions
- Limited 2 Year Warranty
Garmin 101240300 Installation Instructions
Garmin 101240300 Warranties

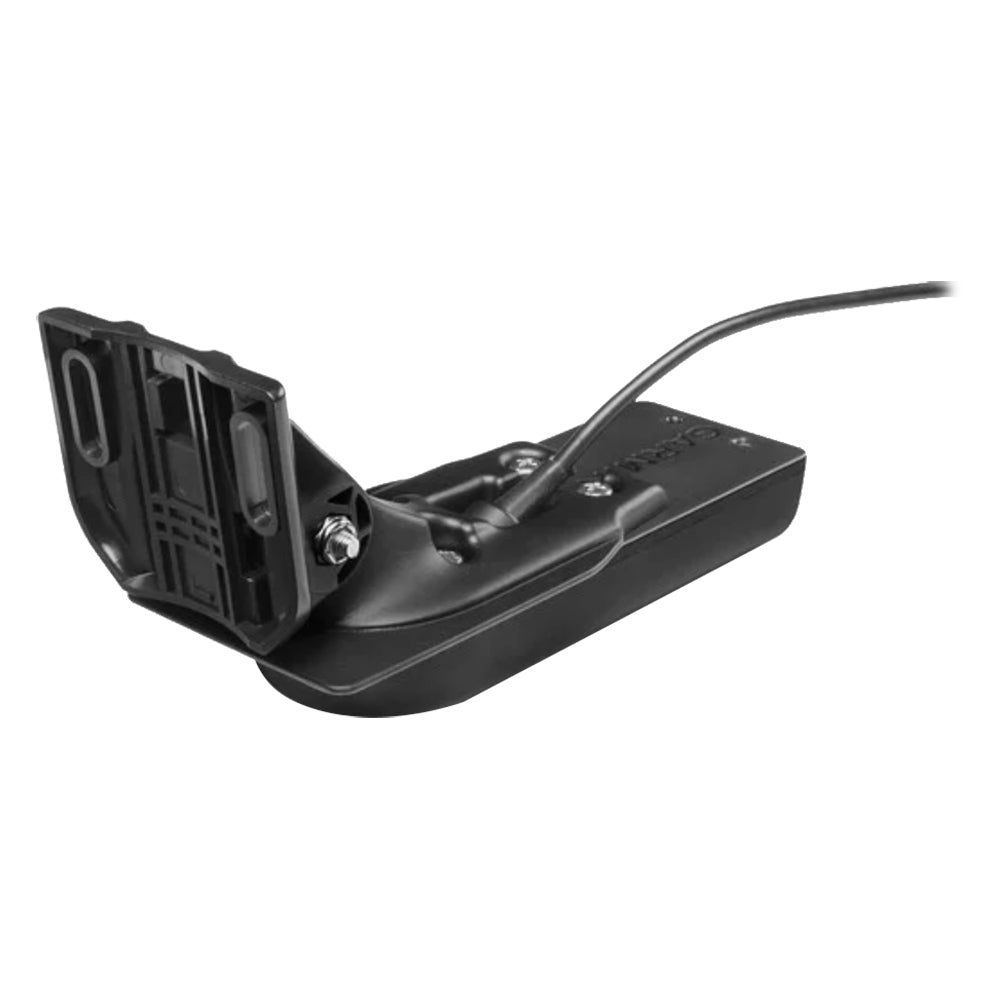

GT22HW-TM Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/CHIRP DownVü - 455/800kHz, 500W, 8-Pin
GT22HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownVü scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP DownVü (455/800 kHz) element has a power rating of 500 W.
GT22HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.
