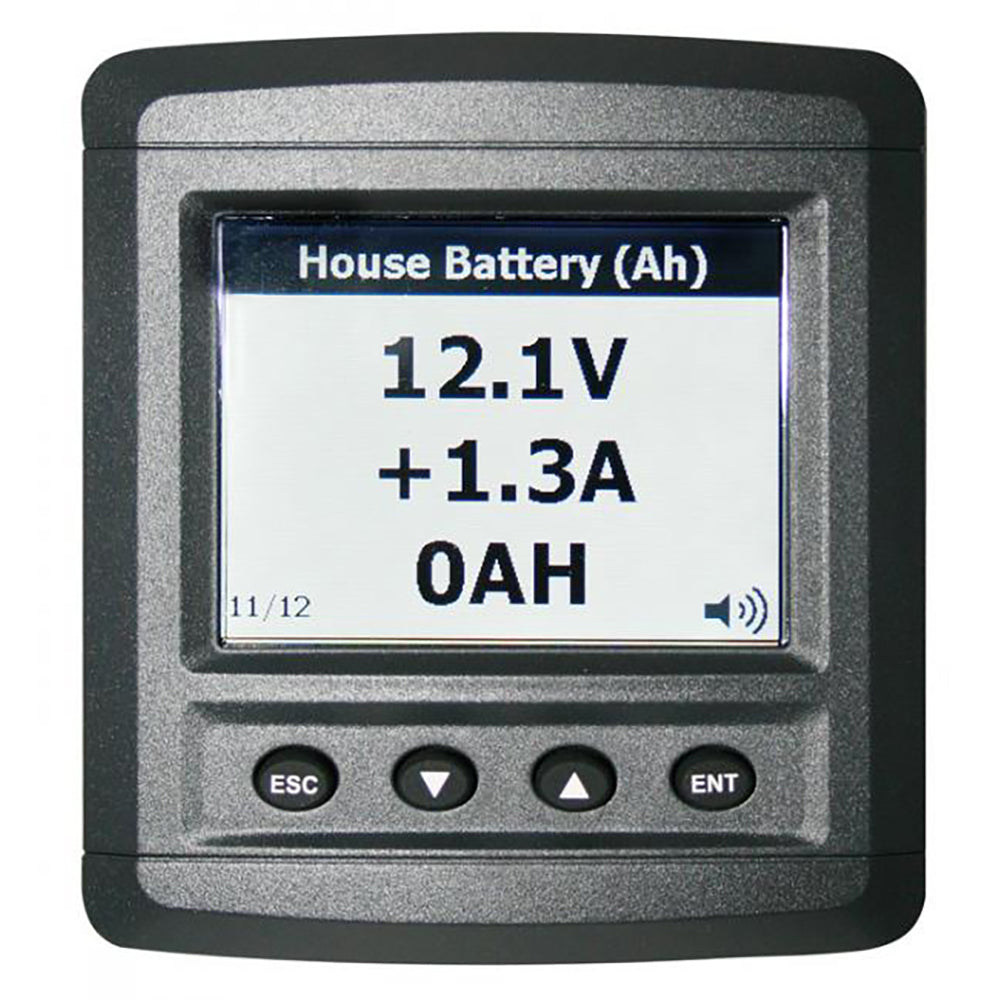

BEP DC Color Systems Monitor (DCSM) - No Shunt

DC Color Systems Monitor (DCSM) - No Shunt

DC Systems Monitor (DCSM) Designed and manufactured by BEP, these state of the art full colour monitors are made to meet the systems monitoring requirements of today's modern vessel and recreational vehicle. Complex and DC electrical installations on board are becoming more common place. Additionally the increase in tank monitoring requirements for fuel, fresh, grey and black water, accurate monitoring of these systems is essential. The DCSM display features clear, extra large type face. This allows for more detailed on-screen information and increased clarity. The screen has back lighting for easy night time viewing.

Features:

• 8 Generic, user configurable inputs
• Programmable high/low audio /visual alarms for volts, amps and tank levels
• Backlit keypad and dimmable screen
• Can be panel or surface mounted
• 2.8" Colour QVGA LCD
• Input voltage 8-32VDC
• Dimensions: Width 90mm x Height 100mm
• Backlit keypad
• Monitors charge/discharge amps for two banks
• Monitors capacity remaining in A/h and %
• Monitors battery condition
• Monitors tank fluid level
• Monitors circuit status

The DC system monitor (ds) is designed and manufactured by BEP. These state-of-the-art full-color monitors are manufactured to meet today's modern system monitoring requirements.
SKU: NVN-76540
MPN: 80-600-0022-00
UPC: 843687003120
